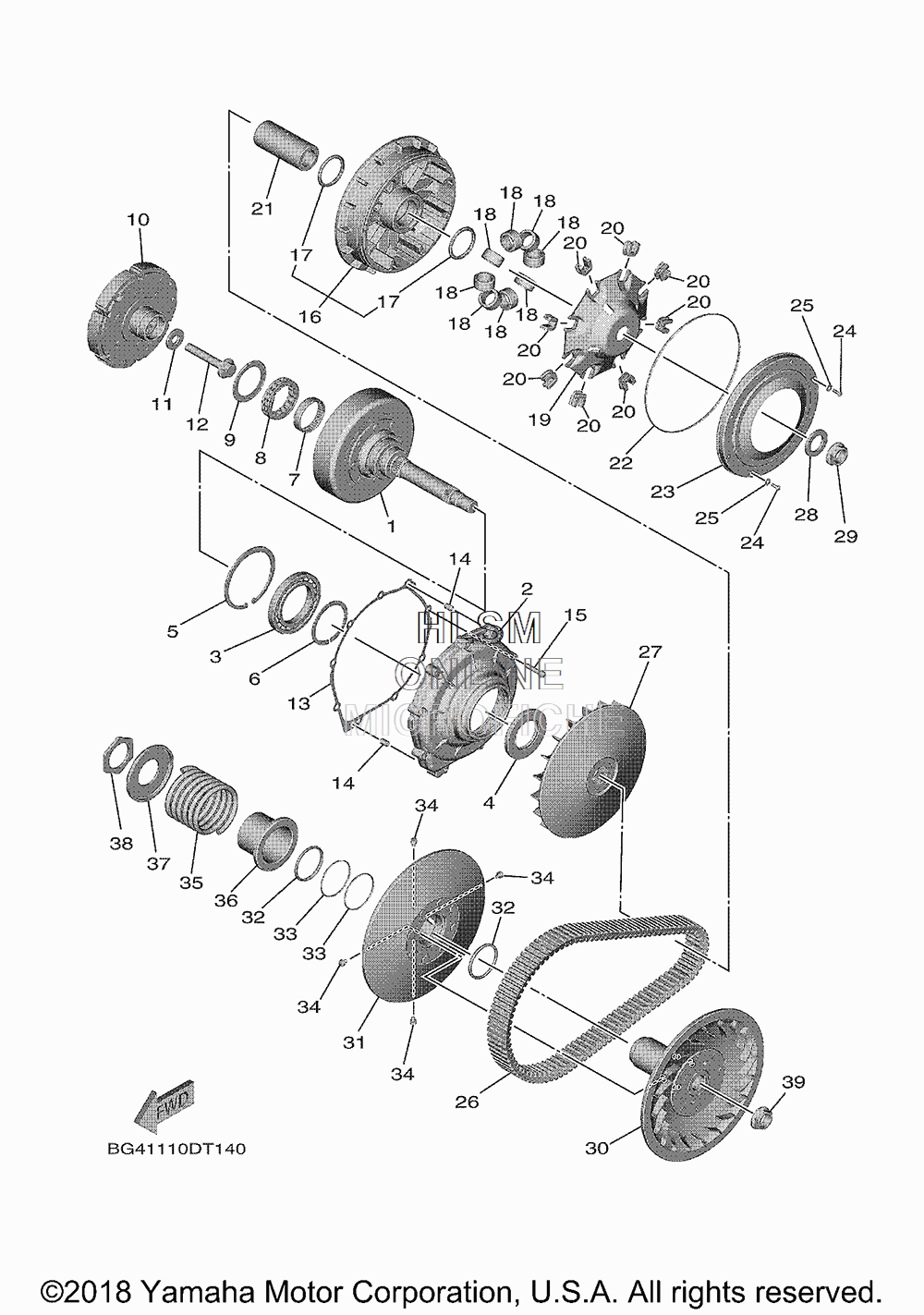

CLUTCH для Yamaha WOLVERINE X2 R-SPEC EPS HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-16611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
2BG4-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
393316-01201-00 BEARINGBEARING
-
493102-45009-00 OIL SEALOIL SEAL
-
599009-95500-00 CIRCLIPCIRCLIP
-
699009-60800-00 CIRCLIPCIRCLIP
-
793317-445B3-00 BEARINGBEARING
-
84SH-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
91HP-16717-00-00 RING, SEALRING, SEAL
-
10BG4-16620-10-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
1190201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1290401-12004-00 BOLT, UNIONBOLT, UNION
-
13BG4-15463-00-00 GASKET, 2GASKET, 2
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1595022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
16BG4-17606-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1793101-41001-00 ...OIL SEAL...OIL SEAL
-
18BG4-17632-00-00 WEIGHTWEIGHT
-
19BG4-17623-00-00 CAMCAM
-
20BG4-17653-00-00 SLIDERSLIDER
-
21BG4-17645-00-00 COLLARCOLLAR
-
2293211-74001-00 O-RINGO-RING
-
23BG4-17639-00-00 STOPPERSTOPPER
-
2490157-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2590201-047R9-00 WASHER, PLATE (M4 WASHER)WASHER, PLATE (M4 WASHER)
-
26BG4-17641-00-00 V-BELTV-BELT
-
27BG4-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2890201-26016-00 WASHER, PLATEWASHER, PLATE
-
2990179-22025-00 NUTNUT
-
30BG4-17660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
31BG4-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
3293101-48004-00 OIL SEALOIL SEAL
-
3393210-50768-00 O-RINGO-RING
-
344CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3590501-850A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
36BG4-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
37BG4-17644-00-00 SEAT, SPRINGSEAT, SPRING
-
3890170-42003-00 NUTNUT
-
3990179-22025-00 NUTNUT
