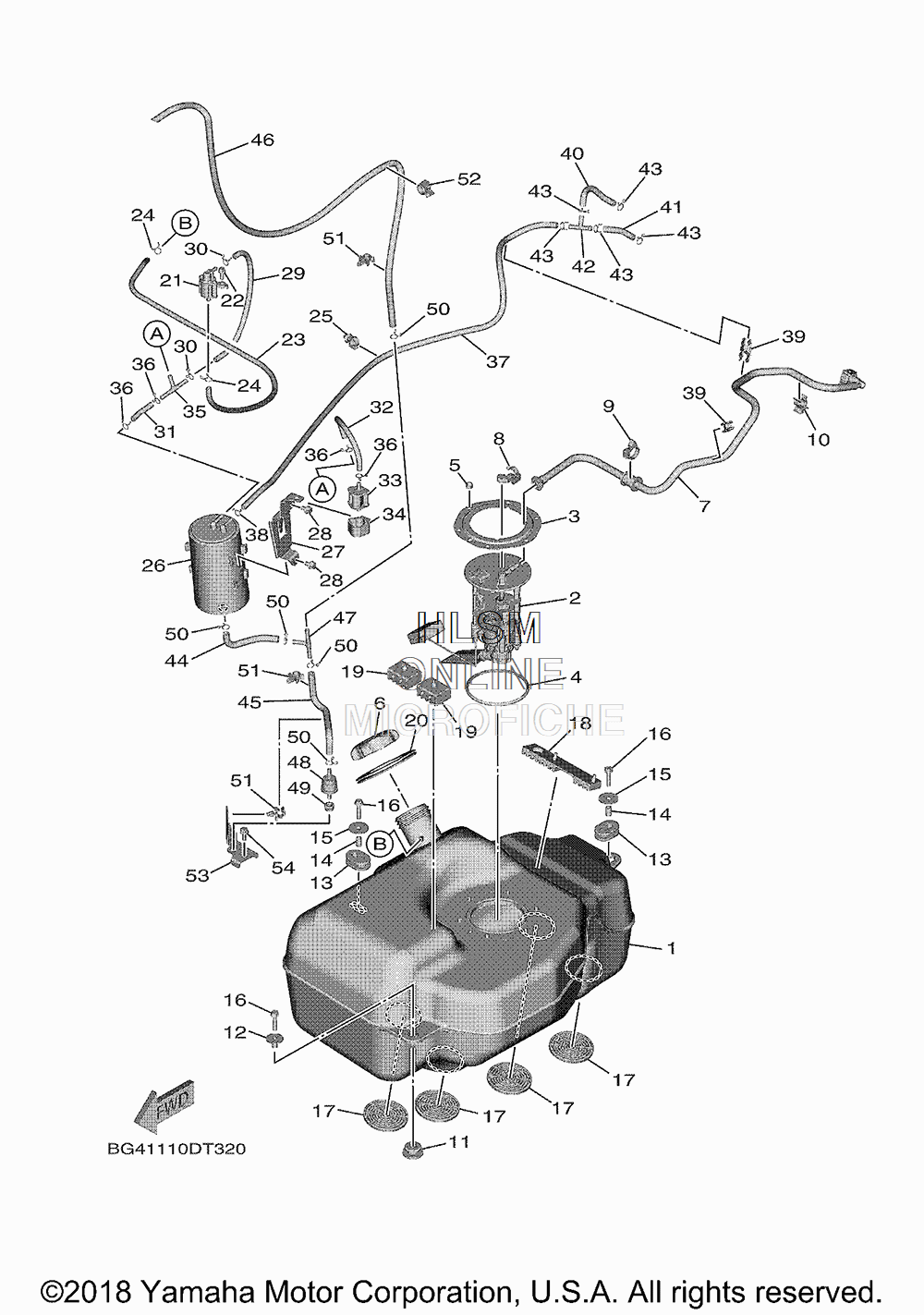

FUEL TANK для Yamaha WOLVERINE X2 R-SPEC EPS HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-F4110-01-00 FUEL TANK COMP.FUEL TANK COMP.
-
23B4-13907-10-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
33B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
41S3-24486-00-00 O-RINGO-RING
-
595302-06800-00 NUT, CROWNNUT, CROWN
-
6BB5-24610-00-00 CAP ASSYCAP ASSY
-
7BG4-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
890464-14004-00 CLAMPCLAMP
-
990464-20010-00 CLAMPCLAMP
-
1090464-12015-00 CLAMPCLAMP
-
1190480-18016-00 GROMMETGROMMET
-
1290387-07021-00 COLLARCOLLAR
-
1390480-01400-00 GROMMETGROMMET
-
1490387-061V1-00 COLLARCOLLAR
-
1590201-065G8-00 WASHER, PLATEWASHER, PLATE
-
1695802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
172MB-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
182HC-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
192MB-F4182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
20BG4-K8272-00-00 COVER, FUEL INLETCOVER, FUEL INLET
-
2128P-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
2295022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2390445-09046-00 HOSE (L810)HOSE (L810)
-
2490467-09006-00 CLIPCLIP
-
2590464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
267CC-F4170-01-00 CANISTER ASSYCANISTER ASSY
-
27BG4-F4190-00-00 CANISTER HOLDER ASSYCANISTER HOLDER ASSY
-
2895802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2990445-09045-00 HOSE (L260)HOSE (L260)
-
3090467-09006-00 CLIPCLIP
-
3190445-09043-00 HOSE (L54)HOSE (L54)
-
3290445-09044-00 HOSE (L200)HOSE (L200)
-
333B4-24380-11-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
343B4-24398-00-00 BAND 1BAND 1
-
3590413-08012-00 WAY 3WAY 3
-
3690467-09006-00 CLIPCLIP
-
3790445-10062-00 HOSE (L1050)HOSE (L1050)
-
3890467-09006-00 CLIPCLIP
-
3990464-11005-00 CLAMPCLAMP
-
4090445-10041-00 HOSE (L110)HOSE (L110)
-
4190445-10061-00 HOSE (L65)HOSE (L65)
-
4290413-07007-00 WAY 3WAY 3
-
4390467-10041-00 CLIPCLIP
-
44BG4-24315-00-00 PIPE 5PIPE 5
-
45BG4-24322-00-00 PIPE 11PIPE 11
-
4690445-11100-00 HOSE (L1010)HOSE (L1010)
-
4790413-08012-00 WAY 3WAY 3
-
48BG4-24362-00-00 VALVE, CHECK 1VALVE, CHECK 1
-
4990480-10003-00 GROMMETGROMMET
-
5090467-10041-00 CLIPCLIP
-
5190464-14M55-00 CLAMPCLAMP
-
5290464-16006-00 CLAMPCLAMP
-
53BG4-F148U-00-00 BRACKET 1BRACKET 1
-
5490105-06831-00 BOLT, FLANGEBOLT, FLANGE
