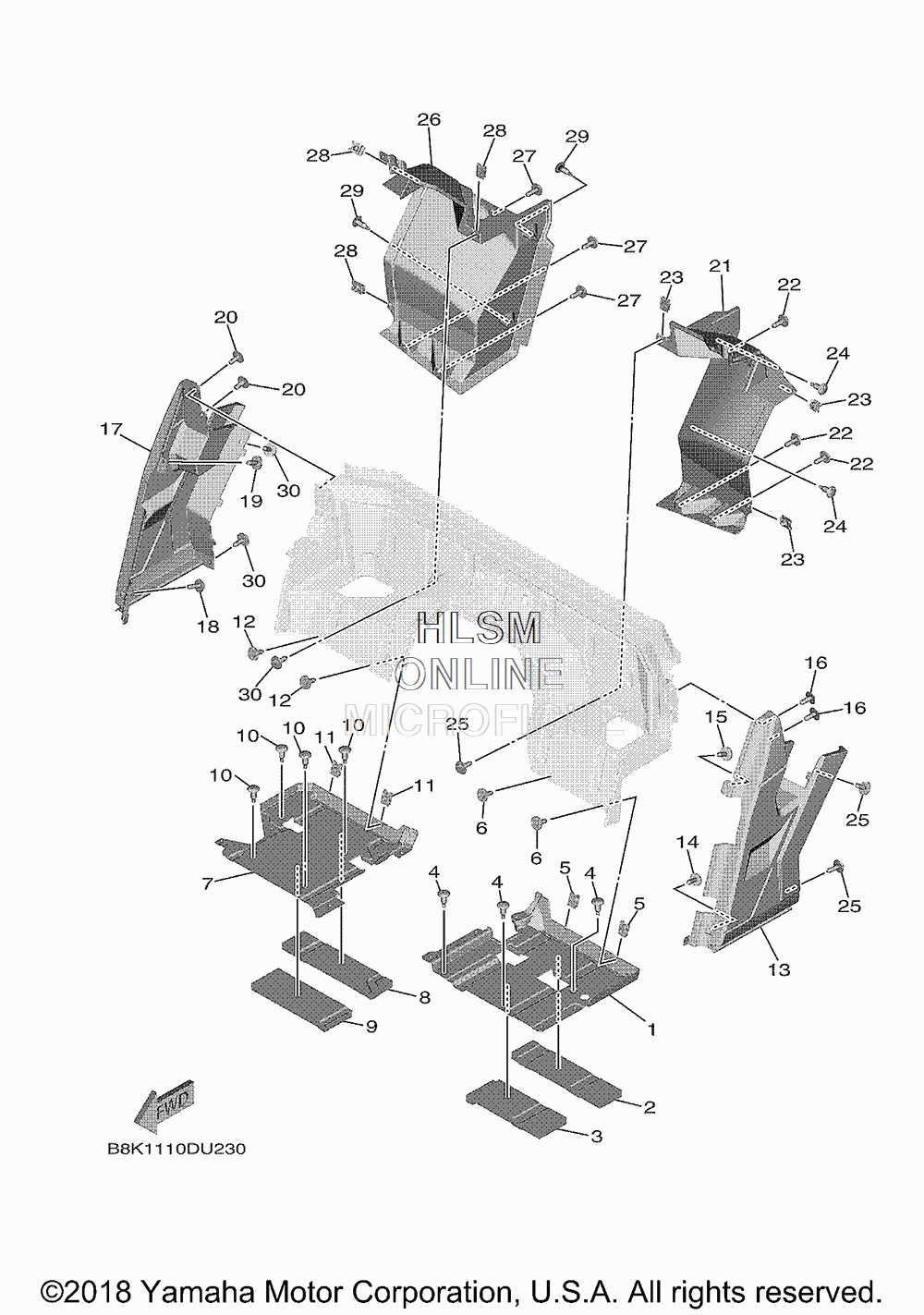

SIDE COVER 2 для Yamaha WOLVERINE X2 R-SPEC EPS HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
1B8K-F84A3-00-00 PLATE, UNDER 1PLATE, UNDER 1
-
2B8K-F174S-00-00 INSULATOR 5INSULATOR 5
-
3B8K-F174T-00-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
-
490269-07805-00 RIVETRIVET
-
590183-060A6-00 NUT, SPRINGNUT, SPRING
-
690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7B8K-F84A4-00-00 PLATE, UNDER 2PLATE, UNDER 2
-
8B8K-F174S-00-00 INSULATOR 5INSULATOR 5
-
9B8K-F174T-00-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
-
1090269-07805-00 RIVETRIVET
-
1190183-060A6-00 NUT, SPRINGNUT, SPRING
-
1290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13B8K-F1741-00-00 COVER, SIDE 4COVER, SIDE 4
-
14JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
17B8K-F171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
18JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1990119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
21B8K-F2327-00-00 MUD GUARD 1MUD GUARD 1
-
22JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
2390183-060A6-00 NUT, SPRINGNUT, SPRING
-
2490269-07805-00 RIVETRIVET
-
2590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26B8K-F2328-00-00 MUD GUARD 2MUD GUARD 2
-
27JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
2890183-060A6-00 NUT, SPRINGNUT, SPRING
-
2990269-07805-00 RIVETRIVET
-
3090119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
