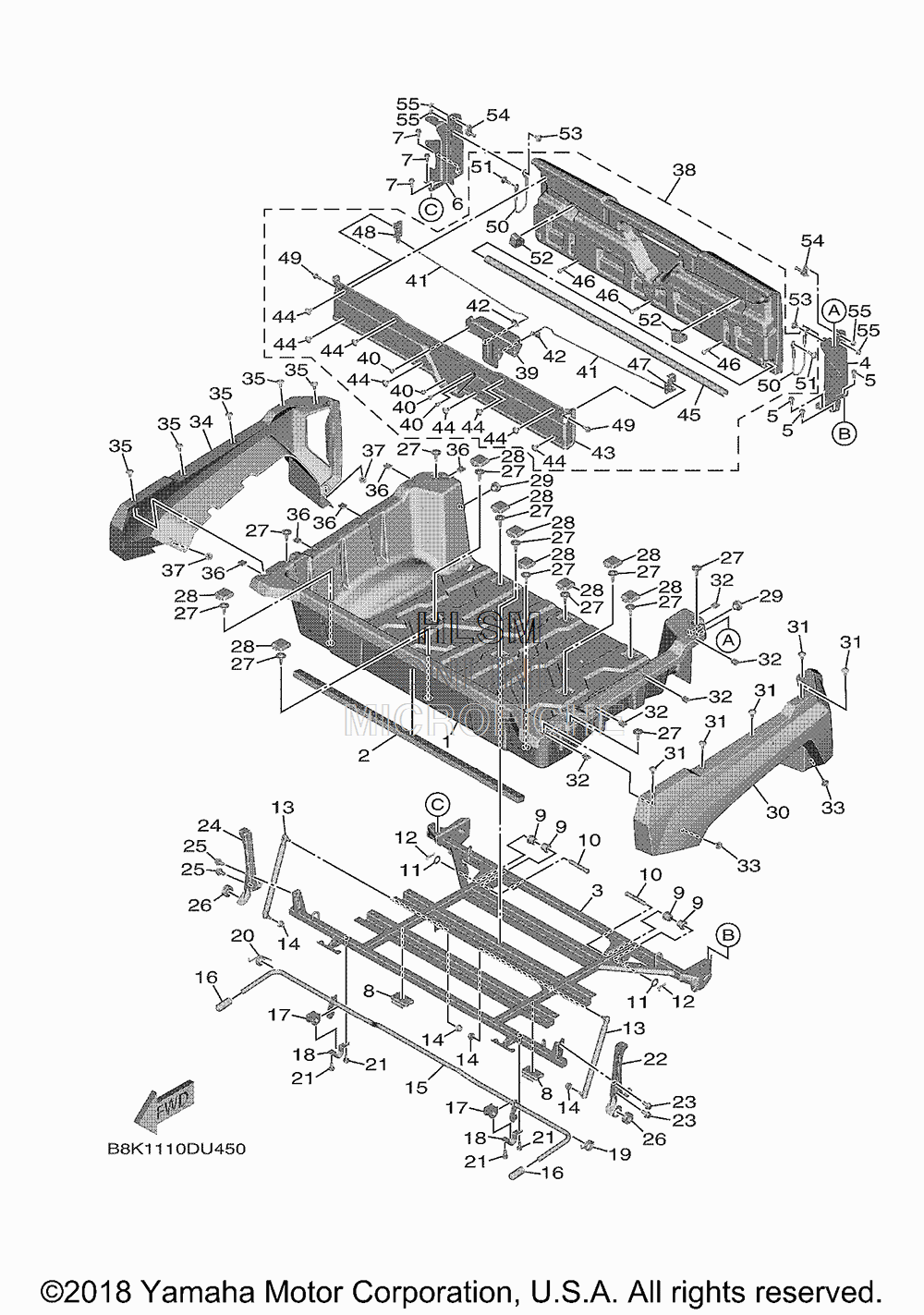

CARRIER для Yamaha WOLVERINE X2 R-SPEC EPS SE (GLOSS BLACK) - 2019 года выпуска
-
№АртикулНазвание
-
1B8K-F1171-00-00 BOXBOX
-
2B8K-F172S-00-00 INSULATOR 3INSULATOR 3
-
3B8K-F845C-00-00 BOX, BASEBOX, BASE
-
4B8K-F8413-00-00 STAY, FRONT GUARD 1STAY, FRONT GUARD 1
-
595812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
6B8K-F8414-00-00 STAY, FRONT GUARD 2STAY, FRONT GUARD 2
-
795812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
8B42-F113B-00-00 DAMPERDAMPER
-
9JW6-F2123-00-00 BUSH 1BUSH 1
-
101XD-F7827-00-00 PIN, TAPERPIN, TAPER
-
1190201-133E5-00 WASHER, PLATEWASHER, PLATE
-
1290468-16191-00 CLIPCLIP
-
13B8K-F8415-00-00 DAMPER 1DAMPER 1
-
1495602-08200-00 NUT, U FLANGENUT, U FLANGE
-
15B8K-K7180-00-00 LATCH ASSYLATCH ASSY
-
16B8K-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
1790480-01819-00 GROMMETGROMMET
-
18B8K-F84AS-00-00 BRKT., TRUNK 1BRKT., TRUNK 1
-
19B8K-F8489-00-00 SPRINGSPRING
-
20B8K-F848A-00-00 SPRING 2SPRING 2
-
2195812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
22B8K-F8476-00-00 BRACKET 3BRACKET 3
-
2395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
24B8K-F8486-00-00 BRACKET 5BRACKET 5
-
2595812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2690480-25801-00 GROMMETGROMMET
-
2790109-068A5-00 BOLTBOLT
-
282MB-F143A-00-00 CAPCAP
-
2990338-10801-00 PLUGPLUG
-
30B8K-K8193-C0-00 PANEL, REAR FENDER 3PANEL, REAR FENDER 3
-
3190110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3290183-060A6-00 NUT, SPRINGNUT, SPRING
-
3390109-06202-00 BOLTBOLT
-
34B8K-K8194-C0-00 PANEL, REAR FENDER 4PANEL, REAR FENDER 4
-
3590110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3690183-060A6-00 NUT, SPRINGNUT, SPRING
-
3790109-06202-00 BOLTBOLT
-
38B8K-K810N-00-00 REAR STORAGE LID COMP.REAR STORAGE LID COMP.
-
39BG4-F389F-01-00 ...HANDLE, LATCH...HANDLE, LATCH
-
4090111-06838-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
41B8K-F8478-00-00 ...ROD...ROD
-
42BG4-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
43B8K-F331G-00-00 ...COVER...COVER
-
4490110-06102-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
45B8K-F463F-00-00 ...HINGE 2...HINGE 2
-
4690149-06846-00 ...SCREW...SCREW
-
47BG4-F16A0-00-00 ...LOCK ASSY...LOCK ASSY
-
48BG4-F16B0-00-00 ...LOCK ASSY 2...LOCK ASSY 2
-
4995812-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
50B8K-K7195-00-00 ...HOLDER, CABLE...HOLDER, CABLE
-
5190109-06171-00 ...BOLT...BOLT
-
52BG4-F8416-00-00 ...DAMPER 2...DAMPER 2
-
5390109-06202-00 BOLTBOLT
-
54BG4-F4441-00-00 BOLT, STUDBOLT, STUD
-
5595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
