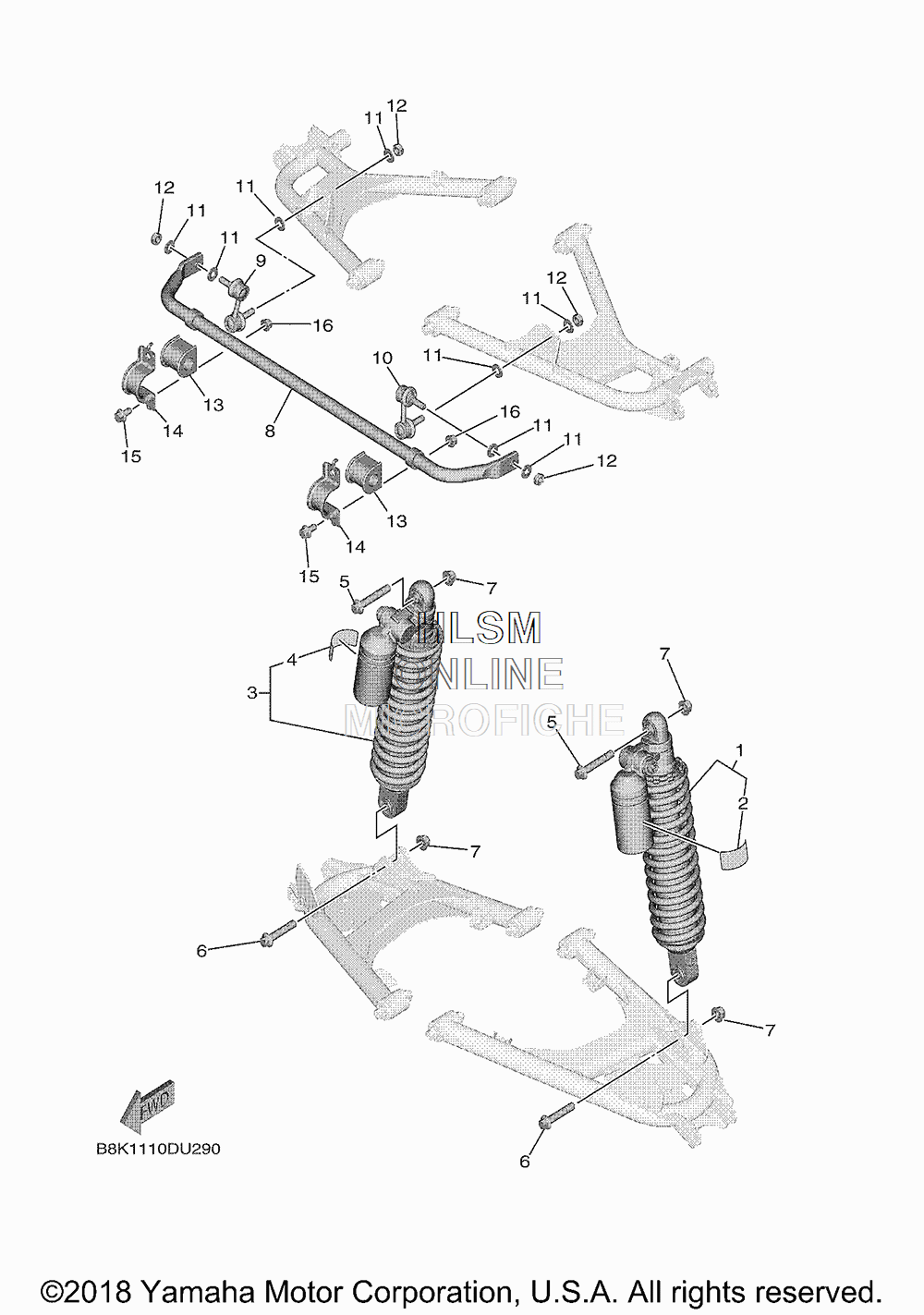

SUSPENSION - REAR SHOCK ABSORBER для Yamaha WOLVERINE X2 R-SPEC EPS SE (GLOSS BLACK) - 2019 года выпуска
-
№АртикулНазвание
-
1B8K-F220T-10-00 REAR SHOCK ABSORBER ASSY 1REAR SHOCK ABSORBER ASSY 1
-
21HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
3B8K-F220U-10-00 REAR SHOCK ABSORBER ASSY 2REAR SHOCK ABSORBER ASSY 2
-
41HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
590105-12056-00 BOLT, FLANGEBOLT, FLANGE
-
690105-12055-00 BOLT, FLANGEBOLT, FLANGE
-
790185-12009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
8BG4-G7491-01-00 BAR, STABILIZERBAR, STABILIZER
-
916B-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
1016B-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
1190201-10035-00 WASHER, PLATEWASHER, PLATE
-
1290185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
131XD-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
141XD-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1595812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
