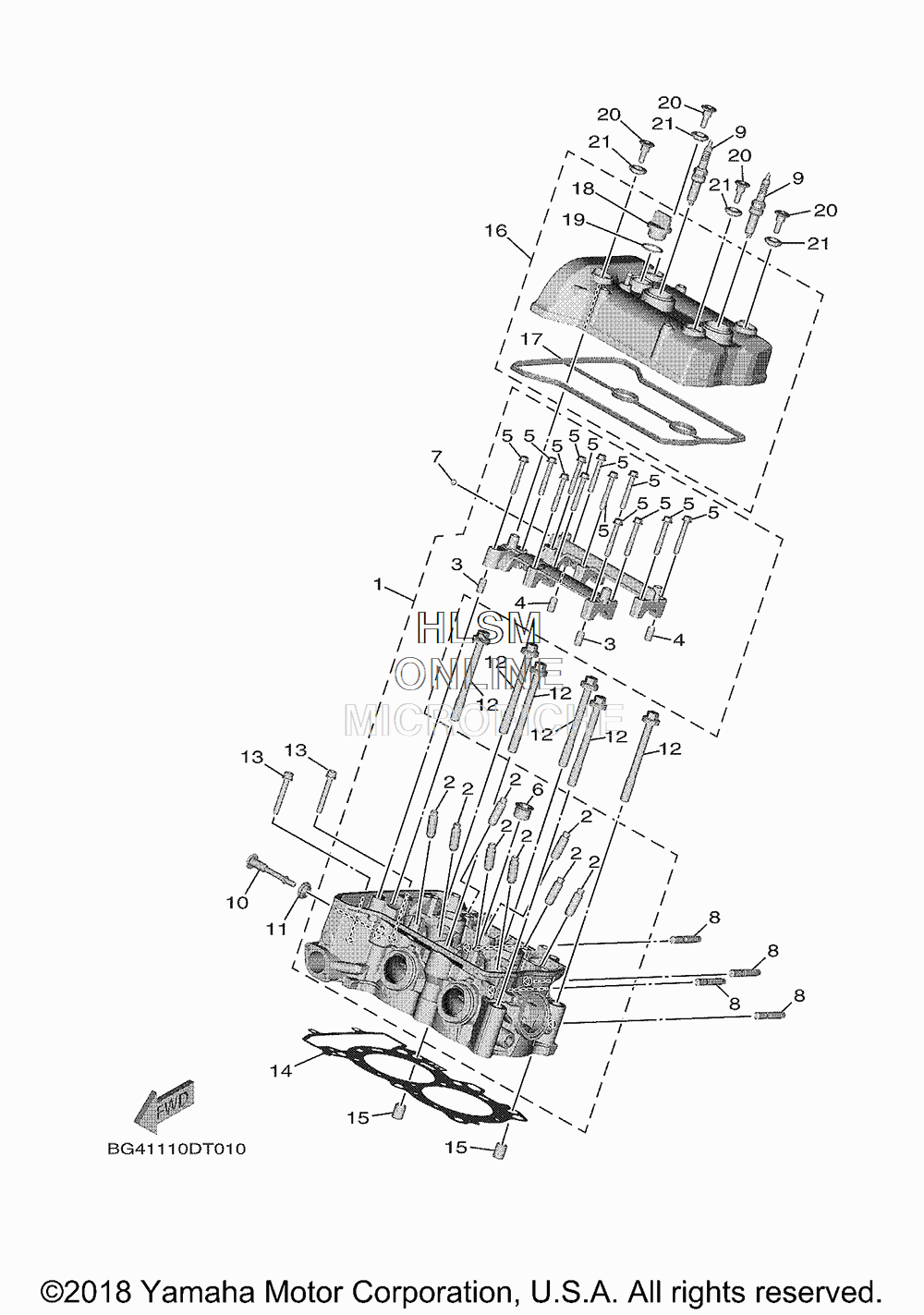

CYLINDER для Yamaha WOLVERINE X2 R-SPEC EPS SE (GLOSS BLACK) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24D9-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
391808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
590105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
690340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
793501-04011-00 BALLBALL
-
890116-08087-00 BOLT, STUDBOLT, STUD
-
9LMA-R8A9S-00-00 PLUG, SPARK (NGK LMAR8A-9)PLUG, SPARK (NGK LMAR8A-9)
-
1090109-06293-00 BOLTBOLT
-
115VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
1290119-10062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390110-06081-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
14BG4-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1599530-12016-00 PIN, DOWELPIN, DOWEL
-
16BG4-11190-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
17BG4-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
183Y1-15363-10-00 ...PLUG, OIL...PLUG, OIL
-
1993210-19123-00 ...O-RING...O-RING
-
2090109-066F0-00 BOLTBOLT
-
215VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
