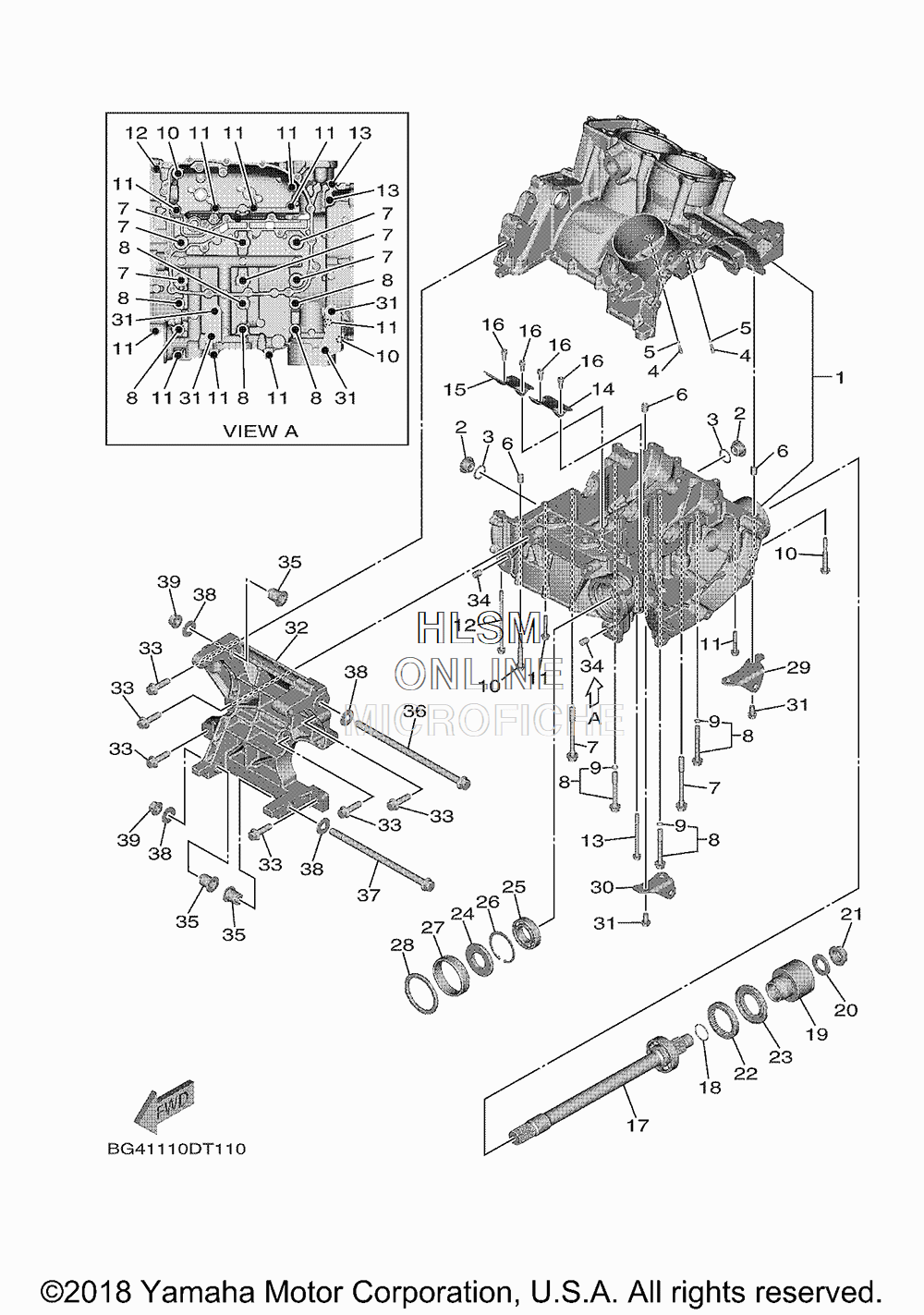

CRANKCASE для Yamaha WOLVERINE X2 - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-15150-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
24H7-15189-00-00 PLUGPLUG
-
393210-207A0-00 O-RINGO-RING
-
45EB-15155-00-00 NOZZLE 3NOZZLE 3
-
593210-04092-00 O-RINGO-RING
-
699530-10014-00 PIN, DOWELPIN, DOWEL
-
790119-09010-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8BG4-15156-00-00 BOLT, CRANKCASE JOURNALBOLT, CRANKCASE JOURNAL
-
993210-07540-00 ...O-RING...O-RING
-
1090109-06100-00 BOLTBOLT
-
1195812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1295812-06120-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-06202-00 BOLT, FLANGEBOLT, FLANGE
-
14BG4-15123-00-00 PLATE, BAFFLE 1PLATE, BAFFLE 1
-
15BG4-15124-00-00 PLATE, BUFFLE 2PLATE, BUFFLE 2
-
1690110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
17BG4-1755A-00-00 MIDDLE DRIVEN SHAFT ASSYMIDDLE DRIVEN SHAFT ASSY
-
1893210-25755-00 O-RINGO-RING
-
19BG4-17832-00-00 COUPLINGCOUPLING
-
2090201-22025-00 WASHER, PLATEWASHER, PLATE
-
2190179-22025-00 NUTNUT
-
2290179-65305-00 NUTNUT
-
2393102-40031-00 OIL SEALOIL SEAL
-
2493102-30018-00 OIL SEALOIL SEAL
-
2593306-00612-00 BEARINGBEARING
-
2699009-55500-00 CIRCLIPCIRCLIP
-
2790387-61001-00 COLLARCOLLAR
-
2893210-63442-00 O-RINGO-RING
-
29BG4-14867-00-00 BRACKETBRACKET
-
30BG4-14868-00-00 BRACKET 2BRACKET 2
-
3195022-08016-00 BOLT, FLANGEBOLT, FLANGE
-
32BG4-17848-00-00 ADAPTERADAPTER
-
3395812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
3499530-10114-00 PIN, DOWELPIN, DOWEL
-
358FG-2149C-00-00 BOLTBOLT
-
3690105-12086-00 BOLT, FLANGEBOLT, FLANGE
-
3790105-12044-00 BOLT, FLANGEBOLT, FLANGE
-
3890201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3995702-12500-00 NUT, FLANGENUT, FLANGE
