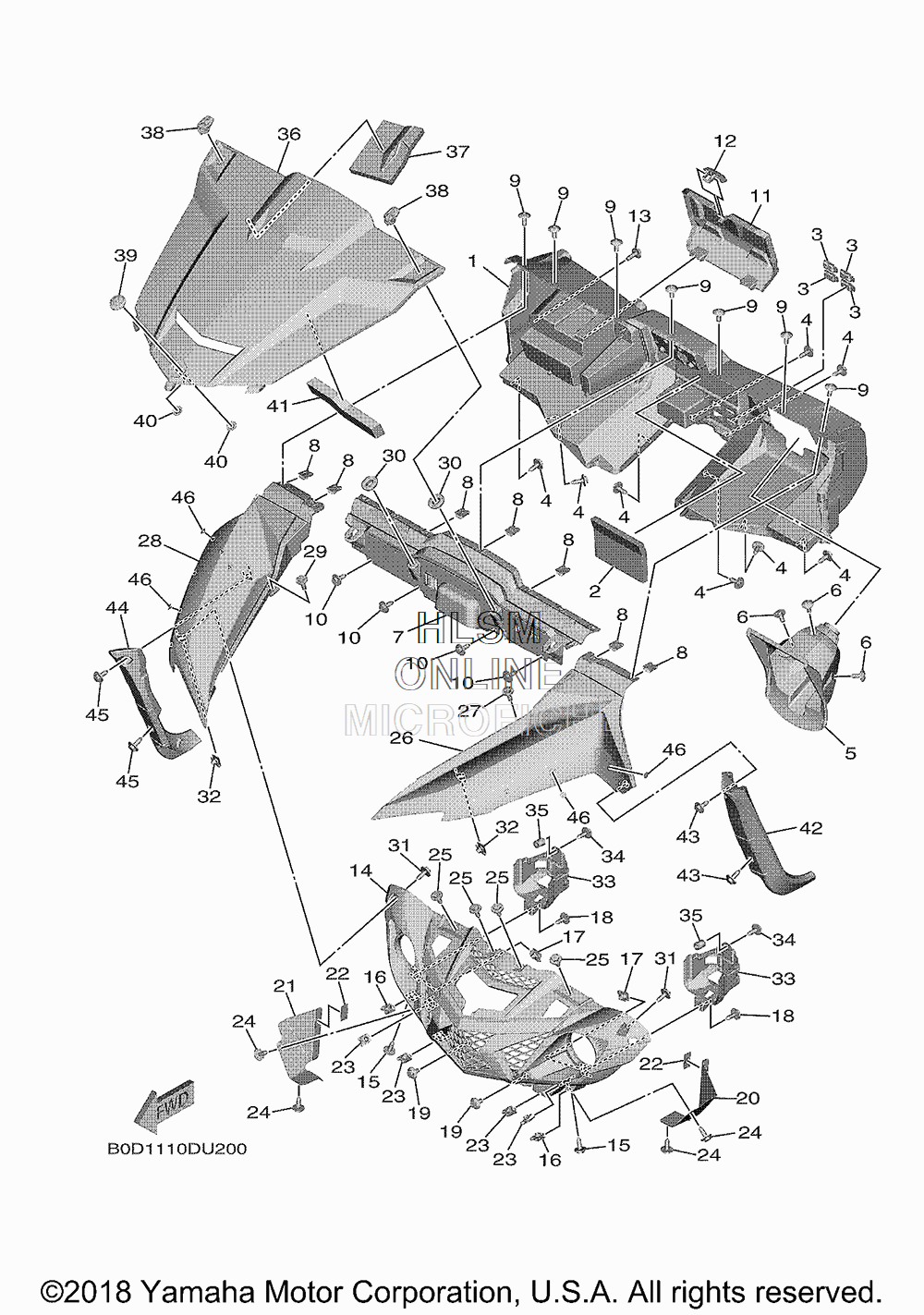

FENDER - FRONT для Yamaha WOLVERINE X2 - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-K7711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
2B8K-F173S-00-00 INSULATOR 4INSULATOR 4
-
3BG4-F312G-00-00 PLUG, HOLEPLUG, HOLE
-
490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5BG4-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
690110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7BG4-F2865-00-00 COVER, FRONTCOVER, FRONT
-
890183-060A6-00 NUT, SPRINGNUT, SPRING
-
990110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11BG4-F160F-00-00 LIDLID
-
12F2X-U2875-00-00 LOCKLOCK
-
13JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
14BG4-F8309-10-00 GRILLE, FRONTGRILLE, FRONT
-
1590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690183-060A6-00 NUT, SPRINGNUT, SPRING
-
1790183-060A6-00 NUT, SPRINGNUT, SPRING
-
1890119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990109-06202-00 BOLTBOLT
-
20BG4-E246A-00-00 COVER 1COVER 1
-
21BG4-E246E-00-00 COVER 2COVER 2
-
225UG-K7588-00-00 DAMPERDAMPER
-
2390183-060A6-00 NUT, SPRINGNUT, SPRING
-
2490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26BG4-F1511-10-00 FENDER, FRONTFENDER, FRONT
-
27JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
28BG4-F1556-10-00 FENDER, FRONT 2FENDER, FRONT 2
-
29JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
3090480-01558-00 GROMMETGROMMET
-
3190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290183-060A6-00 NUT, SPRINGNUT, SPRING
-
332UD-F838E-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
3490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590445-05003-00 HOSEHOSE
-
36BG4-F1982-10-00 HOOD 1HOOD 1
-
37B8K-F173S-00-00 INSULATOR 4INSULATOR 4
-
381XD-2175K-10-00 LEVER, LOCKLEVER, LOCK
-
391XD-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
4090183-06071-00 NUT, SPRINGNUT, SPRING
-
4190520-50004-00 DAMPER, PLATEDAMPER, PLATE
-
42BG4-K8185-01-00 EXTENSION, FRONT FENDER 1EXTENSION, FRONT FENDER 1
-
4390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44BG4-K8186-01-00 EXTENSION, FRONT FENDER 2EXTENSION, FRONT FENDER 2
-
4590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46BG4-F4481-00-00 PLUGPLUG
