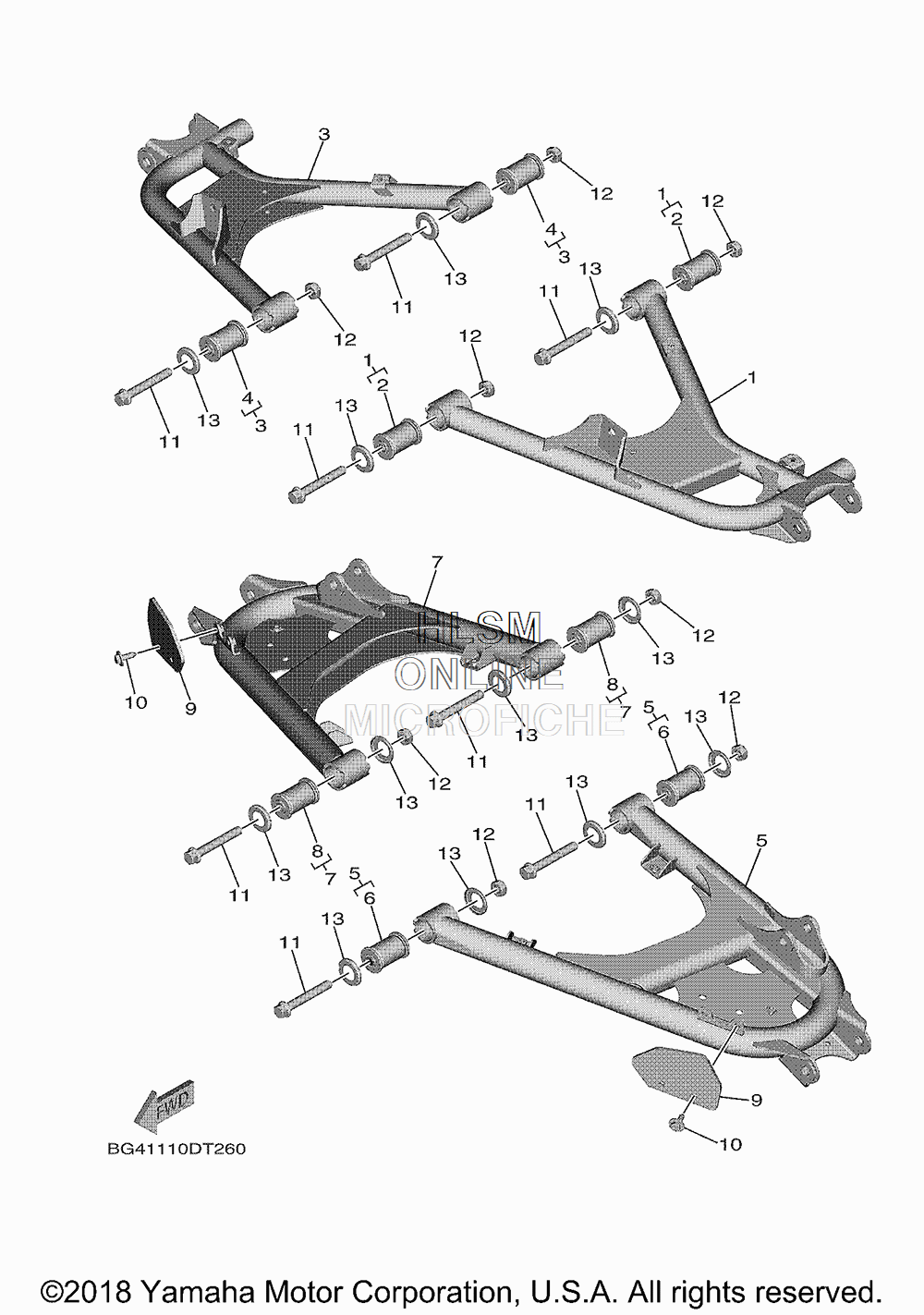

SUSPENSION - REAR ARM для Yamaha WOLVERINE X2 - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-F2104-00-00 REAR UPPER ARM COMP. 1REAR UPPER ARM COMP. 1
-
21HP-F3526-00-00 ...BUSH...BUSH
-
3BG4-F2105-00-00 REAR UPPER ARM COMP. 2REAR UPPER ARM COMP. 2
-
41HP-F3526-00-00 ...BUSH...BUSH
-
5BG4-F2106-01-00 REAR LOWER ARM COMP. 1REAR LOWER ARM COMP. 1
-
61HP-F3526-00-00 ...BUSH...BUSH
-
7BG4-F2107-01-00 REAR LOWER ARM COMP. 2REAR LOWER ARM COMP. 2
-
81HP-F3526-00-00 ...BUSH...BUSH
-
92HC-F2128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1090119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
13BG4-F3517-00-00 COVER, THRUST 1COVER, THRUST 1
