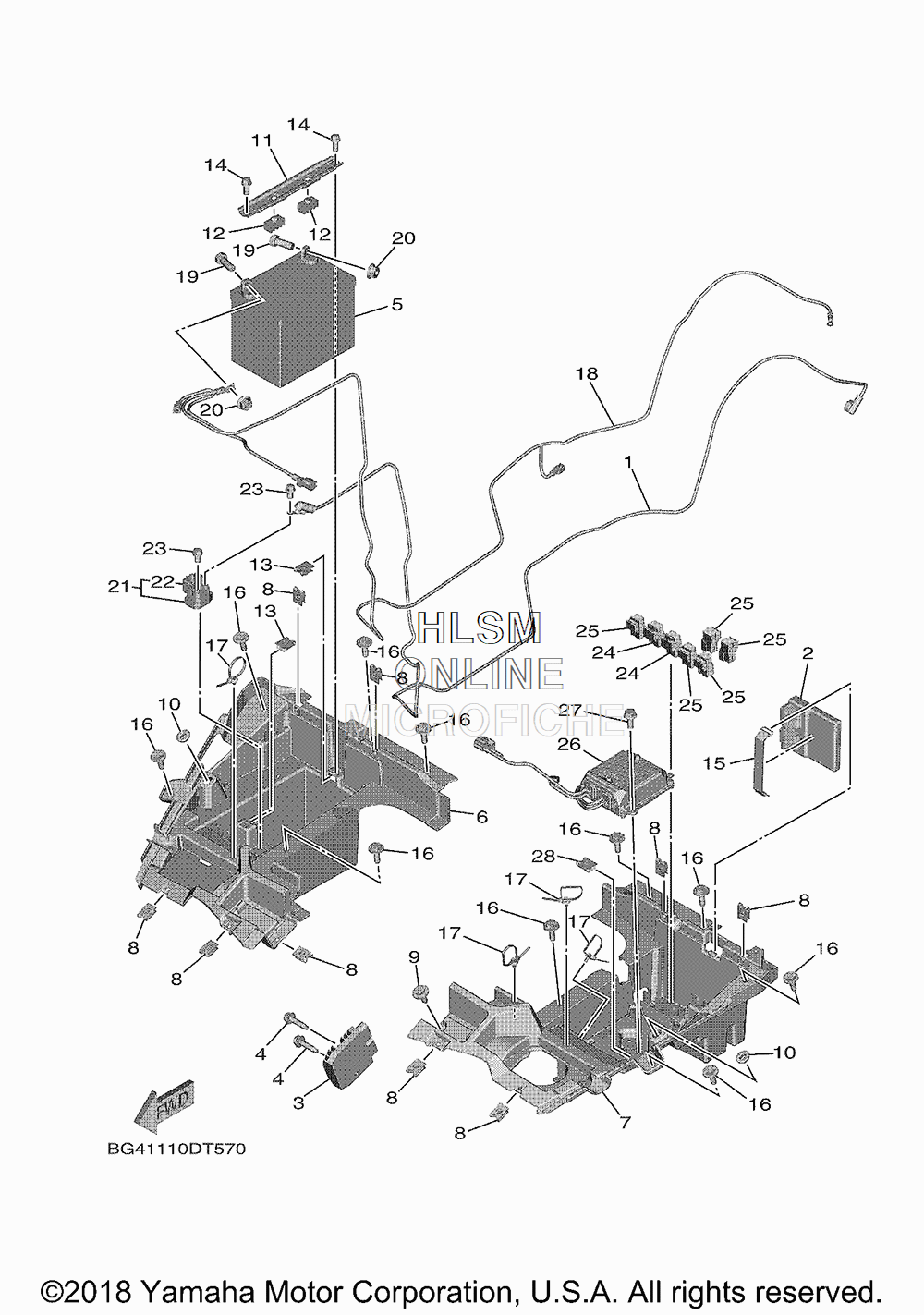

ELECTRICAL 2 для Yamaha WOLVERINE X4 SPECIAL EDITION (GLOSS BLACK) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
2B8K-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
31D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
490105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
55UG-H2100-00-00 BATTERY ASSY (GS U1L-11)BATTERY ASSY (GS U1L-11)
-
6BG4-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
7BG4-H2565-00-00 PANEL, SWITCHPANEL, SWITCH
-
890183-060A6-00 NUT, SPRINGNUT, SPRING
-
990119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090480-01558-00 GROMMETGROMMET
-
112HC-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
123C3-24741-00-00 PAD, SEATPAD, SEAT
-
1390183-060A6-00 NUT, SPRINGNUT, SPRING
-
1495022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
155JJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1690119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
171NS-F1338-00-00 CLAMPCLAMP
-
18BG4-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1997080-08020-00 BOLTBOLT
-
2090179-08015-00 NUTNUT
-
215B4-81940-00-00 STARTER RELAY ASSY (RC19-080A)STARTER RELAY ASSY (RC19-080A)
-
2242X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
2395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
245DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
258DM-81950-11-00 RELAY ASSY (8DM-11)RELAY ASSY (8DM-11)
-
26BG4-859A0-00-00 POWER STRG. CONT. UNIT ASSYPOWER STRG. CONT. UNIT ASSY
-
2795812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2890183-060A6-00 NUT, SPRINGNUT, SPRING
