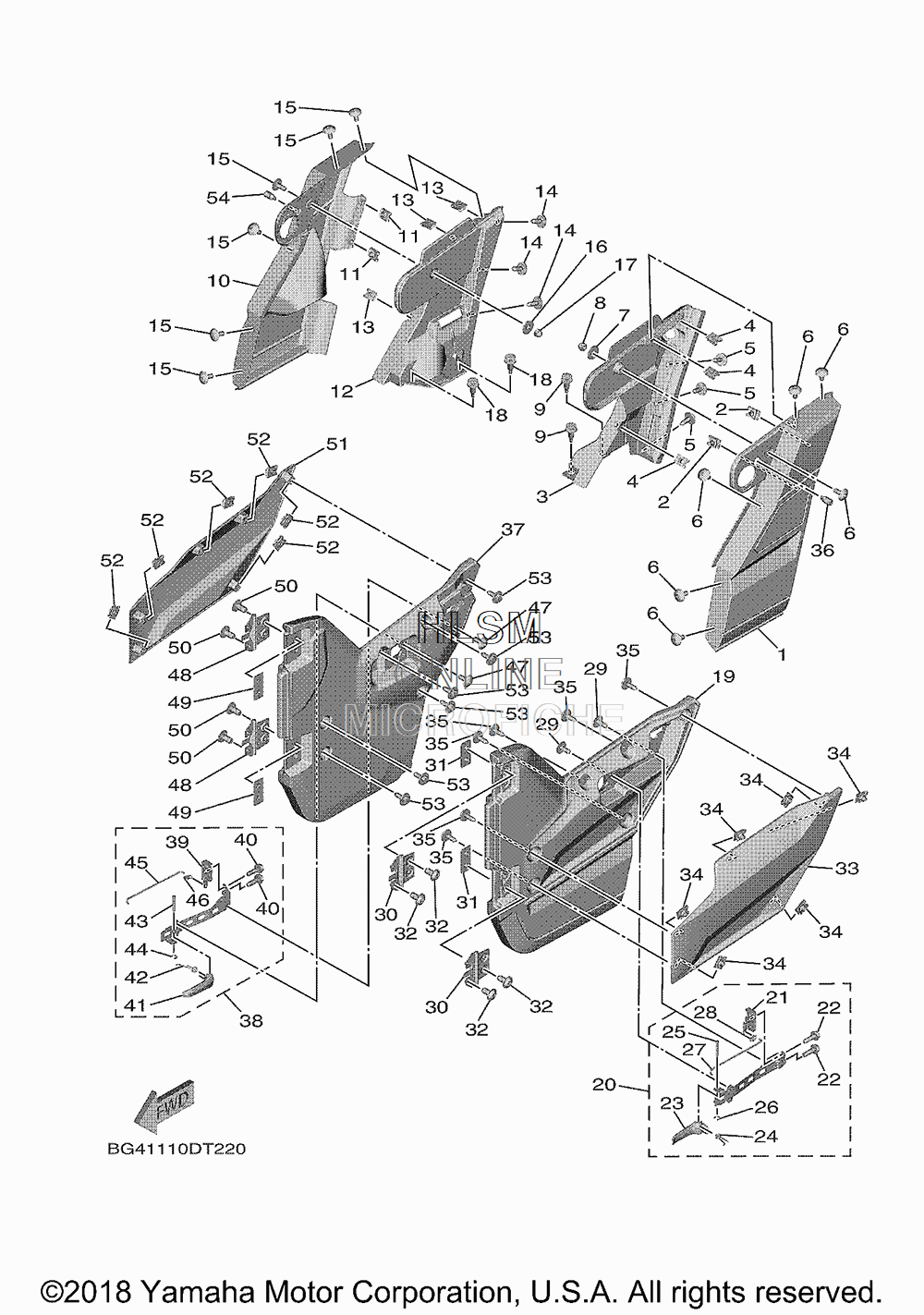

SIDE COVER для Yamaha WOLVERINE X4 SPECIAL EDITION (GLOSS BLACK) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
3BG4-F84A3-01-00 PLATE, UNDER 1PLATE, UNDER 1
-
490183-060A6-00 NUT, SPRINGNUT, SPRING
-
590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790201-06036-00 WASHER, PLATEWASHER, PLATE
-
895302-06800-00 NUT, CROWNNUT, CROWN
-
990269-07805-00 RIVETRIVET
-
10BG4-F1731-00-00 COVER, SIDE 3COVER, SIDE 3
-
1190183-060A6-00 NUT, SPRINGNUT, SPRING
-
12BG4-F84A4-00-00 PLATE, UNDER 2PLATE, UNDER 2
-
1390183-060A6-00 NUT, SPRINGNUT, SPRING
-
1490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
1795302-06800-00 NUT, CROWNNUT, CROWN
-
1890269-07805-00 RIVETRIVET
-
19BG4-K8557-00-00 PNL., DOOR FRONT (LEFT HAND)PNL., DOOR FRONT (LEFT HAND)
-
202HC-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
212HC-F16A0-00-00 ...LOCK ASSY...LOCK ASSY
-
2295812-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
232HC-F17N1-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
242HC-F1742-00-00 ...SPRING...SPRING
-
2590249-05801-00 ...PIN...PIN
-
2699002-04600-00 ...CIRCLIP...CIRCLIP
-
272HC-F7247-00-00 ...ROD 1...ROD 1
-
282HC-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
2990110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
30BG4-F4772-00-00 HINGE ASSYHINGE ASSY
-
31BG4-F1736-00-00 NUT,PLATENUT,PLATE
-
3290149-08805-00 SCREWSCREW
-
33BG4-K817H-00-00 TRIM, SIDE PANEL 1TRIM, SIDE PANEL 1
-
3490183-060A6-00 NUT, SPRINGNUT, SPRING
-
3590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
362MB-F8378-00-00 PADPAD
-
37BG4-K8558-00-00 PNL., DOOR FRONT (RIGHT HAND)PNL., DOOR FRONT (RIGHT HAND)
-
382HC-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
392HC-F16B0-00-00 ...LOCK ASSY 2...LOCK ASSY 2
-
4095812-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
412HC-F17N1-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
422HC-F1742-00-00 ...SPRING...SPRING
-
4390249-05801-00 ...PIN...PIN
-
4499002-04600-00 ...CIRCLIP...CIRCLIP
-
452HC-F7248-00-00 ...ROD 2...ROD 2
-
462HC-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
4790110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
48BG4-F4772-00-00 HINGE ASSYHINGE ASSY
-
49BG4-F1736-00-00 NUT,PLATENUT,PLATE
-
5090149-08805-00 SCREWSCREW
-
51BG4-K817J-00-00 TRIM, SIDE PANEL 2TRIM, SIDE PANEL 2
-
5290183-060A6-00 NUT, SPRINGNUT, SPRING
-
5390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
542MB-F8378-00-00 PADPAD
