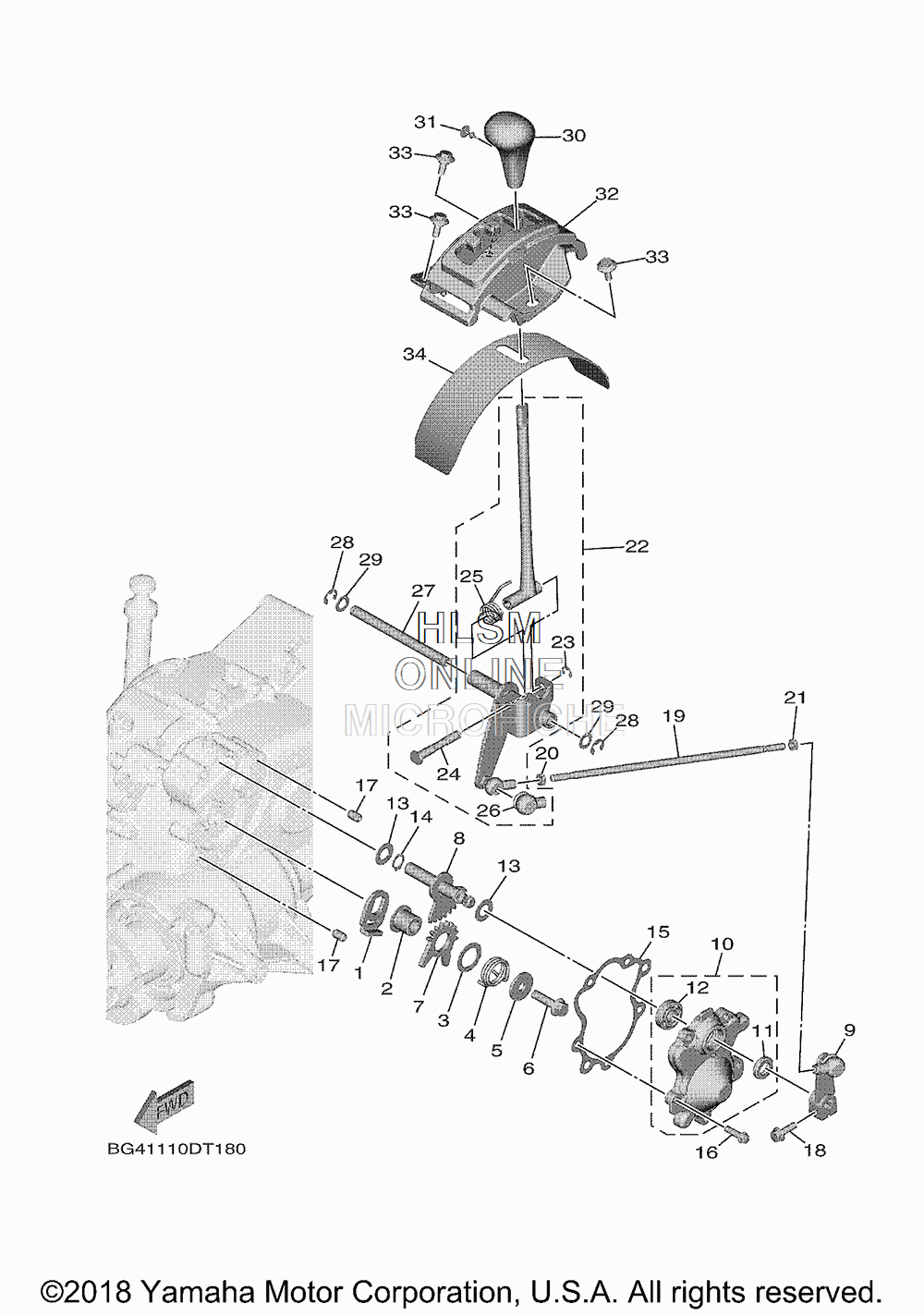

SHIFT SHAFT для Yamaha WOLVERINE X4 SPECIAL EDITION (GLOSS BLACK) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-18198-00-00 LEVERLEVER
-
290387-13007-00 COLLARCOLLAR
-
390201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
490508-32143-00 SPRING, TORSIONSPRING, TORSION
-
590201-085G6-00 WASHER, PLATEWASHER, PLATE
-
695822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7BG4-18191-00-00 LEVERLEVER
-
8BG4-18103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
9BG4-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
10BG4-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
1193102-12106-00 ...OIL SEAL (SD 12-22-5 HS)...OIL SEAL (SD 12-22-5 HS)
-
1293306-00106-00 ...BEARING...BEARING
-
1390201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1499009-12400-00 CIRCLIPCIRCLIP
-
15BG4-18146-00-00 GASKETGASKET
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1799530-08012-00 PIN, DOWELPIN, DOWEL
-
1895812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
19BG4-18115-00-00 ROD, SHIFTROD, SHIFT
-
2090170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2195312-06700-00 NUTNUT
-
22BG4-E8150-00-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
2399002-06600-00 ...CIRCLIP...CIRCLIP
-
241HP-E8125-00-00 ...SHAFT, SHIFT...SHAFT, SHIFT
-
251HP-E8196-00-00 ...SPRING, RETURN...SPRING, RETURN
-
262H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
27BG4-18173-00-00 PIN, SHIFTPIN, SHIFT
-
2899001-08600-00 CIRCLIPCIRCLIP
-
2990201-10119-00 WASHER, PLATEWASHER, PLATE
-
3028P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
3190269-05055-00 RIVETRIVET
-
32BG4-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
3390109-06172-00 BOLTBOLT
-
341HP-E8154-00-00 COVER, DUSTCOVER, DUST
