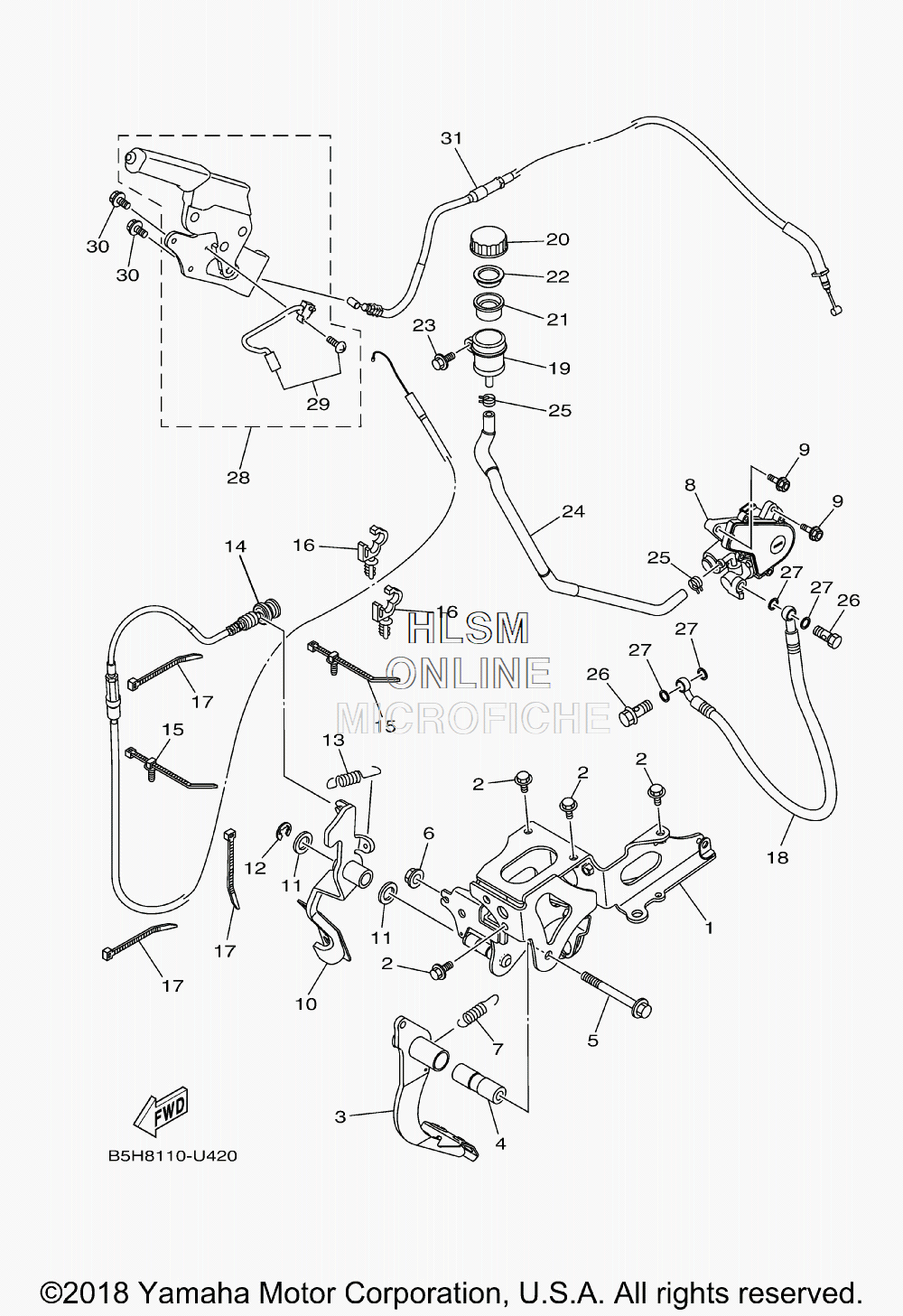

BRAKE - BRAKE SYSTEM для Yamaha YXZ1000R EPS SS - 2019 года выпуска
-
№АртикулНазвание
-
1B57-F2548-01-00 BRACKET, PEDAL SUPPORTBRACKET, PEDAL SUPPORT
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
32HC-F7200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
490387-10843-00 COLLARCOLLAR
-
595812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
695602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
790506-23022-00 SPRING, TENSIONSPRING, TENSION
-
8B57-82460-00-00 CLUTCH ACTUATOR ASSYCLUTCH ACTUATOR ASSY
-
990105-08211-00 BOLT, FLANGEBOLT, FLANGE
-
102HC-F7801-01-00 ACCEL PEDAL ASSYACCEL PEDAL ASSY
-
1190201-15018-00 WASHER, PLATEWASHER, PLATE
-
1293430-12008-00 CIRCLIPCIRCLIP
-
1390506-23022-00 SPRING, TENSIONSPRING, TENSION
-
142HC-26311-12-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
155B4-F1338-00-00 CLAMPCLAMP
-
1690464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
1790464-48800-00 CLAMPCLAMP
-
18B57-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
195JJ-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
203XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
212VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
222VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
2390119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24B57-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2590467-12191-00 CLIPCLIP
-
2690401-10172-00 BOLT, UNIONBOLT, UNION
-
2790201-10118-00 WASHER, PLATEWASHER, PLATE
-
281XD-F5690-01-00 PARKING LEVER ASSYPARKING LEVER ASSY
-
295UG-H251S-00-00 ...SWITCH COMP....SWITCH COMP.
-
3095812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
312HC-26341-01-00 WIRE, BRAKE 1WIRE, BRAKE 1
