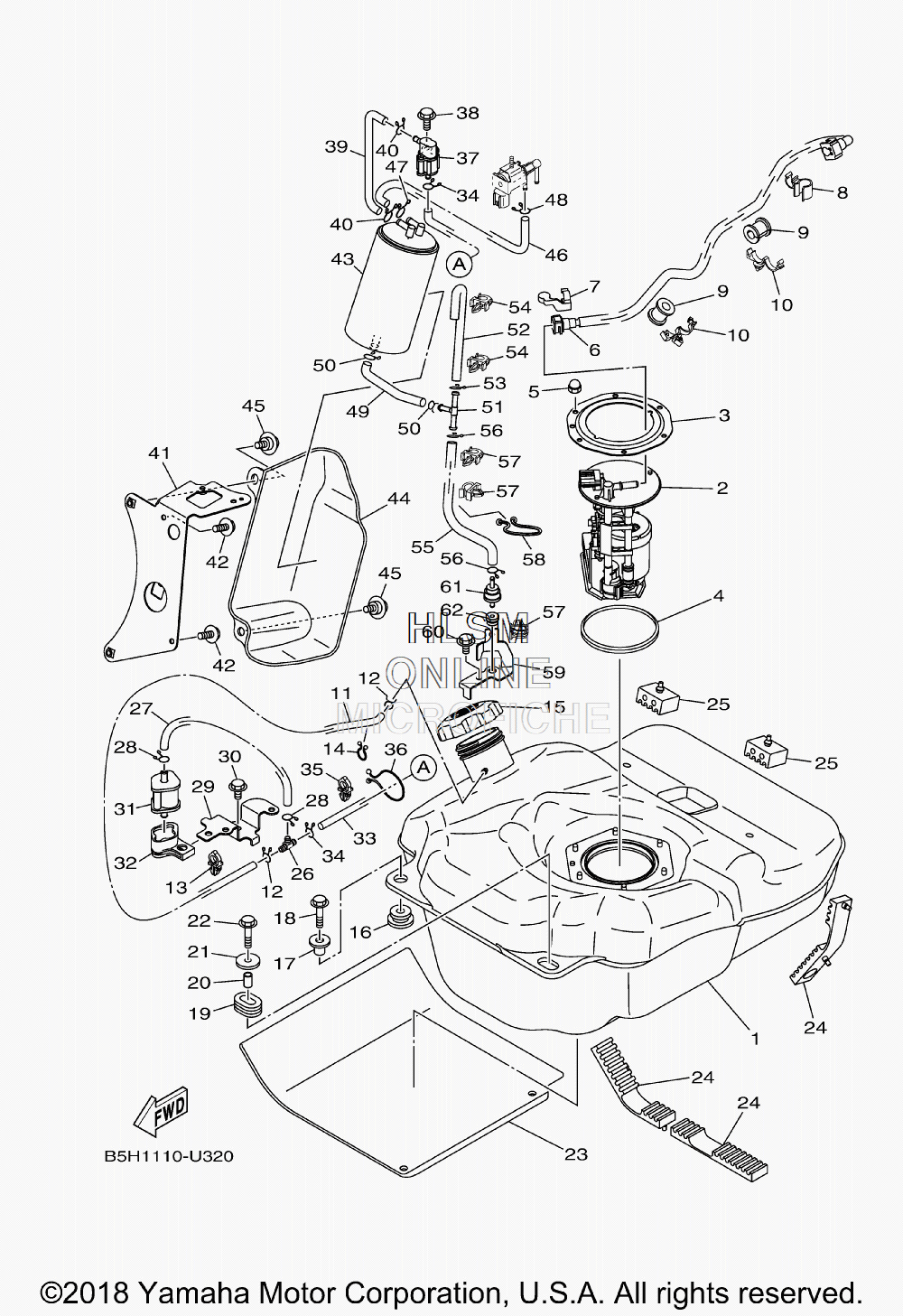

FUEL TANK для Yamaha YXZ1000R EPS SS - 2019 года выпуска
-
№АртикулНазвание
-
12HC-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
2B16-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
33B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
41S3-24486-00-00 O-RINGO-RING
-
595302-06800-00 NUT, CROWNNUT, CROWN
-
62HC-13971-01-00 PIPE, FUEL 1PIPE, FUEL 1
-
790464-14004-00 CLAMPCLAMP
-
890464-15007-00 CLAMPCLAMP
-
990480-20543-00 GROMMETGROMMET
-
1090464-20010-00 CLAMPCLAMP
-
11B5H-F41B5-00-00 TUBE 2TUBE 2
-
1290467-09006-00 CLIPCLIP
-
1390464-10833-00 CLAMPCLAMP
-
1490464-12M48-00 CLAMPCLAMP
-
152P5-24610-00-00 CAP ASSYCAP ASSY
-
1690480-18016-00 GROMMETGROMMET
-
1790387-075H4-00 COLLARCOLLAR
-
1895802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1990480-01400-00 GROMMETGROMMET
-
2090387-061V1-00 COLLARCOLLAR
-
2190201-065G8-00 WASHER, PLATEWASHER, PLATE
-
2295802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
232HC-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
242HC-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
252MB-F4182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
2690413-06031-00 WAY 3WAY 3
-
2790445-09028-00 HOSEHOSE
-
2890467-09006-00 CLIPCLIP
-
29B5H-F8468-00-00 BRKT. 7BRKT. 7
-
3095802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
313B4-24380-11-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
323B4-24398-00-00 BAND 1BAND 1
-
3390445-09837-00 HOSE (L1220)HOSE (L1220)
-
3490467-09006-00 CLIPCLIP
-
3590464-10833-00 CLAMPCLAMP
-
3690464-37257-00 CLAMPCLAMP
-
3728P-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
3895802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
39B5H-F247A-00-00 HOSE 1HOSE 1
-
4090467-09006-00 CLIPCLIP
-
41B5H-F4190-02-00 CANISTER HOLDER ASSYCANISTER HOLDER ASSY
-
4295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
437CC-F4170-01-00 CANISTER ASSYCANISTER ASSY
-
44B5H-F419E-00-00 COVER, CANISTERCOVER, CANISTER
-
4590109-06202-00 BOLTBOLT
-
46B5H-F247C-00-00 HOSE 3HOSE 3
-
4790467-09006-00 CLIPCLIP
-
4890467-10041-00 CLIPCLIP
-
4990445-11052-00 HOSE (L170)HOSE (L170)
-
5090467-10041-00 CLIPCLIP
-
5190413-08012-00 WAY 3WAY 3
-
52B5H-F247D-00-00 HOSE 4HOSE 4
-
5390467-10041-00 CLIPCLIP
-
5490464-14M55-00 CLAMPCLAMP
-
5590445-11053-00 HOSE (L400)HOSE (L400)
-
5690467-10041-00 CLIPCLIP
-
5790464-14M55-00 CLAMPCLAMP
-
5890464-44109-00 CLAMPCLAMP
-
59B5H-F2957-00-00 BRACKET, HOSEBRACKET, HOSE
-
6095802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
61BG4-24362-00-00 VALVE, CHECK 1VALVE, CHECK 1
-
6290480-10003-00 GROMMETGROMMET
