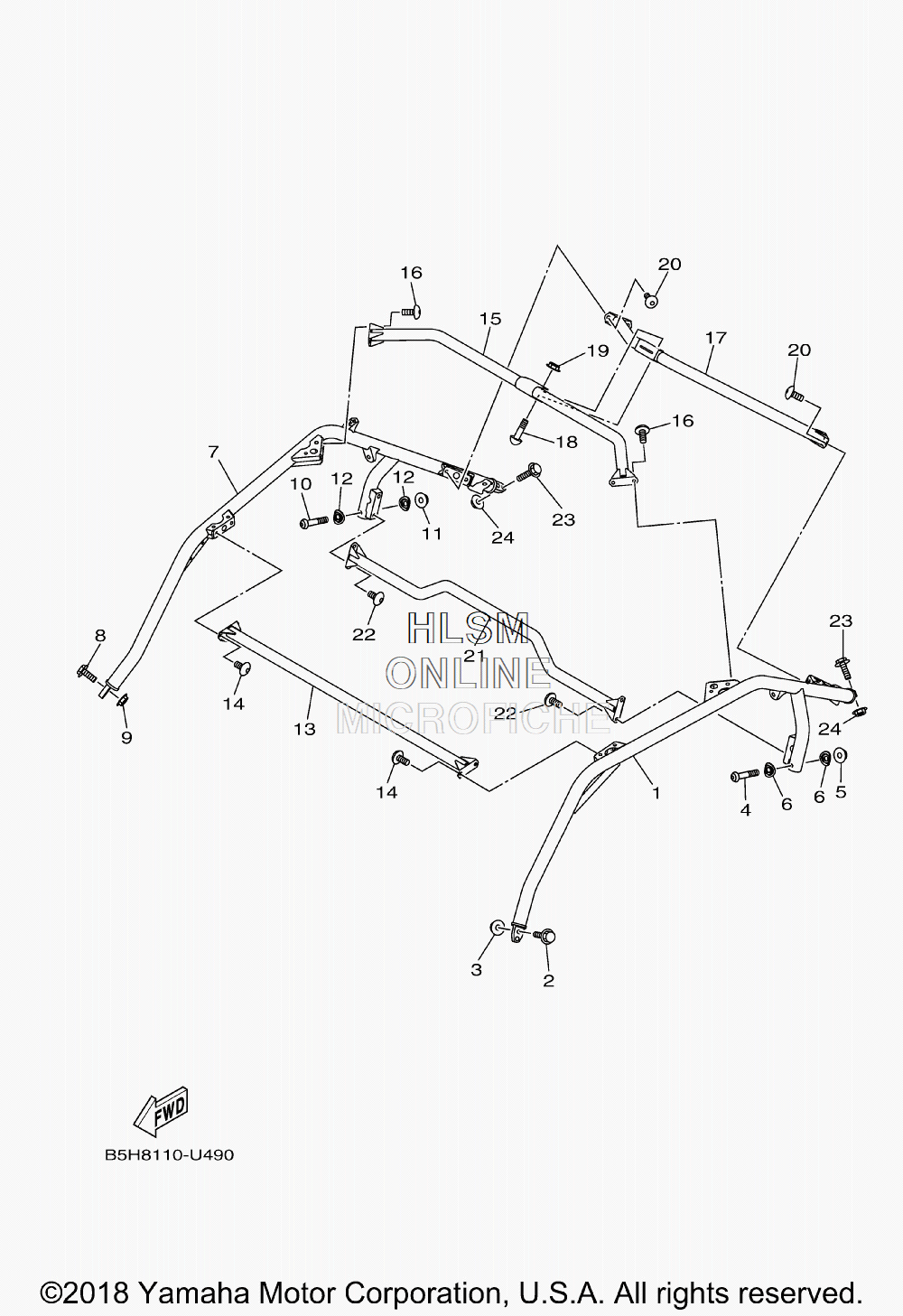

GUARD - ROOF для Yamaha YXZ1000R EPS SS - 2019 года выпуска
-
№АртикулНазвание
-
1B5H-K831A-00-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
492012-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
65UG-K7526-00-00 WASHER 2WASHER 2
-
7B5H-K831E-00-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1092012-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125UG-K7526-00-00 WASHER 2WASHER 2
-
13B5H-K8392-00-00 MEMBER, ROOF FRAMEMEMBER, ROOF FRAME
-
1490111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
15B5H-K830A-00-00 ROOF SUPPORT ASSY 1ROOF SUPPORT ASSY 1
-
1690111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
17B5H-K830B-00-00 ROOF SUPPORT ASSY 2ROOF SUPPORT ASSY 2
-
1892012-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
21B5H-K830C-00-00 ROOF SUPPORT ASSY 3ROOF SUPPORT ASSY 3
-
2290111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
