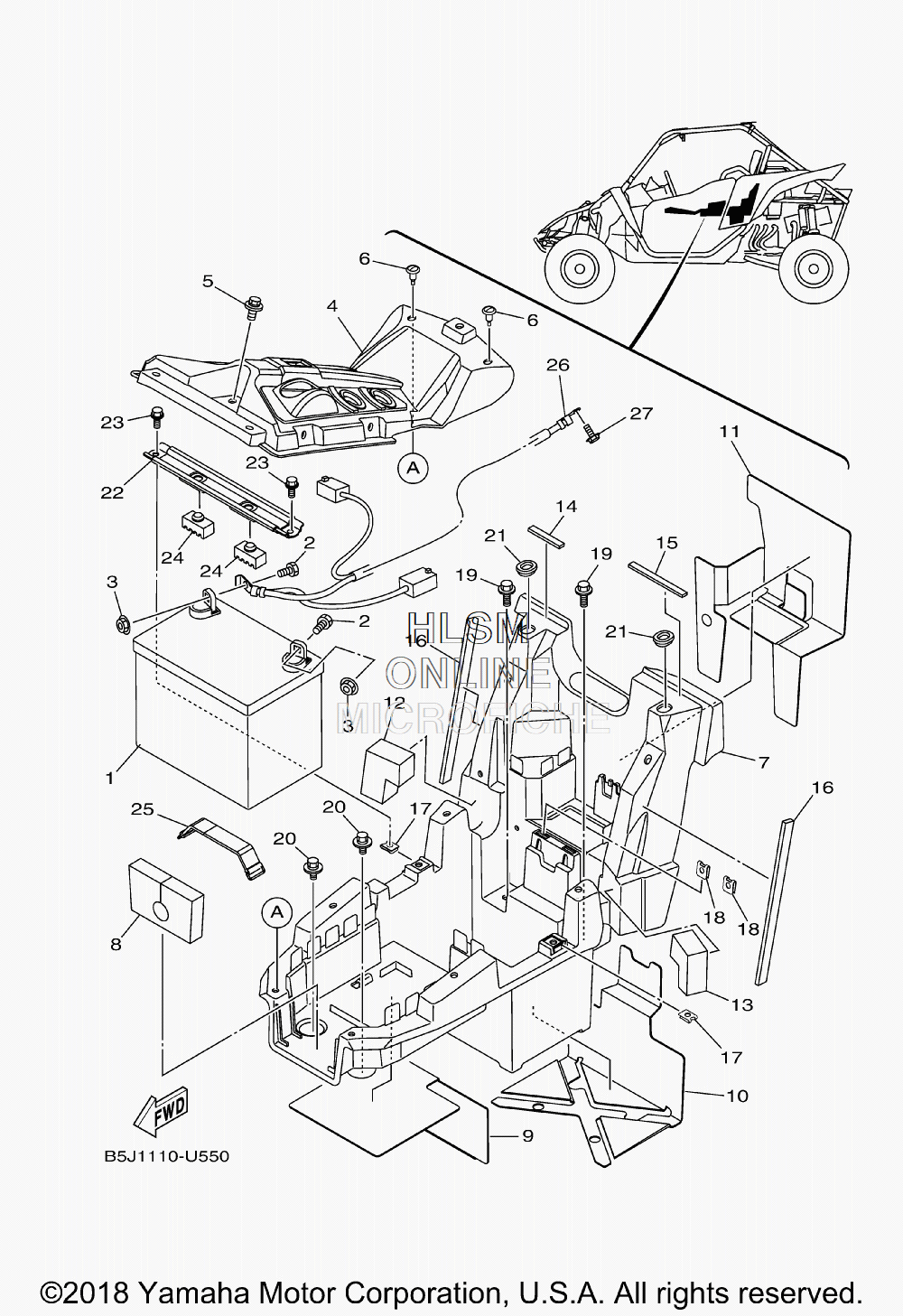

ELECTRICAL 2 для Yamaha YXZ1000R EPS - 2019 года выпуска
-
№АртикулНазвание
-
15UG-H2100-00-00 BATTERY ASSY (GS U1L-11)BATTERY ASSY (GS U1L-11)
-
297080-08020-00 BOLTBOLT
-
390179-08015-00 NUTNUT
-
42HC-H2565-00-00 PANEL, SWITCHPANEL, SWITCH
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690269-07805-00 RIVETRIVET
-
72HC-H212B-01-00 BOX, BATTERY 1BOX, BATTERY 1
-
82HC-8233W-00-00 INSU.INSU.
-
92HC-8253E-00-00 INSULATOR 1INSULATOR 1
-
102HC-8253F-00-00 INSULATOR 2INSULATOR 2
-
112HC-8254E-00-00 INSULATORINSULATOR
-
122HC-2173M-00-00 SEAL 3SEAL 3
-
132HC-2173N-00-00 SEAL 4SEAL 4
-
1490520-05020-00 DAMPER, PLATEDAMPER, PLATE
-
1590520-05021-00 DAMPER, PLATEDAMPER, PLATE
-
1690520-05022-00 DAMPER, PLATEDAMPER, PLATE
-
1790183-060A6-00 NUT, SPRINGNUT, SPRING
-
1890183-05008-00 NUT, SPRINGNUT, SPRING
-
1990119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190480-01558-00 GROMMETGROMMET
-
222HC-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2395022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
243C3-24741-00-00 PAD, SEATPAD, SEAT
-
252T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
262HC-82116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2795812-06014-00 BOLT, FLANGEBOLT, FLANGE
