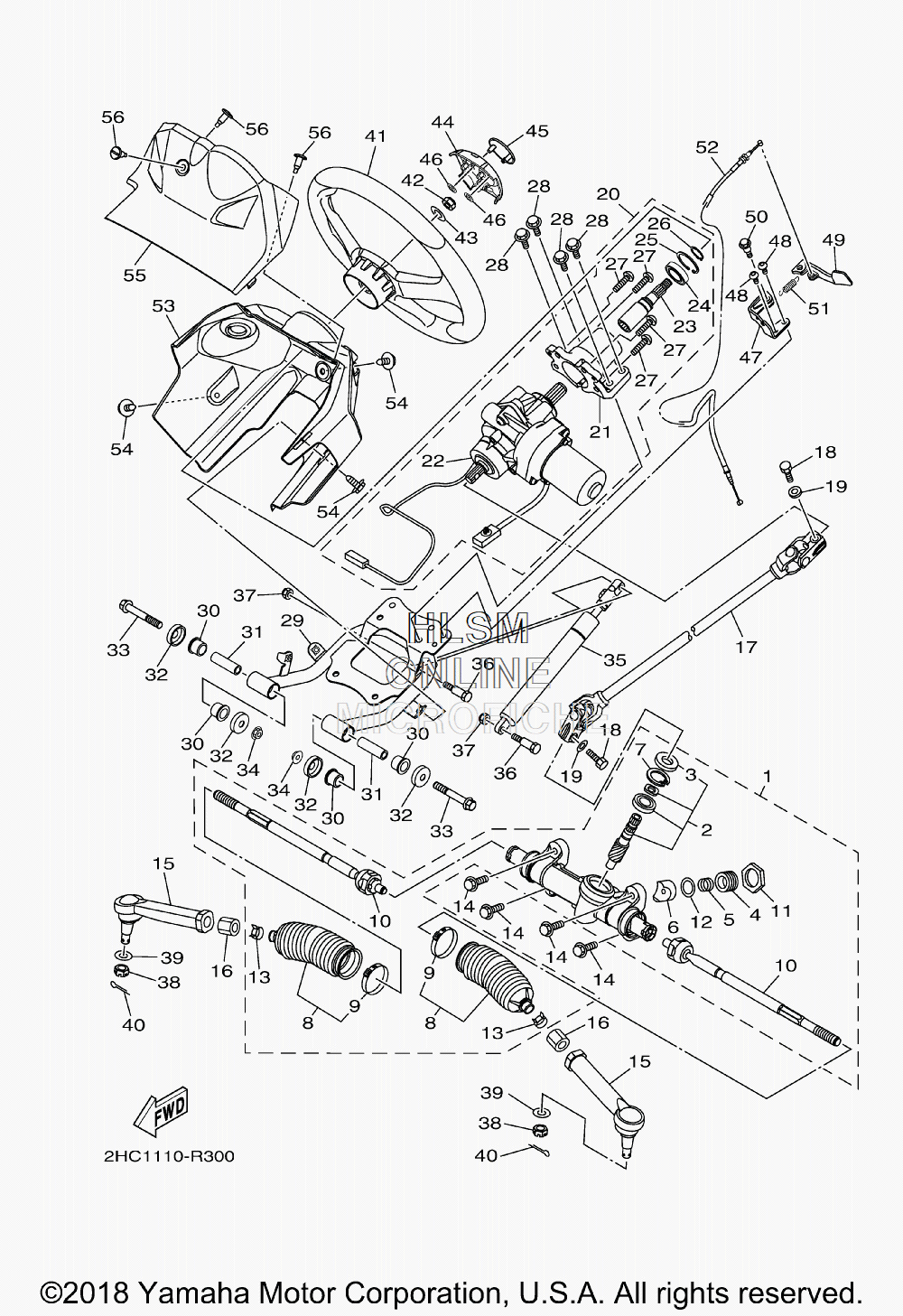

STEERING для Yamaha YXZ1000R EPS - 2019 года выпуска
-
№АртикулНазвание
-
12HC-F3400-02-00 STEERING ASSYSTEERING ASSY
-
22HC-F38G0-00-00 ...STEERING PINION SET...STEERING PINION SET
-
31XD-F3844-00-00 ......SEAL......SEAL
-
41XD-F387G-00-00 ...COVER, ADJUST...COVER, ADJUST
-
51XD-F387K-00-00 ...SPRING, PRESSURE...SPRING, PRESSURE
-
61XD-F387F-00-00 ...PAD, PRESSURE...PAD, PRESSURE
-
71XD-F387J-00-00 ...RING, STOPPER...RING, STOPPER
-
81XD-F1208-00-00 ...SEAL SET, 1...SEAL SET, 1
-
91XD-F3489-00-00 ......BAND......BAND
-
102HC-F38H0-00-00 ...RACK END SET...RACK END SET
-
111XD-F178K-00-00 ...LOCK ASSY...LOCK ASSY
-
121XD-F3165-00-00 ...WASHER, FELT...WASHER, FELT
-
131XD-F3447-00-00 ...CLIP...CLIP
-
1495022-10030-00 BOLT, FLANGEBOLT, FLANGE
-
152HC-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
162HC-F3833-00-00 NUT 1NUT 1
-
172HC-F3840-00-00 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
1891312-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990201-083P5-00 WASHER, PLATEWASHER, PLATE
-
202HC-23810-00-00 STEERING COLUMN ASSYSTEERING COLUMN ASSY
-
212HC-2254G-00-00 ...SUPT. STRG. HSG....SUPT. STRG. HSG.
-
222HC-238B0-00-00 ...POWER STRG. ACTUATOR ASSY...POWER STRG. ACTUATOR ASSY
-
232HC-23849-00-00 ...SHAFT 1...SHAFT 1
-
2493306-97201-00 ...BEARING...BEARING
-
2599009-40500-00 ...CIRCLIP...CIRCLIP
-
2699009-22400-00 ...CIRCLIP...CIRCLIP
-
2792012-08030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2895812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
292HC-F3870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
3090381-15088-00 BUSH, SOLIDBUSH, SOLID
-
3190387-10111-00 COLLARCOLLAR
-
321UY-23517-01-00 COVER, THRUST 1COVER, THRUST 1
-
3390105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
352HC-F3855-00-00 SPRING, DAMPERSPRING, DAMPER
-
3690109-06255-00 BOLTBOLT
-
3795702-06300-00 NUT, NYLONNUT, NYLON
-
3890171-12001-00 NUT, CASTLENUT, CASTLE
-
3990201-12045-00 WASHER, PLATEWASHER, PLATE
-
4091402-20020-00 PIN, COTTERPIN, COTTER
-
412HC-F3838-01-00 WHEEL, STEERINGWHEEL, STEERING
-
4290185-12008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4392902-12200-00 WASHERWASHER
-
442HC-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
451XD-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
4690183-06071-00 NUT, SPRINGNUT, SPRING
-
472HC-F3874-01-00 HOLDER, WIREHOLDER, WIRE
-
4892012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
492HC-F6152-00-00 LEVER, REVERSELEVER, REVERSE
-
5090109-06799-00 BOLTBOLT
-
5190506-09009-00 SPRING, TENSIONSPRING, TENSION
-
522HC-2637E-01-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
532HC-F387G-00-00 COVER, ADJUSTCOVER, ADJUST
-
5490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
552HC-H3559-01-00 COVER, METERCOVER, METER
-
5690269-07805-00 RIVETRIVET
