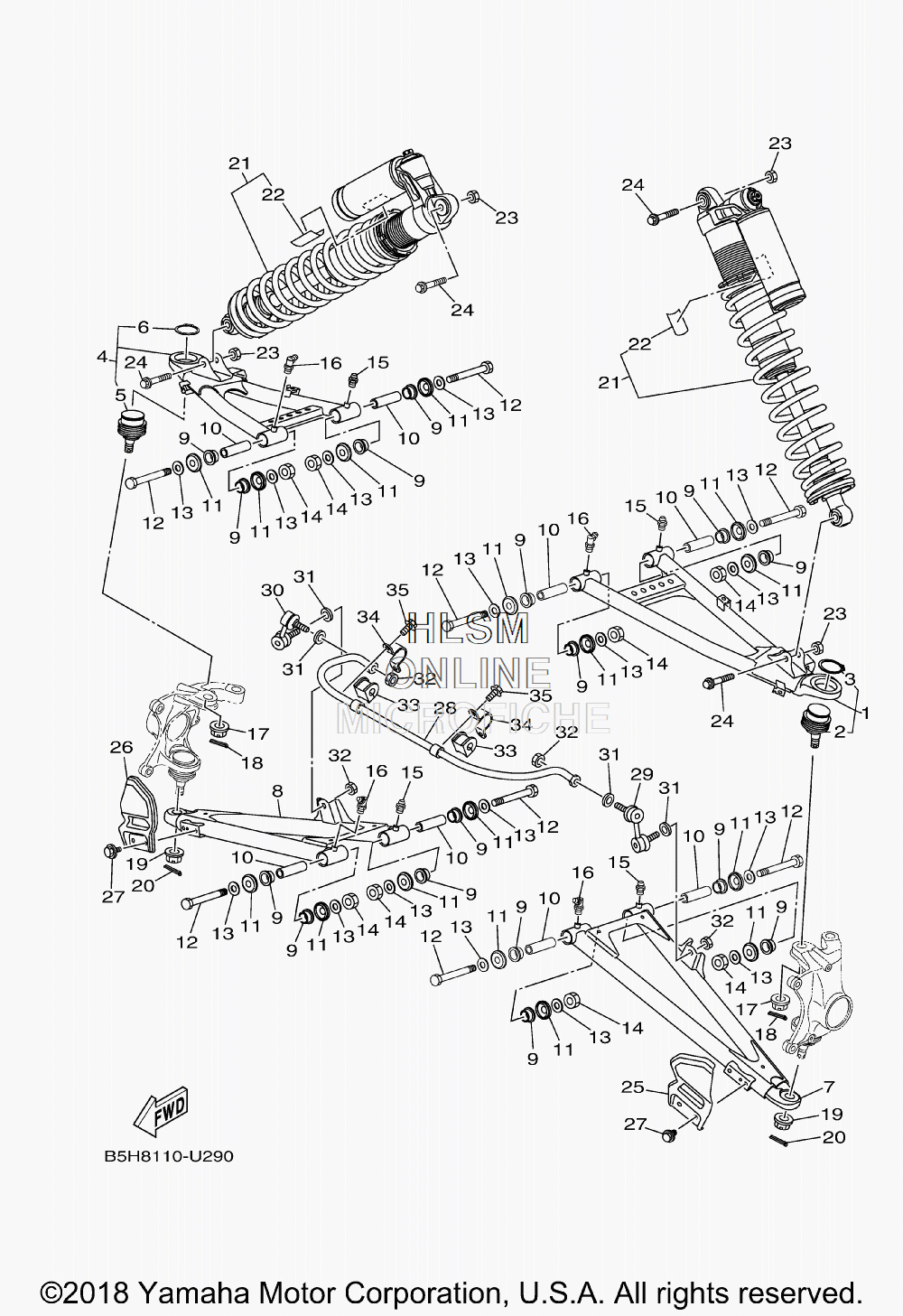

SUSPENSION - FRONT WHEEL для Yamaha YXZ1000R EPS - 2019 года выпуска
-
№АртикулНазвание
-
12HC-F3505-00-00 FRONT UPPER ARM SUB ASSY (LEFT HAND)FRONT UPPER ARM SUB ASSY (LEFT HAND)
-
22HC-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
393410-42096-00 ...CIRCLIP...CIRCLIP
-
42HC-F3506-00-00 FRONT UPPER ARM SUB ASSY (RIGHT HAND)FRONT UPPER ARM SUB ASSY (RIGHT HAND)
-
52HC-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
693410-42096-00 ...CIRCLIP...CIRCLIP
-
72HC-F3507-00-00 FRONT LOWER ARM SUB-ASSY (LEFT HAND)FRONT LOWER ARM SUB-ASSY (LEFT HAND)
-
82HC-F3508-00-00 FRONT LOWER ARM SUB-ASSY (RIGHT HAND)FRONT LOWER ARM SUB-ASSY (RIGHT HAND)
-
990381-18003-00 BUSH, SOLIDBUSH, SOLID
-
1090387-12063-00 COLLARCOLLAR
-
111XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1290101-12050-00 BOLTBOLT
-
1390201-12045-00 WASHER, PLATEWASHER, PLATE
-
1490185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1693700-06009-00 NIPPLE, GREASENIPPLE, GREASE
-
1790171-14005-00 NUT, CASTLENUT, CASTLE
-
1891402-30025-00 PIN, COTTERPIN, COTTER
-
1990171-14005-00 NUT, CASTLENUT, CASTLE
-
2091402-30025-00 PIN, COTTERPIN, COTTER
-
21B5H-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
221HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
2390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
252HC-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
262HC-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2790119-06212-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
288GN-2386E-00-00 BAR, STABILIZER FRONT (14MM)BAR, STABILIZER FRONT (14MM)
-
2916B-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
3016B-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
3190201-10035-00 WASHER, PLATEWASHER, PLATE
-
3290185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
332HC-F3583-00-00 BUSHBUSH
-
342HC-F386B-00-00 BRKT. STABILIZER FRONTBRKT. STABILIZER FRONT
-
3595812-08014-00 BOLT, FLANGEBOLT, FLANGE
