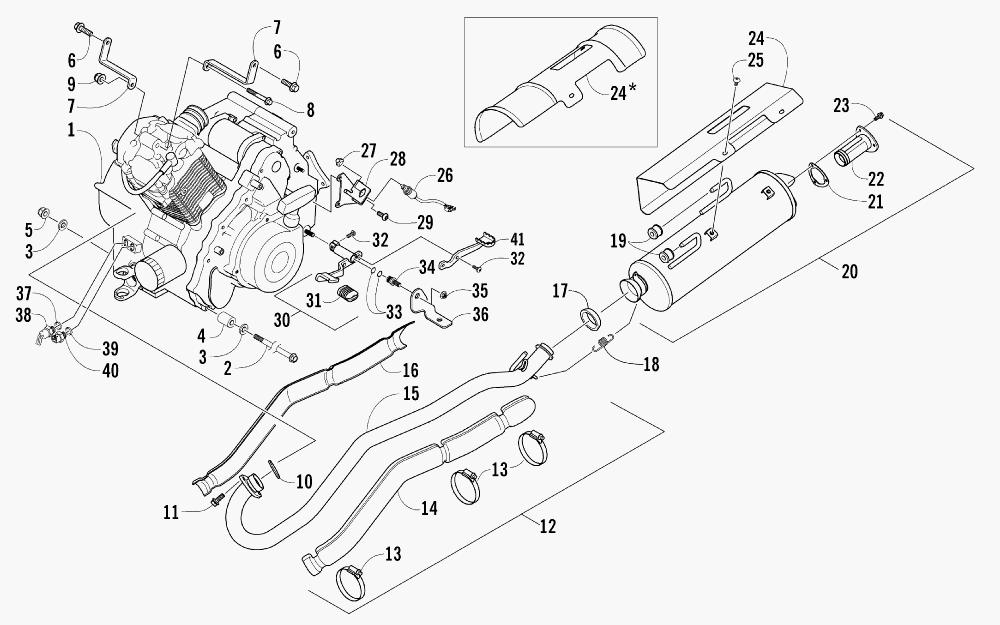

ENGINE AND EXHAUST для Arctic Cat 400 4 X 4 VP MAN (RED) [A2006ABH4AUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10462-037 ENGINEENGINE
-
20423-405 SCREW, CAPSCREW, CAP
-
30423-426 WASHER, ENGINEWASHER, ENGINE
-
40423-042 SPACER, ENGINESPACER, ENGINE
-
58428-002 NUT, LOCKNUT, LOCK
-
68408-816 SCREW, CAPSCREW, CAP
-
71506-626 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
71506-625 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
88408-860 SCREW, CAPSCREW, CAP
-
98424-802 NUTNUT
-
100412-007 SEAL, EXHAUSTSEAL, EXHAUST
-
118408-820 SCREW, CAPSCREW, CAP
-
120512-257 PIPE, EXHAUST - ASSEMBLY (INC. 13-16)PIPE, EXHAUST - ASSEMBLY (INC. 13-16)
-
130423-317 ...CLAMP, HOSE...CLAMP, HOSE
-
140412-344 ...SHIELD, EXHAUST PIPE - OUTER...SHIELD, EXHAUST PIPE - OUTER
-
150512-263 ...PIPE, EXHAUST...PIPE, EXHAUST
-
160412-343 ...SHIELD, EXHAUST PIPE - INNER...SHIELD, EXHAUST PIPE - INNER
-
170612-188 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
180612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
190412-340 BUSHING, MUFFLERBUSHING, MUFFLER
-
200512-269 MUFFLER - ASSEMBLY (INC. 21-23) (UP TO V86T227074)MUFFLER - ASSEMBLY (INC. 21-23) (UP TO V86T227074)
-
200512-358 MUFFLER - ASSEMBLY (INC. 21-23) (VIN: V86T227075 AND ABOVE )MUFFLER - ASSEMBLY (INC. 21-23) (VIN: V86T227075 AND ABOVE )
-
210412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
220512-219 ...SPARK ARRESTER, ASSEMBLY...SPARK ARRESTER, ASSEMBLY
-
238408-616 ...SCREW, CAP...SCREW, CAP
-
240412-329 COVER, MUFFLER (UP TO V86T227074)COVER, MUFFLER (UP TO V86T227074)
-
240412-373 COVER, MUFFLER (VIN: V86T227075 AND ABOVE )COVER, MUFFLER (VIN: V86T227075 AND ABOVE )
-
258477-610 SCREW, MACHINE (UP TO V86T227074)SCREW, MACHINE (UP TO V86T227074)
-
258477-610 SCREW, MACHINE (VIN: V86T227075 AND ABOVE )SCREW, MACHINE (VIN: V86T227075 AND ABOVE )
-
26
-
270402-991 RETAINER, REVERSE SWITCHRETAINER, REVERSE SWITCH
-
281506-449 BRACKET, MOUNTING - REVERSE SWITCH (INC. 29)BRACKET, MOUNTING - REVERSE SWITCH (INC. 29)
-
290423-361 ...SCREW, MACHINE...SCREW, MACHINE
-
300502-871 SHIFTER, TOE - ASSEMBLY (INC. 31 AND ONE NO. 32)SHIFTER, TOE - ASSEMBLY (INC. 31 AND ONE NO. 32)
-
311402-284 ...PAD, TOE - SHIFT LEVER...PAD, TOE - SHIFT LEVER
-
328476-620 ...SCREW, MACHINE...SCREW, MACHINE
-
331602-213 O-RINGO-RING
-
340402-994 PIN, SHIFT LEVERPIN, SHIFT LEVER
-
358422-002 NUTNUT
-
361506-693 BRACKET, FOOT SHIFTERBRACKET, FOOT SHIFTER
-
373402-013 GASKETGASKET
-
383430-033 SWITCH, COOLING FANSWITCH, COOLING FAN
-
393402-556 GASKETGASKET
-
403530-037 SWITCH, OIL LIGHTSWITCH, OIL LIGHT
-
410502-693 SHIFT LEVER, HEELSHIFT LEVER, HEEL
