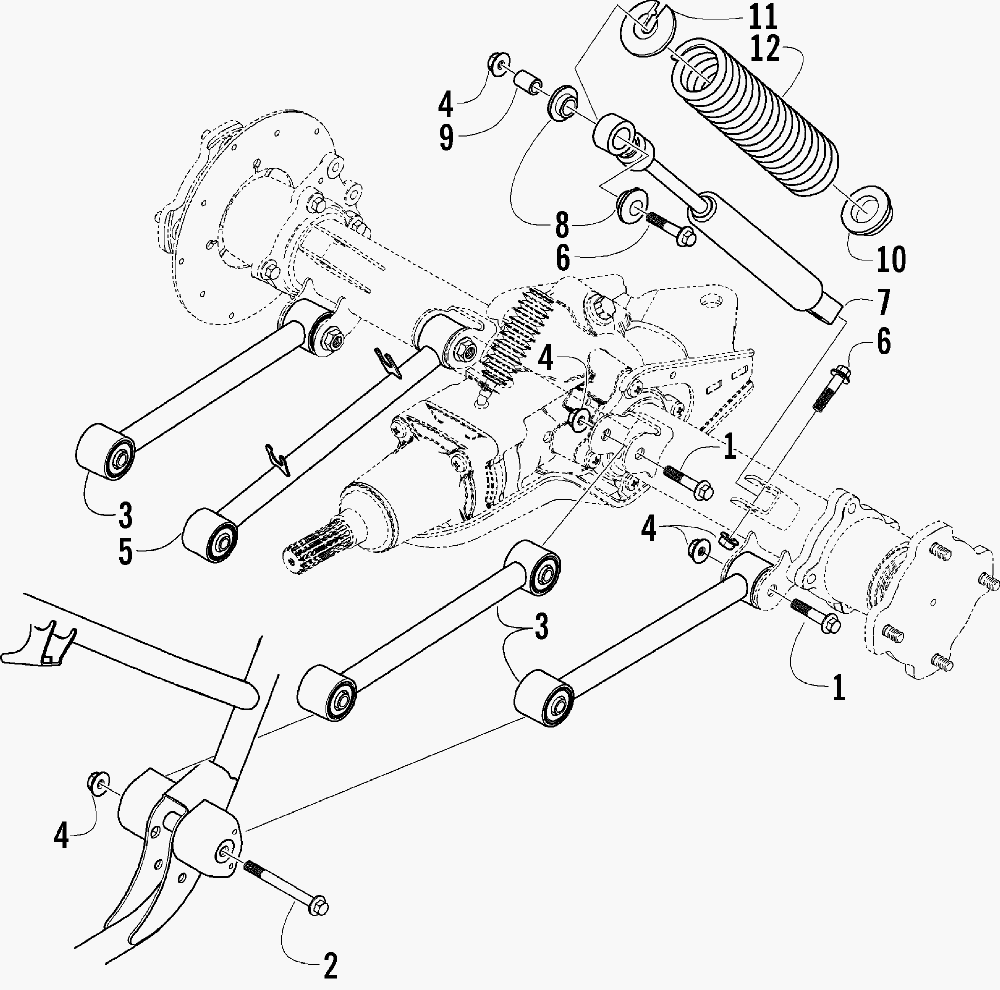

REAR SUSPENSION ASSEMBLY для Arctic Cat 400 4 X 4 VP MAN (RED) [A2006ABH4AUSR] - 2006 года выпуска
-
№АртикулНазвание
-
18409-060 SCREW, CAPSCREW, CAP
-
20423-335 SCREW, CAPSCREW, CAP
-
30504-218 ARM, SWINGARM, SWING
-
48428-002 NUT, LOCKNUT, LOCK
-
50504-215 ARM, SWINGARM, SWING
-
68409-040 SCREW, CAPSCREW, CAP
-
70404-107 SHOCK ABSORBER - REAR (INC. 8-9)SHOCK ABSORBER - REAR (INC. 8-9)
-
80604-310 ...BUSHING, SHOCK ABSORBER...BUSHING, SHOCK ABSORBER
-
90403-028 ...SLEEVE, SHOCK ABSORBER...SLEEVE, SHOCK ABSORBER
-
100403-102 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
111603-889 RETAINER, SPRING - UPPERRETAINER, SPRING - UPPER
-
120404-108 SPRING, SHOCK ABSORBER - BLACKSPRING, SHOCK ABSORBER - BLACK
