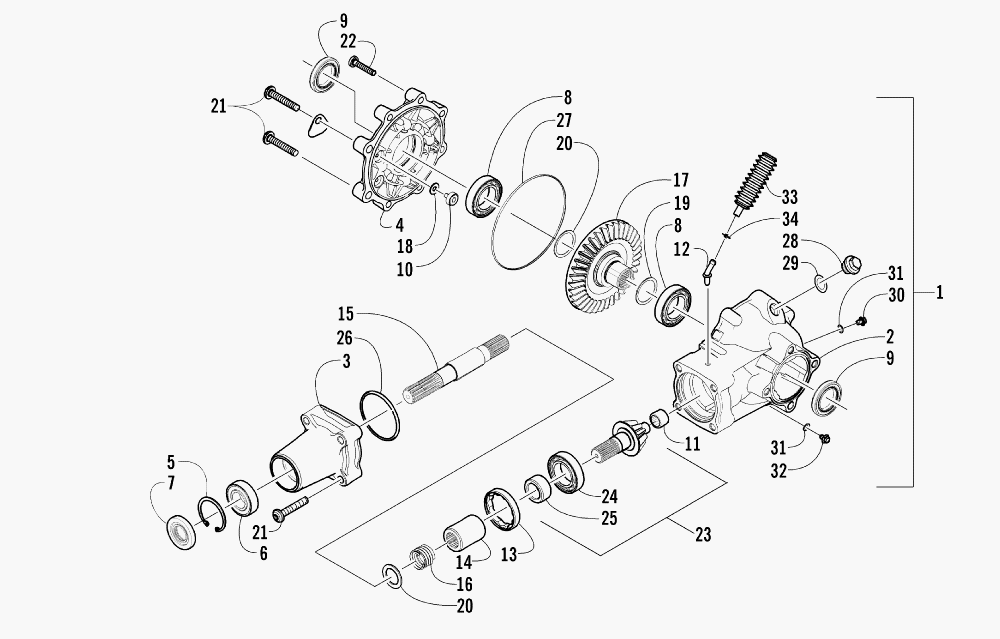

REAR DRIVE GEARCASE ASSEMBLY для Arctic Cat 400 4 X 4 VP MAN (RED) [A2006ABH4AUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10502-822 GEARCASE, REAR DRIVE - ASSEMBLY (INC. 2-32)GEARCASE, REAR DRIVE - ASSEMBLY (INC. 2-32)
-
20502-088 ...HOUSING, GEARCASE...HOUSING, GEARCASE
-
30502-239 ...HOUSING, PINION...HOUSING, PINION
-
40502-089 ...COVER, GEARCASE...COVER, GEARCASE
-
50402-321 ...RING, RETAINING...RING, RETAINING
-
60402-322 ...BEARING...BEARING
-
70402-323 ...SEAL...SEAL
-
80402-324 ...BEARING...BEARING
-
90402-325 ...SEAL...SEAL
-
100402-326 ...BUTTON, THRUST...BUTTON, THRUST
-
110402-328 ...BEARING, NEEDLE...BEARING, NEEDLE
-
121402-103 ...FITTING, 45?...FITTING, 45?
-
130402-331 ...COLLAR, LOCK...COLLAR, LOCK
-
140402-335 ...COLLAR, SHAFT...COLLAR, SHAFT
-
150402-851 ...SHAFT, THRUST...SHAFT, THRUST
-
160402-338 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
170402-381 ...GEAR, RING - 36T...GEAR, RING - 36T
-
180402-429 ...SHIM,6.3X18X1.3...SHIM,6.3X18X1.3
-
180402-430 ...SHIM,6.3X18X1.4...SHIM,6.3X18X1.4
-
180402-431 ...SHIM,6.3X18X1.5...SHIM,6.3X18X1.5
-
180402-432 ...SHIM,6.3X18X1.6...SHIM,6.3X18X1.6
-
180402-433 ...SHIM,6.3X18X1.7...SHIM,6.3X18X1.7
-
190402-434 ...SHIM,35.7X43.8X1.3...SHIM,35.7X43.8X1.3
-
190402-435 ...SHIM,35.7X43.8X1.4...SHIM,35.7X43.8X1.4
-
190402-436 ...SHIM,35.7X43.8X1.5...SHIM,35.7X43.8X1.5
-
190402-437 ...SHIM,35.7X43.8X1.6...SHIM,35.7X43.8X1.6
-
190402-438 ...SHIM,6.3X18X1.7...SHIM,6.3X18X1.7
-
200423-111 ...WASHER...WASHER
-
210423-115 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
220423-118 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
230502-783 ...GEAR, PINION - ASSEMBLY - 10T (INC. 24-25)...GEAR, PINION - ASSEMBLY - 10T (INC. 24-25)
-
240402-327 ......BEARING......BEARING
-
250402-336 ......COLLAR, RETAINING......COLLAR, RETAINING
-
260423-148 ...O-RING...O-RING
-
270423-149 ...O-RING...O-RING
-
280402-333 ...PLUG, FILL (INC. 29)...PLUG, FILL (INC. 29)
-
290423-154 ......O-RING, FILL PLUG......O-RING, FILL PLUG
-
300402-334 ...PLUG, DRAIN (INC. ONE NO. 31)...PLUG, DRAIN (INC. ONE NO. 31)
-
310423-153 ......O-RING, DRAIN PLUG......O-RING, DRAIN PLUG
-
320402-450 ...PLUG, DRAIN - MAGNETIC (INC. ONE NO. 31)...PLUG, DRAIN - MAGNETIC (INC. ONE NO. 31)
-
330402-147 BLADDER, GEARCASEBLADDER, GEARCASE
-
340423-315 CLAMP, FITTINGCLAMP, FITTING
