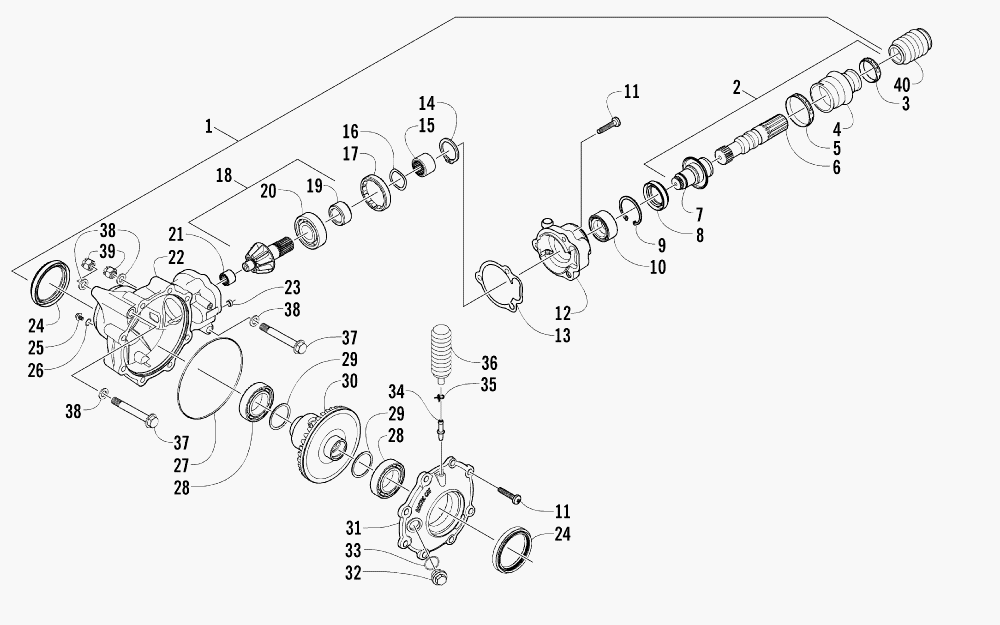

FRONT DRIVE GEARCASE ASSEMBLY для Arctic Cat 400 4 X 4 VP MAN (RED) [A2006ABH4AUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10502-817 GEARCASE, FRONT DRIVE - ASSEMBLY (INC. 2-34)GEARCASE, FRONT DRIVE - ASSEMBLY (INC. 2-34)
-
20502-386 ...SHAFT, PROPELLER - ASSEMBLY (INC. 3-7)...SHAFT, PROPELLER - ASSEMBLY (INC. 3-7)
-
30423-411 ......CLAMP, BOOT......CLAMP, BOOT
-
40402-985 ......BOOT, PROPELLER SHAFT......BOOT, PROPELLER SHAFT
-
50423-393 ......CLAMP, BOOT......CLAMP, BOOT
-
61402-046 ......SHAFT, OUTPUT......SHAFT, OUTPUT
-
70502-407 ......SHAFT, INPUT......SHAFT, INPUT
-
81402-011 ...SEAL...SEAL
-
90423-423 ...RING, RETAINING...RING, RETAINING
-
101402-043 ...BEARING...BEARING
-
110423-118 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
120502-529 ...HOUSING, PINION...HOUSING, PINION
-
130402-947 ...GASKET, FLANGE...GASKET, FLANGE
-
140423-417 ...RING, RETAINING...RING, RETAINING
-
150402-981 ...COLLAR, SHAFT...COLLAR, SHAFT
-
160402-982 ...WASHER, WAVE SPRING...WASHER, WAVE SPRING
-
170402-357 ...COLLAR, LOCK...COLLAR, LOCK
-
180502-783 ...GEAR, PINION - ASSEMBLY - 10T (INC. 19-20)...GEAR, PINION - ASSEMBLY - 10T (INC. 19-20)
-
190402-336 ......COLLAR, RETAINING......COLLAR, RETAINING
-
200402-327 ......BEARING......BEARING
-
210402-328 ...BEARING...BEARING
-
220502-120 ...HOUSING, GEARCASE...HOUSING, GEARCASE
-
230402-411 ...PIN, DOWEL...PIN, DOWEL
-
240402-394 ...SEAL...SEAL
-
250402-450 ...PLUG, MAGNETIC (INC. 26)...PLUG, MAGNETIC (INC. 26)
-
260423-153 ......O-RING......O-RING
-
270423-149 ...O-RING...O-RING
-
280402-393 ...BEARING...BEARING
-
290402-405 ...SHIM,41X49X1.3...SHIM,41X49X1.3
-
290402-406 ...SHIM,41X49X1.4...SHIM,41X49X1.4
-
290402-407 ...SHIM,41X49X1.5...SHIM,41X49X1.5
-
290402-408 ...SHIM,41X49X1.6...SHIM,41X49X1.6
-
290402-409 ...SHIM,41X49X1.7...SHIM,41X49X1.7
-
300502-779 ...GEAR, RING - 36T...GEAR, RING - 36T
-
310502-121 ...COVER, GEARCASE...COVER, GEARCASE
-
320402-333 ...PLUG, FILL (INC. 33)...PLUG, FILL (INC. 33)
-
330423-154 ......O-RING......O-RING
-
341402-104 ...FITTING...FITTING
-
350423-315 CLAMP, FITTINGCLAMP, FITTING
-
360402-147 BLADDER, GEARCASEBLADDER, GEARCASE
-
370423-404 SCREW, CAPSCREW, CAP
-
380423-426 WASHERWASHER
-
398428-002 NUT, LOCKNUT, LOCK
-
400402-966 BOOT, SHAFTBOOT, SHAFT
