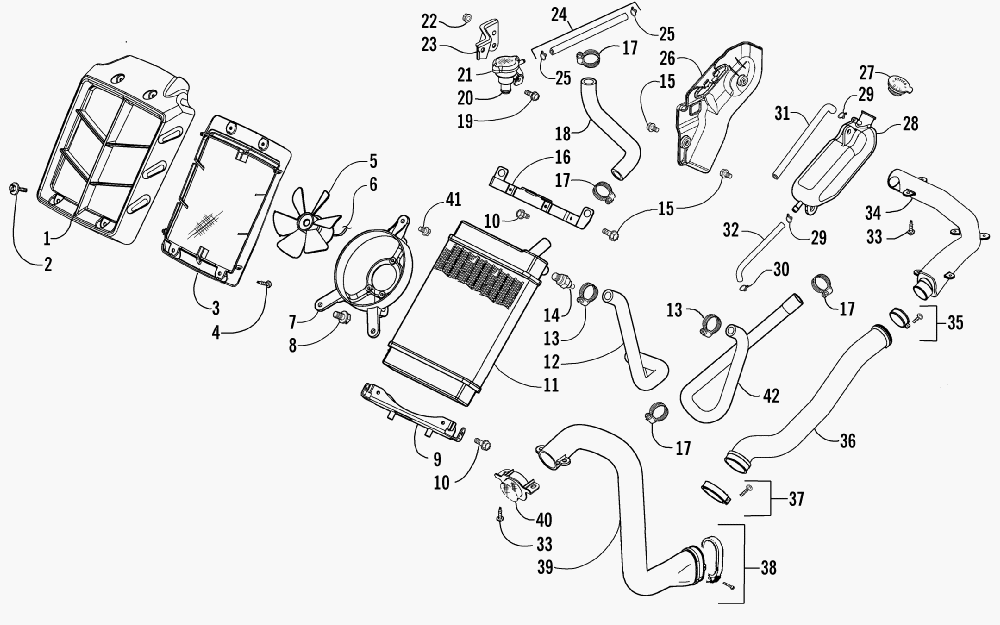

COOLING ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2007KUE2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
13303-743 SHROUD, RADIATORSHROUD, RADIATOR
-
23303-263 SCREW W/WASHERSCREW W/WASHER
-
33303-744 SCREEN, RADIATORSCREEN, RADIATOR
-
43304-123 SCREW W/WASHERSCREW W/WASHER
-
53303-741 FAN, COOLINGFAN, COOLING
-
63303-742 MOTOR, FANMOTOR, FAN
-
73303-739 SHROUD, FANSHROUD, FAN
-
83304-586 BOLTBOLT
-
93303-984 BRACKET, RADIATOR - LOWERBRACKET, RADIATOR - LOWER
-
103304-116 BOLT W/WASHERBOLT W/WASHER
-
113303-737 RADIATOR ASSEMBLYRADIATOR ASSEMBLY
-
123303-759 HOSE, COOLING - RADIATOR/ENGINEHOSE, COOLING - RADIATOR/ENGINE
-
133304-164 CLAMP, HOSECLAMP, HOSE
-
143303-862 SWITCH, TEMPERATURESWITCH, TEMPERATURE
-
153304-587 BOLT W/WASHERBOLT W/WASHER
-
163303-983 BRACKET, RADIATOR - UPPERBRACKET, RADIATOR - UPPER
-
173304-165 CLAMP, HOSECLAMP, HOSE
-
183303-761 HOSE, COOLING - RADIATORHOSE, COOLING - RADIATOR
-
193304-553 BOLT, FLANGEBOLT, FLANGE
-
203303-738 NECK, FILLERNECK, FILLER
-
213303-748 CAP, RADIATORCAP, RADIATOR
-
223304-654 NUTNUT
-
233303-740 BRACKET, MOUNTING - FILLER NECKBRACKET, MOUNTING - FILLER NECK
-
243304-066 TUBE ASSEMBLY - WATER PUMP (INC. 25)TUBE ASSEMBLY - WATER PUMP (INC. 25)
-
253304-161 ...CLIP, TUBE...CLIP, TUBE
-
263303-993 SHIELD, MASTER CYLINDERSHIELD, MASTER CYLINDER
-
273303-749 CAP, RESERVE TANKCAP, RESERVE TANK
-
283304-253 TANK, RESERVETANK, RESERVE
-
293304-163 CLIP, TUBECLIP, TUBE
-
303303-349 CLIP, TUBECLIP, TUBE
-
313303-745 HOSE, DRAIN - RESERVE TANKHOSE, DRAIN - RESERVE TANK
-
323303-746 HOSE, RESERVE TANKHOSE, RESERVE TANK
-
333304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
343303-637 DUCT, COOLING - COVERDUCT, COOLING - COVER
-
353303-709 CLAMP W/SCREWCLAMP W/SCREW
-
363303-633 DUCT, COOLINGDUCT, COOLING
-
373303-636 CLAMP W/SCREWCLAMP W/SCREW
-
383303-635 CLAMP W/SCREWCLAMP W/SCREW
-
393303-634 DUCT, COOLINGDUCT, COOLING
-
403303-640 ELEMENT, DUCTELEMENT, DUCT
-
413303-320 SCREW W/WASHERSCREW W/WASHER
-
423303-760 HOSE, COOLING - ENGINE/RADIATORHOSE, COOLING - ENGINE/RADIATOR
