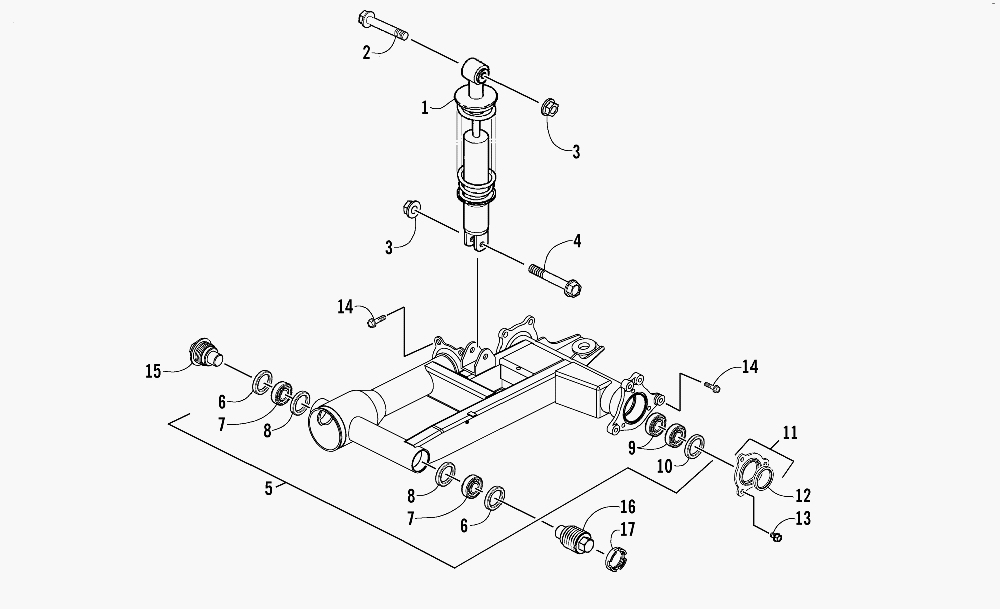

REAR SUSPENSION ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2007KUE2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
13303-949 CUSHION - ASSEMBLY - REARCUSHION - ASSEMBLY - REAR
-
23304-182 BOLT, FLANGEBOLT, FLANGE
-
33303-265 NUTNUT
-
43304-185 BOLT, FLANGEBOLT, FLANGE
-
53303-944 FORK - ASSEMBLY - REAR (INC. 6-10)FORK - ASSEMBLY - REAR (INC. 6-10)
-
63304-086 ...SEAL, DUST...SEAL, DUST
-
73304-666 ...BEARING...BEARING
-
83303-946 ...SEAL, GREASE...SEAL, GREASE
-
93304-201 ...BEARING...BEARING
-
103304-106 ...O-RING...O-RING
-
113303-948 GASKET W/SEAL (INC. 12)GASKET W/SEAL (INC. 12)
-
123304-084 ...SEAL, OIL...SEAL, OIL
-
133304-544 SCREW, CAPSCREW, CAP
-
143304-181 SCREW, CAPSCREW, CAP
-
153304-018 BOLT, RIGHTBOLT, RIGHT
-
163304-019 BOLT, LEFTBOLT, LEFT
-
173304-020 NUTNUT
