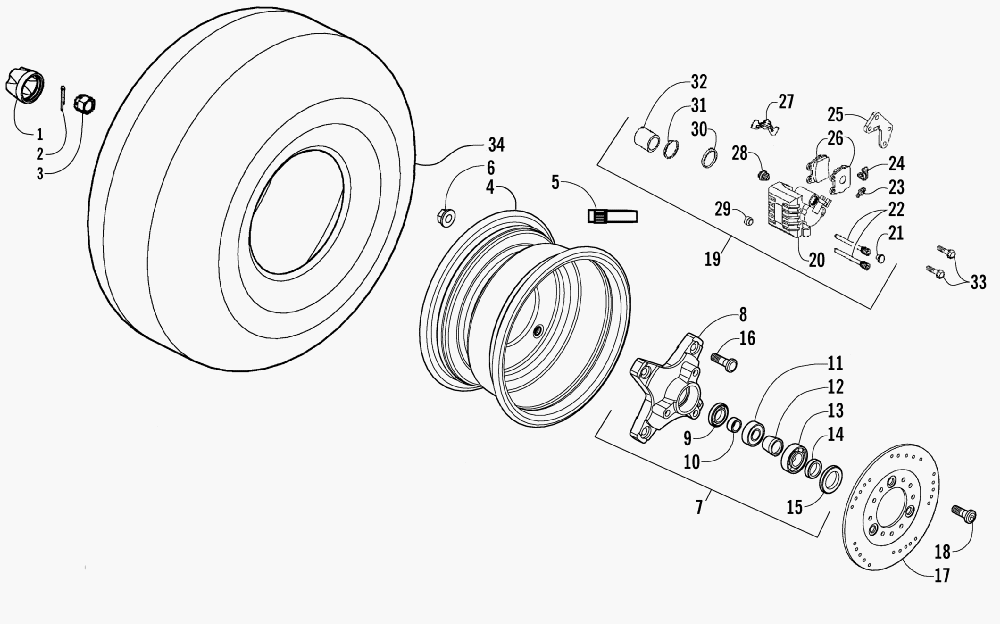

FRONT WHEELS AND BRAKE ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2007KUE2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
13303-931 CAP, WHEELCAP, WHEEL
-
23303-340 PIN, COTTERPIN, COTTER
-
33303-330 NUTNUT
-
43303-902 WHEEL, FRONTWHEEL, FRONT
-
53304-562 VALVE, WHEELVALVE, WHEEL
-
63304-028 NUT, WHEELNUT, WHEEL
-
73303-903 HUB, WHEEL - ASSEMBLY - FRONT (INC. 8-16)HUB, WHEEL - ASSEMBLY - FRONT (INC. 8-16)
-
93304-089 ...SEAL, OIL...SEAL, OIL
-
103303-898 ...COLLAR, WHEEL - INSIDE...COLLAR, WHEEL - INSIDE
-
113304-200 ...BEARING...BEARING
-
123303-900 ...COLLAR, WHEEL - CENTER...COLLAR, WHEEL - CENTER
-
133304-202 ...BEARING...BEARING
-
143303-899 ...COLLAR, WHEEL - OUTSIDE...COLLAR, WHEEL - OUTSIDE
-
153304-088 ...SEAL, OIL...SEAL, OIL
-
163304-014 ...BOLT, HUB...BOLT, HUB
-
173303-912 DISC, BRAKE - FRONT - RIGHTDISC, BRAKE - FRONT - RIGHT
-
173303-918 DISC, BRAKE - FRONT - LEFTDISC, BRAKE - FRONT - LEFT
-
183304-015 BOLTBOLT
-
193304-313 CALIPER ASSEMBLY - FRONT - RIGHT (INC. 20-32)CALIPER ASSEMBLY - FRONT - RIGHT (INC. 20-32)
-
193303-921 CALIPER ASSEMBLY - FRONT - LEFT (INC. 20-32)CALIPER ASSEMBLY - FRONT - LEFT (INC. 20-32)
-
213304-334 ...PLUG...PLUG
-
223304-326 ...PIN...PIN
-
233304-330 ...VALVE, BLEED...VALVE, BLEED
-
243304-331 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
253304-317 ...BRACKET, RIGHT...BRACKET, RIGHT
-
253304-328 ...BRACKET, LEFT...BRACKET, LEFT
-
263303-908 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
273304-315 ...SPRING, BRAKE PAD...SPRING, BRAKE PAD
-
283304-322 ...BOOT A...BOOT A
-
293304-329 ...BUSHING...BUSHING
-
303303-922 ...SEAL, PISTON - INNER...SEAL, PISTON - INNER
-
313303-910 ...SEAL, DUST - OUTER...SEAL, DUST - OUTER
-
323303-909 ...PISTON...PISTON
-
333304-174 SCREW, CAPSCREW, CAP
-
343303-904 TIRE, FRONTTIRE, FRONT
