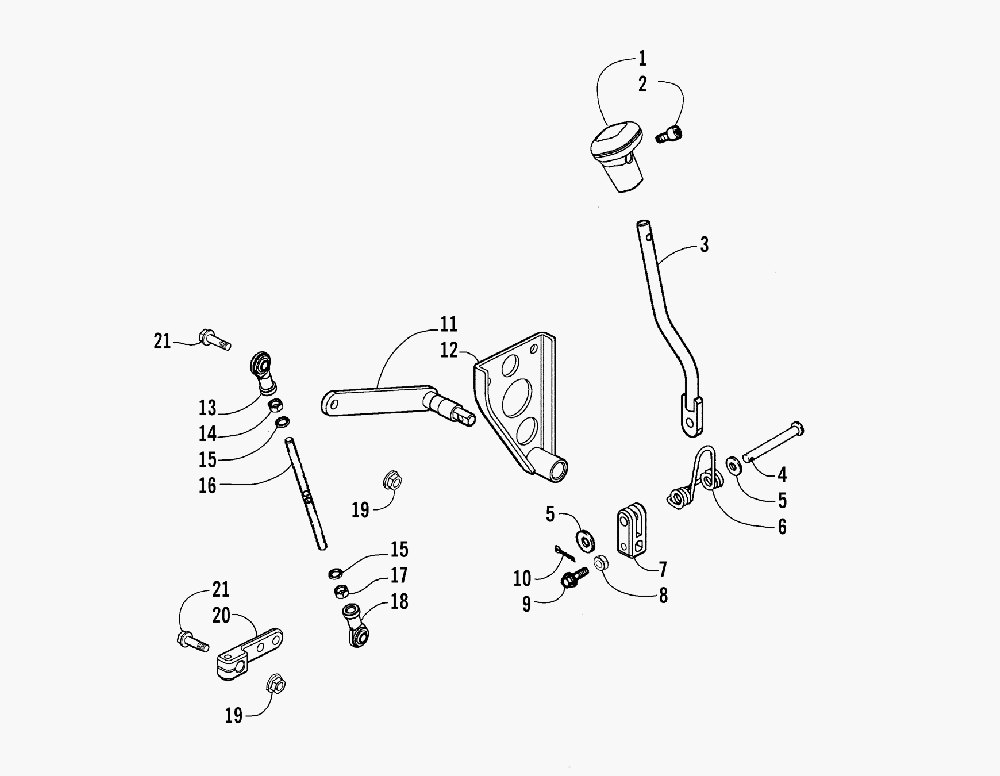

SHIFT LEVER ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2007KUE2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
13303-823 HANDLE, GEAR SHIFT RODHANDLE, GEAR SHIFT ROD
-
23304-401 BOLT, SOCKETBOLT, SOCKET
-
33303-816 ROD, GEAR SHIFTROD, GEAR SHIFT
-
43303-817 PIN, GEAR SHIFTPIN, GEAR SHIFT
-
53304-138 WASHERWASHER
-
63303-818 SPRING, GEAR SHIFTSPRING, GEAR SHIFT
-
73303-819 BRACKET, GEAR SHIFTBRACKET, GEAR SHIFT
-
83304-127 NUT, HEXNUT, HEX
-
93303-382 BOLT, FLANGEBOLT, FLANGE
-
103304-142 PIN, COTTERPIN, COTTER
-
113303-821 LEVER, GEAR SHIFTLEVER, GEAR SHIFT
-
123305-299 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
133303-970 BALL JOINT, TIE ROD - RIGHTBALL JOINT, TIE ROD - RIGHT
-
143304-125 NUT, HEXNUT, HEX
-
153303-607 WASHERWASHER
-
163303-822 TIE RODTIE ROD
-
173304-126 NUT, HEXNUT, HEX
-
183303-972 BALL JOINT, TIE ROD - LEFTBALL JOINT, TIE ROD - LEFT
-
193303-332 NUTNUT
-
203303-814 LINK, GEAR SHIFTLINK, GEAR SHIFT
-
213304-176 SCREW, CAPSCREW, CAP
