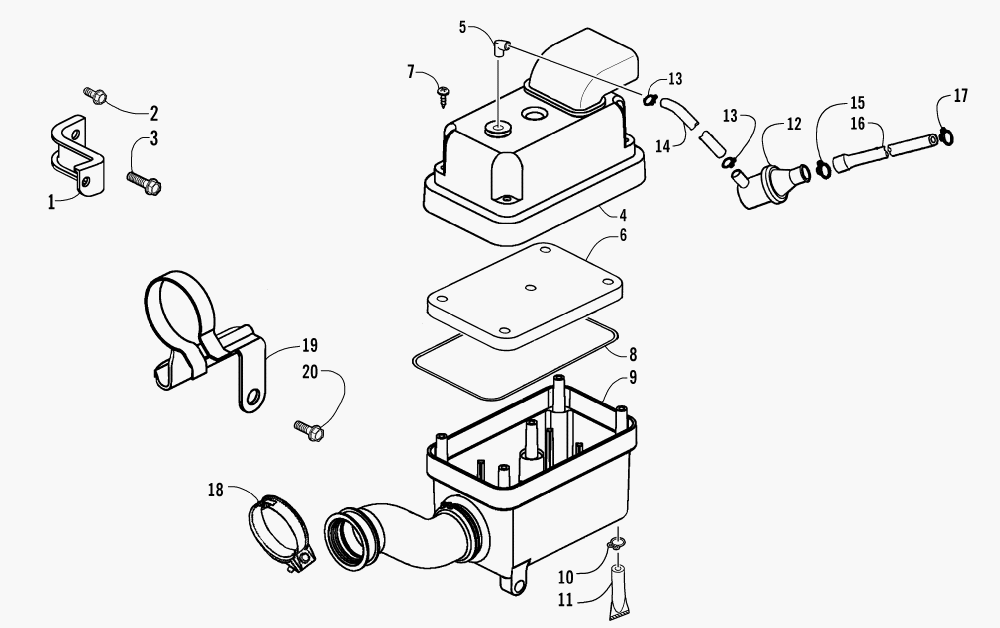

AIR INTAKE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN ) [A2007KUB2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
13303-005 BRACKET, MOUNTINGBRACKET, MOUNTING
-
23303-357 BOLT, FLANGE (6*12)BOLT, FLANGE (6*12)
-
33303-361 BOLT, FLANGE (6*30)BOLT, FLANGE (6*30)
-
43303-062 COVER, AIR CLEANER (INC. 5)COVER, AIR CLEANER (INC. 5)
-
63303-060 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
73303-322 SCREW, SELF-TAPPING (5*20)SCREW, SELF-TAPPING (5*20)
-
83303-063 SEAL, AIR CLEANERSEAL, AIR CLEANER
-
93303-061 CASE, AIR CLEANERCASE, AIR CLEANER
-
103305-315 CLIPCLIP
-
113304-168 TUBE, DRAINTUBE, DRAIN
-
123303-064 CATCH, AIR CLEANER ELEMENTCATCH, AIR CLEANER ELEMENT
-
133303-350 CLIPCLIP
-
143303-002 TUBETUBE
-
153303-052 CLIP, BREATHER TUBECLIP, BREATHER TUBE
-
163303-001 TUBETUBE
-
173303-352 CLIPCLIP
-
183303-288 CLAMPCLAMP
-
193303-287 CLAMP ASSEMBLY - AIR CLEANER TUBECLAMP ASSEMBLY - AIR CLEANER TUBE
-
203304-551 BOLT, FLANGE (6*22)BOLT, FLANGE (6*22)
