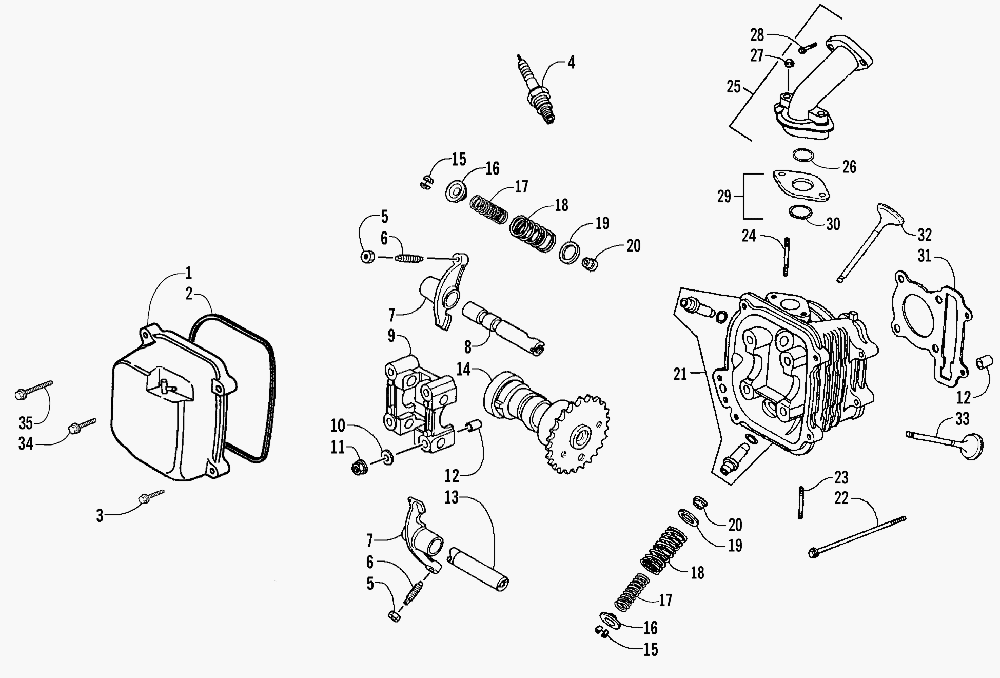

CYLINDER HEAD ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN ) [A2007KUB2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
-3303-625 COMPLETE ENGINE ASSEMBLY*COMPLETE ENGINE ASSEMBLY*
-
13305-292 COVER, HEAD - ASSEMBLYCOVER, HEAD - ASSEMBLY
-
23304-616 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
33303-360 BOLT, FLANGE (6*25)BOLT, FLANGE (6*25)
-
40217-726 PLUG, SPARK (NGK CR7HSA)PLUG, SPARK (NGK CR7HSA)
-
53304-026 NUT, TAPPET ADJUSTINGNUT, TAPPET ADJUSTING
-
63304-007 SCREW, TAPPET ADJUSTINGSCREW, TAPPET ADJUSTING
-
73303-031 VALVE, ROCKER ARMVALVE, ROCKER ARM
-
83303-032 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
93303-018 HOLDER, CAMSHAFTHOLDER, CAMSHAFT
-
103304-048 WASHER, SEALINGWASHER, SEALING
-
113303-332 NUT, FLANGE (8MM)NUT, FLANGE (8MM)
-
123303-342 PIN, DOWEL (10*16)PIN, DOWEL (10*16)
-
133303-033 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
143304-617 SHAFT COMP. CAMSHAFT COMP. CAM
-
153303-044 COTTER, VALVECOTTER, VALVE
-
163303-042 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
173303-041 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
183303-040 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
193303-043 SEAT, VALVE SPRING - OUTERSEAT, VALVE SPRING - OUTER
-
203303-657 SEAL, VALVE STEMSEAL, VALVE STEM
-
213303-016 HEAD, CYLINDERHEAD, CYLINDER
-
223303-389 BOLT, FLANGE (6*95)BOLT, FLANGE (6*95)
-
233304-010 BOLT, STUD (8*32)BOLT, STUD (8*32)
-
243303-310 BOLT, STUD (6*50)BOLT, STUD (6*50)
-
253303-059 PIPE, INTAKE - ASSEMBLY (INC. 26)PIPE, INTAKE - ASSEMBLY (INC. 26)
-
263303-304 ...O-RING (22*2.0)...O-RING (22*2.0)
-
273303-331 NUT, FLANGE (6MM)NUT, FLANGE (6MM)
-
283303-384 BOLT, FLANGE (6*25)BOLT, FLANGE (6*25)
-
293303-511 INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)
-
303304-596 ...O-RING (23X2.4)...O-RING (23X2.4)
-
313303-019 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
323303-039 VALVE, EXHAUSTVALVE, EXHAUST
-
333303-038 VALVE, INTAKEVALVE, INTAKE
-
343303-362 BOLT, FLANGE (6*35)BOLT, FLANGE (6*35)
-
353303-363 BOLT, FLANGE (6*50)BOLT, FLANGE (6*50)
