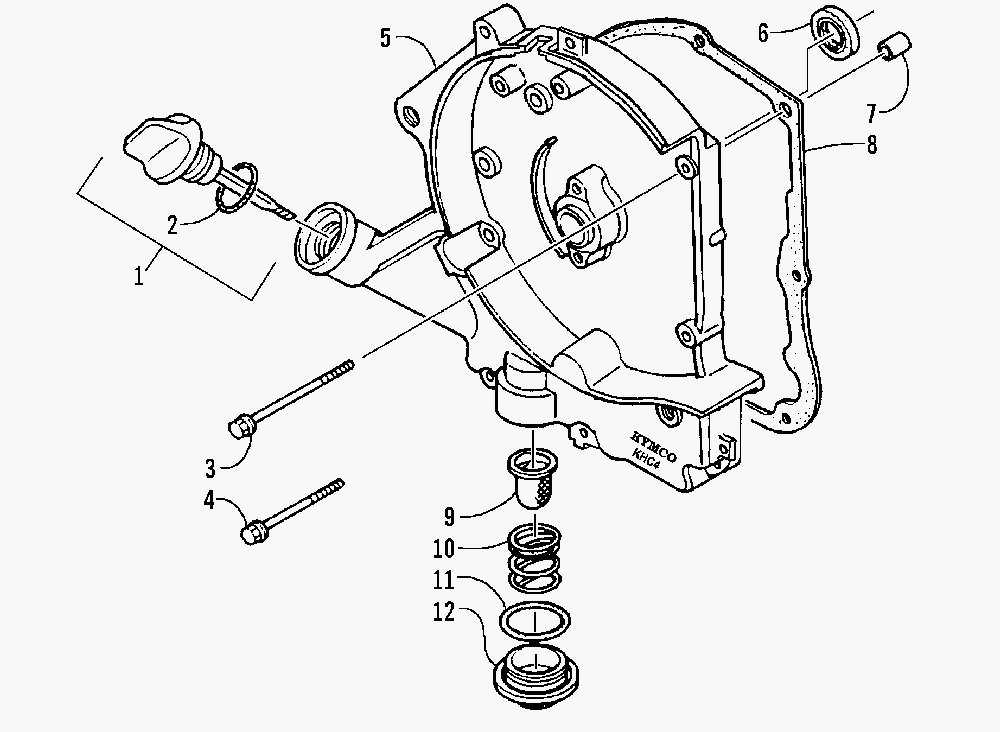

CRANKCASE COVER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN ) [A2007KUB2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
13303-050 GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)
-
23304-102 ...O-RING (18*3)...O-RING (18*3)
-
33303-390 BOLT, FLANGE (6*100)BOLT, FLANGE (6*100)
-
43304-580 BOLT, FLANGE (6X85)BOLT, FLANGE (6X85)
-
53303-007 COVER, CRANKCASE (INC. 6)COVER, CRANKCASE (INC. 6)
-
63303-296 ...SEAL, OIL (19.8*30*5 **9000-M2)...SEAL, OIL (19.8*30*5 **9000-M2)
-
73303-341 PIN, DOWEL (8*14)PIN, DOWEL (8*14)
-
83303-012 GASKET, CRANKCASEGASKET, CRANKCASE
-
93303-048 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
103303-049 SPRING, OIL FILTER SCREENSPRING, OIL FILTER SCREEN
-
113304-096 O-RING (30.8MM)O-RING (30.8MM)
-
123303-021 CAP, OIL FILTERCAP, OIL FILTER
