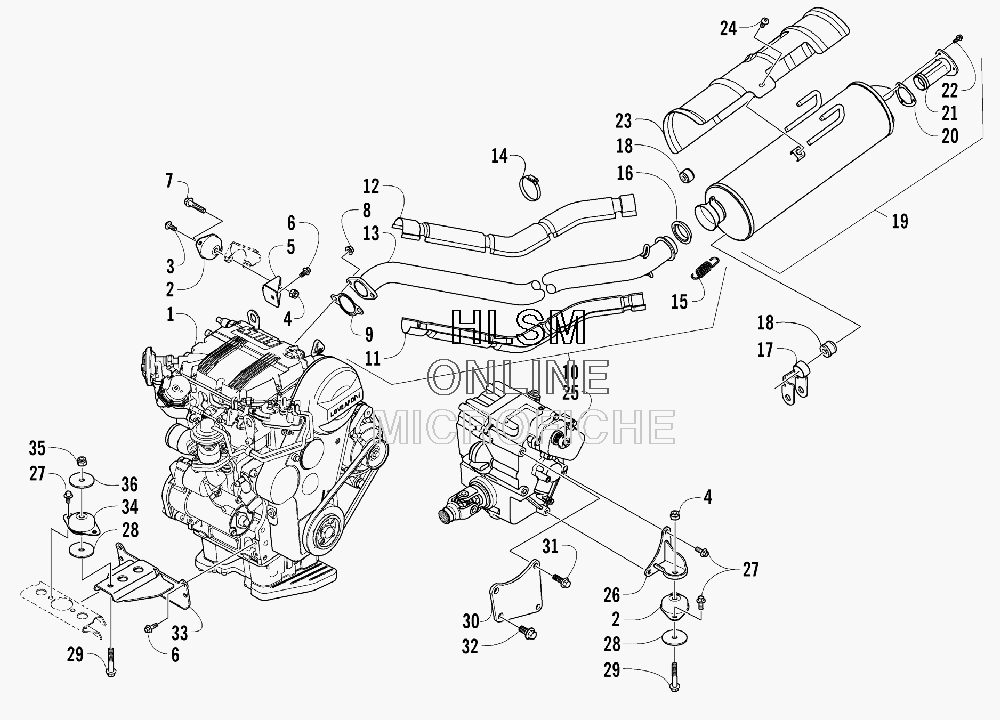

ENGINE AND EXHAUST для Arctic Cat 700 DIESEL (RED) [A2008TBT4DUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10463-044 ENGINEENGINE
-
22406-323 MOUNT, ENGINE - RUBBERMOUNT, ENGINE - RUBBER
-
38468-820 SCREW, MACH-TSPNH M8X1.25X20 CL8.8 BLKSCREW, MACH-TSPNH M8X1.25X20 CL8.8 BLK
-
48422-002 NUT, LOCKNUT, LOCK
-
52506-186 BRACKET, HEAD STAY-BLACKBRACKET, HEAD STAY-BLACK
-
68408-816 SCREW, CAPSCREW, CAP
-
70423-736 SCREW, CAPSCREW, CAP
-
80423-687 NUTNUT
-
93206-291 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
100512-322 PIPE, EXHAUST - ASSEMBLY (INC. 11-14)PIPE, EXHAUST - ASSEMBLY (INC. 11-14)
-
110412-386 ...SHIELD, EXHAUST PIPE - LOWER...SHIELD, EXHAUST PIPE - LOWER
-
120412-385 ...SHIELD, EXHAUST PIPE - UPPER...SHIELD, EXHAUST PIPE - UPPER
-
130512-321 ...PIPE, EXHAUST-BLACK...PIPE, EXHAUST-BLACK
-
140423-317 ...HOSE CLAMP...HOSE CLAMP
-
150612-668 SPRINGSPRING
-
160412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
171506-732 CHANNEL, MUFFLER SUPPORT (INC. ONE NO. 18)CHANNEL, MUFFLER SUPPORT (INC. ONE NO. 18)
-
180412-215 ...BUSHING...BUSHING
-
190512-306 MUFFLER (INC. 20-22)MUFFLER (INC. 20-22)
-
200412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
210512-219 ...ARRESTER, SPARK...ARRESTER, SPARK
-
228408-616 ...SCREW, CAP...SCREW, CAP
-
230412-373 COVER, MUFFLERCOVER, MUFFLER
-
248477-610 SCREW, MACH-TSTRH M6X1.0X10 Z & BLKSCREW, MACH-TSTRH M6X1.0X10 Z & BLK
-
250502-993 GEARCASE - ASSEMBLYGEARCASE - ASSEMBLY
-
262506-190 BRACKET, MOUNTING - ENGINE - RIGHT (BLACK)BRACKET, MOUNTING - ENGINE - RIGHT (BLACK)
-
262506-191 BRACKET, MOUNTING - ENGINE - LEFT (BLACK)BRACKET, MOUNTING - ENGINE - LEFT (BLACK)
-
278408-820 SCREW, CAPSCREW, CAP
-
282506-061 WASHER, ENGINE MOUNTWASHER, ENGINE MOUNT
-
298408-055 SCREW, CAPSCREW, CAP
-
300408-015 PLATE, MOUNTING - ENGINE/TRANSMISSIONPLATE, MOUNTING - ENGINE/TRANSMISSION
-
318409-030 SCREW, CAP-HFH M10X1.25X30 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X30 CL10.9 Z & Y
-
320423-685 SCREW, CAP-HFH M12-1.75X25 CL8.8 BLKSCREW, CAP-HFH M12-1.75X25 CL8.8 BLK
-
332506-189 BRACKET, MOUNTING - ENGINE - FRONT (BLACK)BRACKET, MOUNTING - ENGINE - FRONT (BLACK)
-
342406-322 MOUNT, ENGINE - RUBBERMOUNT, ENGINE - RUBBER
-
350423-737 NUTNUT
-
360423-073 WASHER, FLATWASHER, FLAT
