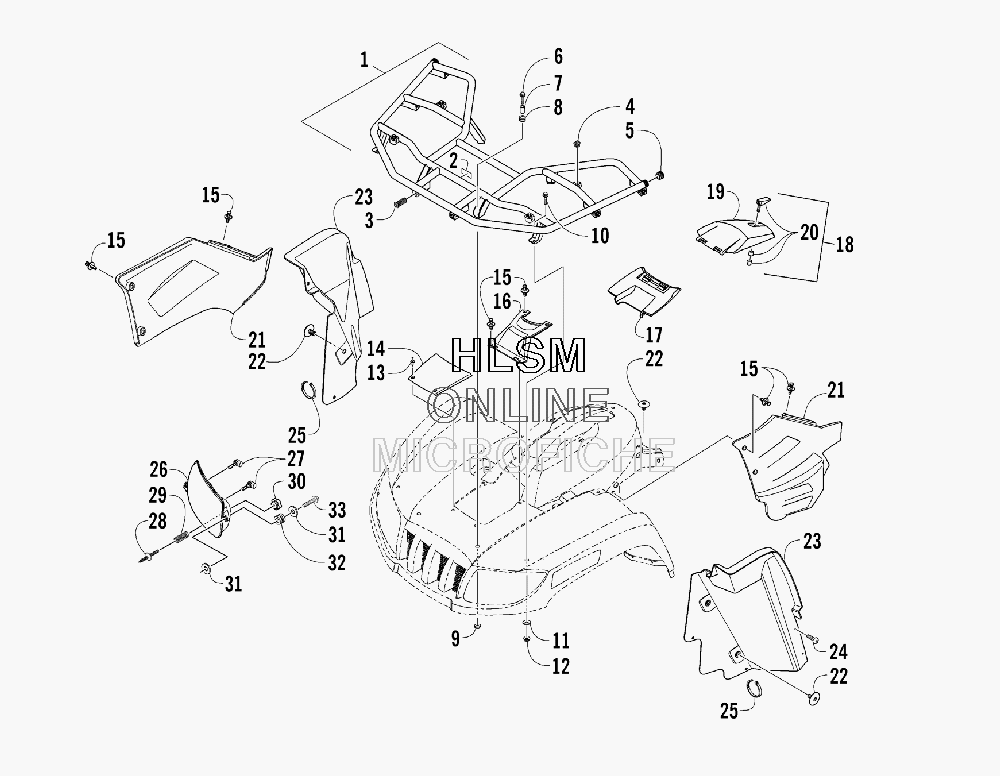

FRONT RACK AND HEADLIGHT ASSEMBLIES для Arctic Cat 700 DIESEL (RED) [A2008TBT4DUSR] - 2008 года выпуска
-
№АртикулНазвание
-
11506-883 RACK - FRONT - ASSEMBLY (INC. 2-5)RACK - FRONT - ASSEMBLY (INC. 2-5)
-
20411-576 ...DECAL, WARNING - FRONT RACK LOAD (100 LB.)...DECAL, WARNING - FRONT RACK LOAD (100 LB.)
-
32406-014 ...BUSHING, RACK...BUSHING, RACK
-
40441-592 ...BUSHING, RACK...BUSHING, RACK
-
51441-049 ...PLUG, RACK...PLUG, RACK
-
68410-830 SCREW, CAP-HFH M8X1.25X30 CL8.8 RIE BLKSCREW, CAP-HFH M8X1.25X30 CL8.8 RIE BLK
-
70423-669 SPACERSPACER
-
80423-465 GROMMETGROMMET
-
98432-802 NUT, LOCKNUT, LOCK
-
100423-654 SCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLKSCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK
-
118050-222 WASHERWASHER
-
120423-540 NUT, LOCKNUT, LOCK
-
130423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
141406-358 COVER, ACCESSCOVER, ACCESS
-
150623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
161406-484 COVER, STEERING POSTCOVER, STEERING POST
-
170470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
182506-234 LID, STORAGE BOX W/LATCH (INC. 19-20)LID, STORAGE BOX W/LATCH (INC. 19-20)
-
190470-514 ...LID, STORAGE BOX...LID, STORAGE BOX
-
201406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
212406-404 PANEL, SIDE - LOWER - RIGHT (BLACK)PANEL, SIDE - LOWER - RIGHT (BLACK)
-
212406-405 PANEL, SIDE - LOWER - LEFT (BLACK)PANEL, SIDE - LOWER - LEFT (BLACK)
-
220423-101 SCREW, BODYSCREW, BODY
-
232506-434 PANEL, SPLASH - RIGHTPANEL, SPLASH - RIGHT
-
232506-383 PANEL, SPLASH - LEFTPANEL, SPLASH - LEFT
-
240423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
250123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
260509-034 HEADLIGHT ASSEMBLY - RIGHT (INC. 27)HEADLIGHT ASSEMBLY - RIGHT (INC. 27)
-
260509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 27)HEADLIGHT ASSEMBLY - LEFT (INC. 27)
-
270409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
280423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
290423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
300423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
318050-217 WASHERWASHER
-
320423-447 GROMMETGROMMET
-
330623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
