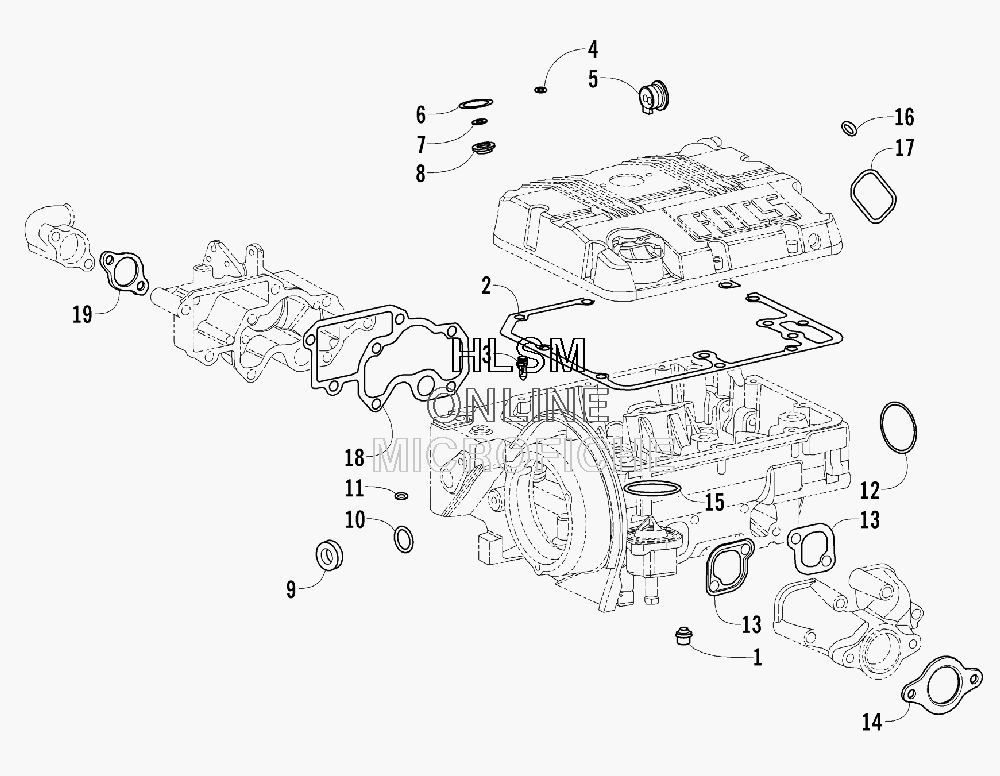

TOP END GASKET SET ASSEMBLY для Arctic Cat 700 DIESEL (RED) [A2008TBT4DUSR] - 2008 года выпуска
-
№АртикулНазвание
-
3206-328 TOP END GASKET SETTOP END GASKET SET
-
13206-152 RETAINER, VALVE - CYLINDER HEADRETAINER, VALVE - CYLINDER HEAD
-
23206-086 GASKET, ROCKER ARM COVERGASKET, ROCKER ARM COVER
-
33206-084 CONNECTION, ROCKER ARM COVERCONNECTION, ROCKER ARM COVER
-
43206-095 SEAL, RING - DELIVERY PIPESEAL, RING - DELIVERY PIPE
-
53206-094 SEAL, DELIVERY PIPESEAL, DELIVERY PIPE
-
63206-122 O-RING, INJECTION NOZZLEO-RING, INJECTION NOZZLE
-
73206-124 GASKET, COPPER - INJECTION NOZZLEGASKET, COPPER - INJECTION NOZZLE
-
83206-059 ARRESTER, SPARK - INJECTION NOZZLEARRESTER, SPARK - INJECTION NOZZLE
-
93206-208 RING, SEAL - GOVERNOR COVERRING, SEAL - GOVERNOR COVER
-
103206-210 SEAL, OIL - GOVERNOR COVERSEAL, OIL - GOVERNOR COVER
-
113206-226 SEAL, GOVERNOR LEVERSEAL, GOVERNOR LEVER
-
123206-313 O-RING, CYLINDER HEAD FLANGEO-RING, CYLINDER HEAD FLANGE
-
133206-291 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
143206-296 GASKET, EXHAUSTGASKET, EXHAUST
-
153206-260 O-RING, THERMOSTATO-RING, THERMOSTAT
-
163206-010 WASHER, CRUSHWASHER, CRUSH
-
173206-256 O-RING, FUEL FEED PUMPO-RING, FUEL FEED PUMP
-
183206-277 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
193206-289 GASKET, INTAKE FLANGEGASKET, INTAKE FLANGE
