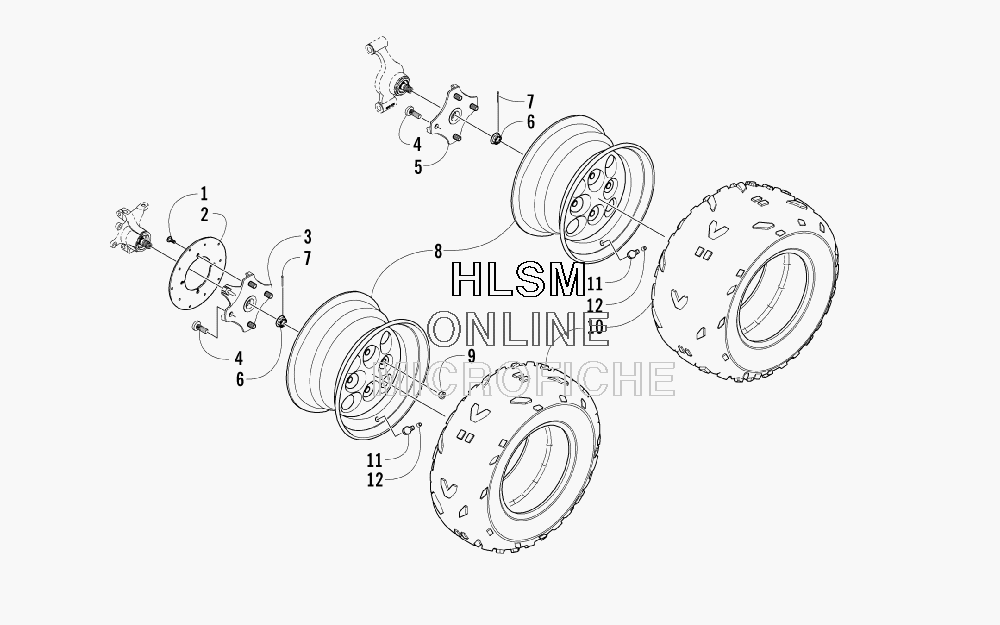

WHEEL AND TIRE ASSEMBLY для Arctic Cat 700 DIESEL (RED) [A2008TBT4DUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDER W/LOCTITESCREW, SHOULDER W/LOCTITE
-
21402-225 KIT-DISC, BRAKEKIT-DISC, BRAKE
-
30502-599 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
50502-601 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
50502-599 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
81402-127 WHEEL 12" - FRONT - PLATINUM (RED)WHEEL 12" - FRONT - PLATINUM (RED)
-
81402-115 WHEEL 12" - REAR - PLATINUM (RED)WHEEL 12" - REAR - PLATINUM (RED)
-
80402-856 WHEEL 12" - FRONT - GRAY (GREEN)WHEEL 12" - FRONT - GRAY (GREEN)
-
80402-858 WHEEL 12" - REAR - GRAY (GREEN)WHEEL 12" - REAR - GRAY (GREEN)
-
90423-408 NUT, MOUNTING - WHEELNUT, MOUNTING - WHEEL
-
101402-658 TIRE, DUNLOP-AT25X8-12 QUADMAX - FRONTTIRE, DUNLOP-AT25X8-12 QUADMAX - FRONT
-
101402-659 TIRE, DUNLOP-AT25X10-12 QUADMAX - REARTIRE, DUNLOP-AT25X10-12 QUADMAX - REAR
-
110402-064 STEM, VALVE (INC. 12)STEM, VALVE (INC. 12)
-
120402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
