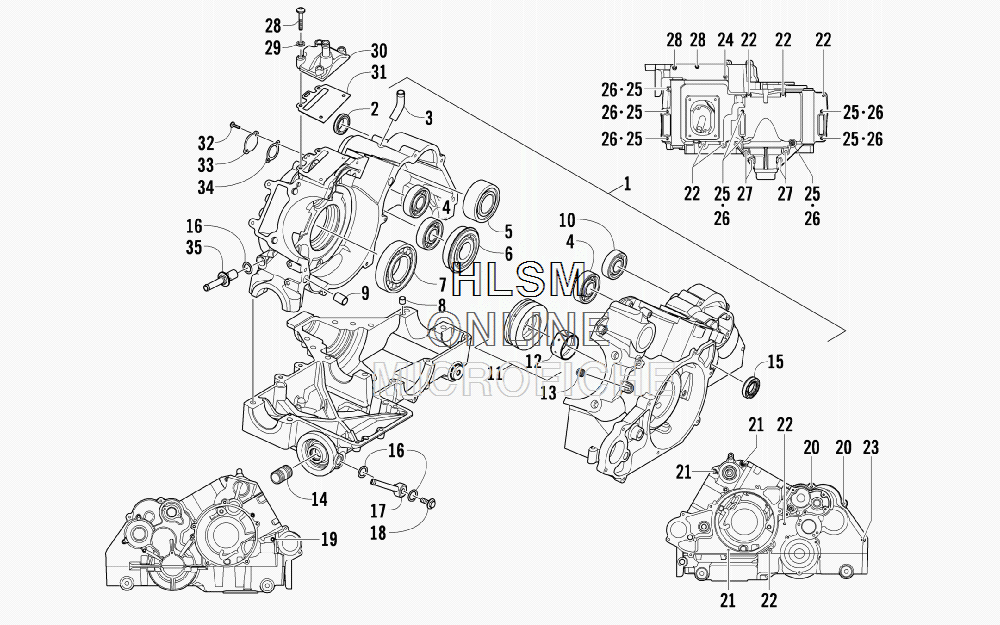

CRANKCASE ASSEMBLY для Arctic Cat TRV 1000 H2 EFI CRUISER RED [A2010TCW4EUSI] - 2010 года выпуска
-
№АртикулНазвание
-
10801-074 CRANKCASE - ASSEMBLY (INC. 2-15)CRANKCASE - ASSEMBLY (INC. 2-15)
-
20830-035 ...SEAL, DRIVESHAFT...SEAL, DRIVESHAFT
-
30801-118 ...PIPE, BREATHER...PIPE, BREATHER
-
40832-050 ...BEARING...BEARING
-
50832-048 ...BEARING...BEARING
-
60832-058 ...BEARING...BEARING
-
70832-042 ...BEARING...BEARING
-
80829-001 ...PIN, DOWEL...PIN, DOWEL
-
90829-002 ...PIN, DOWEL...PIN, DOWEL
-
100832-049 ...BEARING...BEARING
-
110832-055 ...BEARING - ASSEMBLY (INC. 12)...BEARING - ASSEMBLY (INC. 12)
-
120832-057 ......BEARING......BEARING
-
130801-002 ...PLUG, ENGINE CASE...PLUG, ENGINE CASE
-
140812-008 ...UNION, OIL FILTER...UNION, OIL FILTER
-
150822-052 ...SEAL, COUNTERSHAFT - RIGHT...SEAL, COUNTERSHAFT - RIGHT
-
160812-026 GASKET, WASHERGASKET, WASHER
-
170812-028 FITTING, OIL - 40?FITTING, OIL - 40?
-
180812-025 BOLT, OILBOLT, OIL
-
198468-685 SCREW,MACH-TSPNH M6X1.0X85 CL8.8 BLKSCREW,MACH-TSPNH M6X1.0X85 CL8.8 BLK
-
208468-650 SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLKSCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK
-
218468-625 SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLKSCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK
-
228468-665 SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLKSCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK
-
238468-670 SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLKSCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK
-
248468-640 SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLKSCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK
-
258412-870 SCREW, CAPSCREW, CAP
-
260830-008 WASHERWASHER
-
278412-830 SCREW, CAPSCREW, CAP
-
288468-630 SCREW, MACHINESCREW, MACHINE
-
290830-107 GASKETGASKET
-
300801-088 COVER, BREATHERCOVER, BREATHER
-
310830-160 GASKET, BREATHERGASKET, BREATHER
-
328470-520 SCREW, MACHINESCREW, MACHINE
-
330818-107 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
340830-134 GASKETGASKET
-
350812-051 FITTING, OIL - THREADEDFITTING, OIL - THREADED
