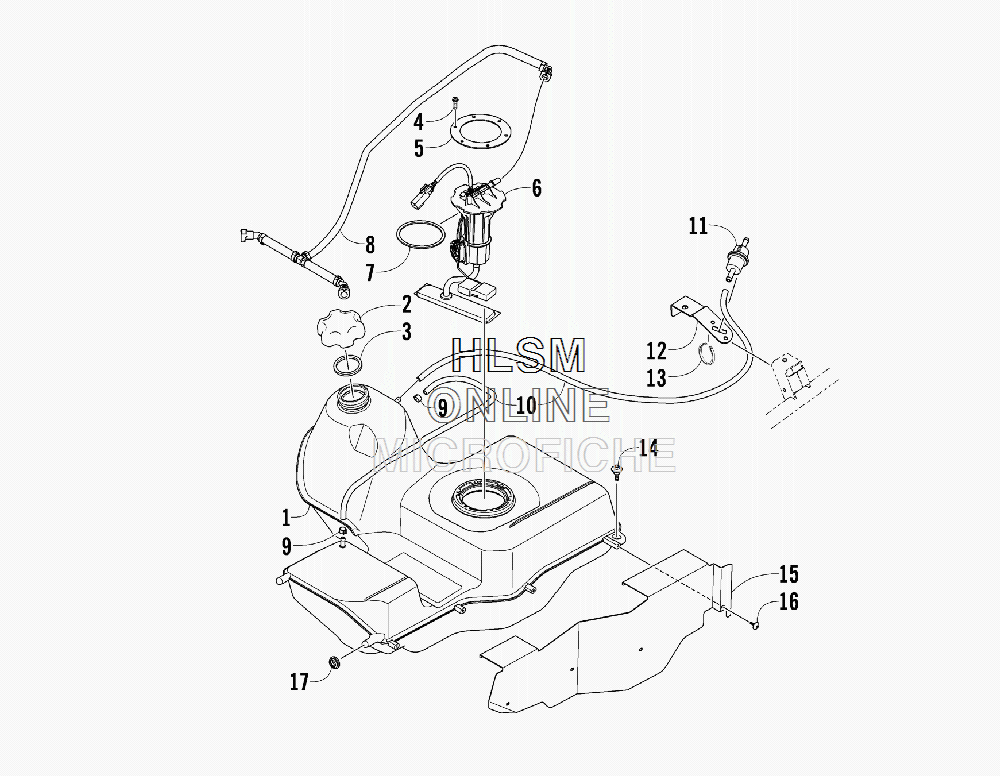

GAS TANK ASSEMBLY для Arctic Cat TRV 1000 H2 EFI CRUISER RED [A2010TCW4EUSI] - 2010 года выпуска

№

Артикул

Название
1

0570-308 TANK, GAS - ASSEMBLY (INC. 2-5)

TANK, GAS - ASSEMBLY (INC. 2-5)

77 370 ₽
2

0470-438 ...CAP, GAS TANK (INC. 3)

...CAP, GAS TANK (INC. 3)

2 070 ₽
3

0109-733 ......GASKET, GAS TANK CAP

......GASKET, GAS TANK CAP

540 ₽
4

0423-898 ...SCREW, SELF-TAPPING

...SCREW, SELF-TAPPING

90 ₽
5

2670-042 ...PLATE, RETAINING

...PLATE, RETAINING

4 150 ₽
6

0570-323 PUMP, FUEL - ASSEMBLY (INC. 7)

PUMP, FUEL - ASSEMBLY (INC. 7)

72 380 ₽
7

0470-838 ...SEAL

...SEAL

480 ₽
8

0570-282 HOSE, FUEL - ASSEMBLY

HOSE, FUEL - ASSEMBLY

23 290 ₽
9

0423-688 CLAMP, HOSE

CLAMP, HOSE

360 ₽
10

0410-070 HOSE, GASLINE - 25 FT

HOSE, GASLINE - 25 FT

9 980 ₽
11

0510-335 FILTER, IN-LINE

FILTER, IN-LINE

2 700 ₽
12

0470-794 BRACKET, MOUNTING - FILTER

BRACKET, MOUNTING - FILTER

2 490 ₽
13

0123-788 TIE, CABLE - 8 IN.

TIE, CABLE - 8 IN.

20 ₽
14

0423-732 SCREW, SHOULDER

SCREW, SHOULDER

400 ₽
15

0470-822 SHIELD, HEAT

SHIELD, HEAT

12 270 ₽
16

0623-797 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

650 ₽
17

0423-460 GROMMET

GROMMET

650 ₽
