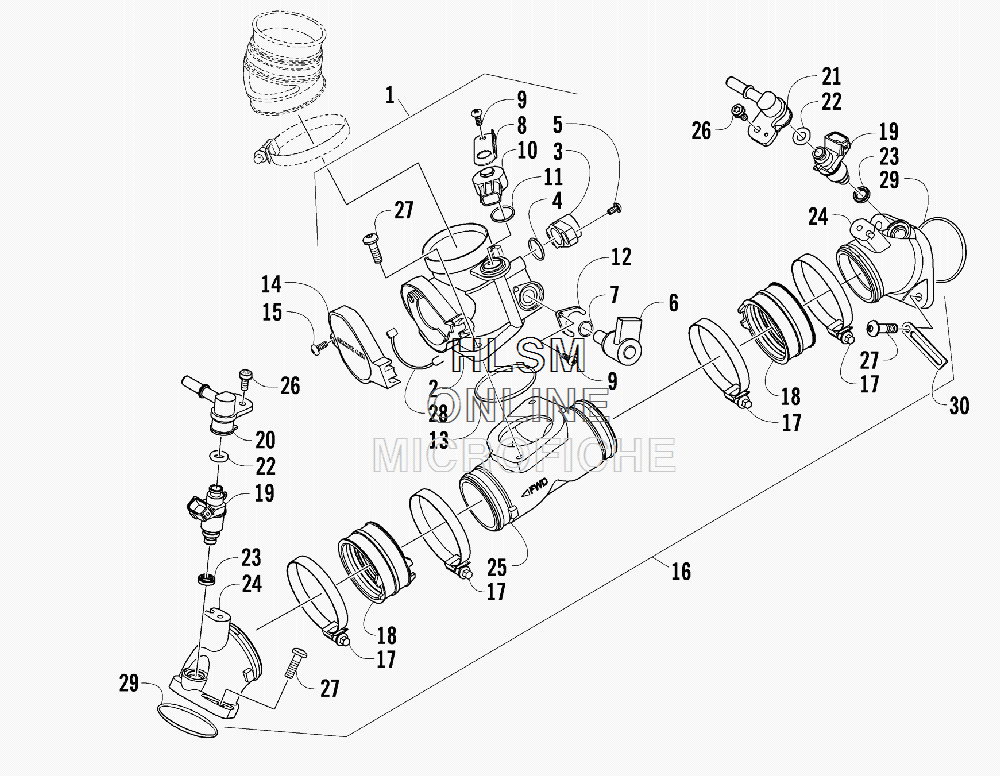

THROTTLE BODY ASSEMBLY для Arctic Cat TRV 1000 H2 EFI CRUISER RED [A2010TCW4EUSI] - 2010 года выпуска
-
№АртикулНазвание
-
10470-686 THROTTLE - ASSEMBLY (INC. 2-15)THROTTLE - ASSEMBLY (INC. 2-15)
-
30430-072 ...SENSOR, THROTTLE POSITION...SENSOR, THROTTLE POSITION
-
45507-234 ...O-RING, THROTTLE POSITION SENSOR...O-RING, THROTTLE POSITION SENSOR
-
55507-231 ...SCREW, MACHINE...SCREW, MACHINE
-
60430-074 ...VALVE, ISC...VALVE, ISC
-
75507-233 ...O-RING, ISC VALVE...O-RING, ISC VALVE
-
85507-227 ...BRACKET, MAP SENSOR...BRACKET, MAP SENSOR
-
95507-117 ...SCREW, MACHINE...SCREW, MACHINE
-
100430-073 ...SENSOR, MAP...SENSOR, MAP
-
115507-232 ...O-RING, MAP SENSOR...O-RING, MAP SENSOR
-
125507-229 ...PLATE, ISC VALVE...PLATE, ISC VALVE
-
135507-235 ...O-RING...O-RING
-
145507-223 ...COVER...COVER
-
155507-037 ...SCREW, MACHINE...SCREW, MACHINE
-
160570-230 MANIFOLD, INTAKE - ASSEMBLY (INC. 17-26)MANIFOLD, INTAKE - ASSEMBLY (INC. 17-26)
-
170423-066 ...CLAMP...CLAMP
-
180470-660 ...BOOT, INTAKE - MANIFOLD...BOOT, INTAKE - MANIFOLD
-
190470-688 ...INJECTOR, FUEL...INJECTOR, FUEL
-
200470-763 ...RAIL, FUEL - FRONT CYLINDER...RAIL, FUEL - FRONT CYLINDER
-
210470-764 ...RAIL, FUEL - REAR CYLINDER...RAIL, FUEL - REAR CYLINDER
-
220470-767 ...O-RING, FUEL INJECTOR...O-RING, FUEL INJECTOR
-
230470-768 ...RING, SEAL - FUEL INJECTOR...RING, SEAL - FUEL INJECTOR
-
240570-140 ...MANIFOLD, INTAKE...MANIFOLD, INTAKE
-
250570-156 ...PLENUM, INTAKE...PLENUM, INTAKE
-
260423-371 ...SCREW, MACHINE...SCREW, MACHINE
-
270826-008 SCREW, MACHINESCREW, MACHINE
-
280487-046 CABLE, THROTTLECABLE, THROTTLE
-
290830-090 O-RINGO-RING
-
303002-964 CLAMP, WIRECLAMP, WIRE
