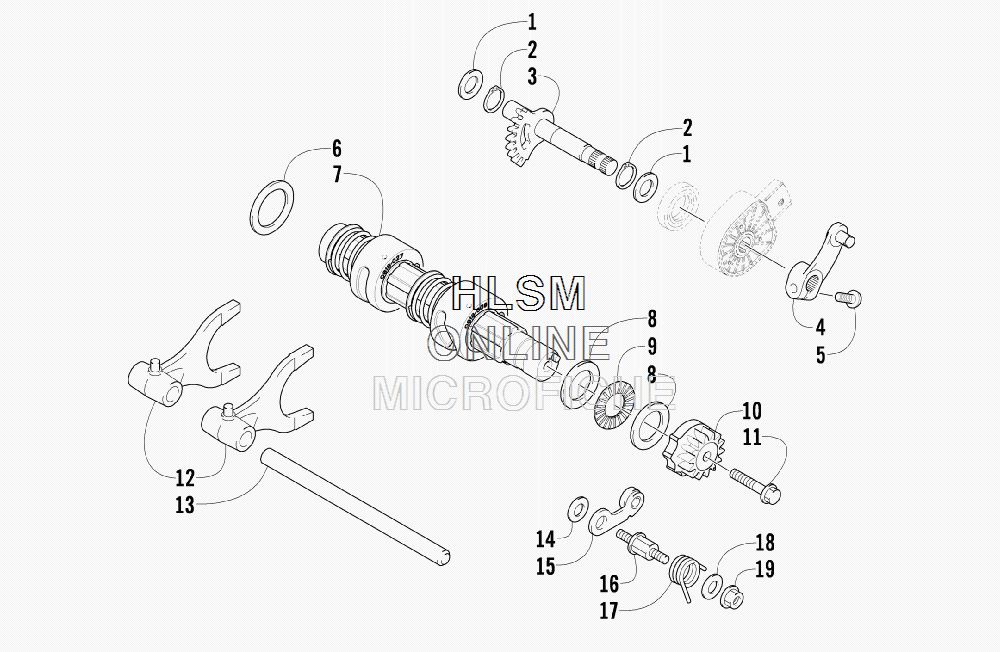

GEAR SHIFTING ASSEMBLY для Arctic Cat TRV 1000 H2 EFI CRUISER RED [A2010TCW4EUSI] - 2010 года выпуска
-
№АртикулНазвание
-
10828-036 WASHERWASHER
-
20831-010 RING, RETAININGRING, RETAINING
-
30818-105 SHAFT, SUB-GEAR SHIFTSHAFT, SUB-GEAR SHIFT
-
40818-014 ARM, SHIFTARM, SHIFT
-
58468-620 SCREW, MACHINESCREW, MACHINE
-
60828-040 WASHERWASHER
-
70818-046 SHAFT, GEAR SHIFT - ASSEMBLYSHAFT, GEAR SHIFT - ASSEMBLY
-
80828-095 WASHER, THRUSTWASHER, THRUST
-
90832-052 BEARING, THRUSTBEARING, THRUST
-
100818-055 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
110826-006 SCREW, CAPSCREW, CAP
-
120818-072 FORK, SHIFTFORK, SHIFT
-
130818-006 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
140828-038 WASHERWASHER
-
150818-002 STOPPER, CAMSTOPPER, CAM
-
160818-004 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
170818-090 SPRINGSPRING
-
180828-035 WASHERWASHER
-
198424-602 NUTNUT
