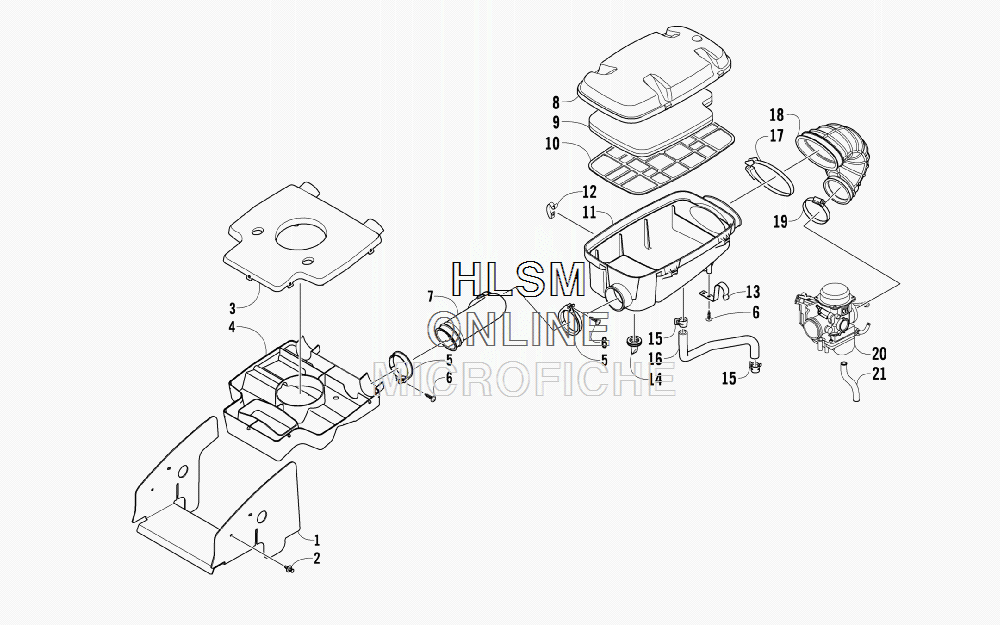

AIR INTAKE ASSEMBLY для Arctic Cat TRV 400 H1 BLACK [A2010TBG4BUSP] - 2010 года выпуска
-
№АртикулНазвание
-
11406-747 SHIELD, INTAKESHIELD, INTAKE
-
20623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
30413-091 DIVERTER, AIR - TOPDIVERTER, AIR - TOP
-
40413-093 DIVERTER, AIR - BOTTOMDIVERTER, AIR - BOTTOM
-
50423-551 CLAMPCLAMP
-
60423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70470-529 DUCT, AIR INTAKEDUCT, AIR INTAKE
-
80470-877 COVER, AIR INTAKECOVER, AIR INTAKE
-
90470-663 FILTER, AIRFILTER, AIR
-
100470-516 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
110470-853 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
120423-455 CLIP, SPRINGCLIP, SPRING
-
130423-454 BRACKET, RETAININGBRACKET, RETAINING
-
140470-442 VALVE, DRAINVALVE, DRAIN
-
151623-281 CLAMP, HOSECLAMP, HOSE
-
160410-173 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
170423-554 CLAMPCLAMP
-
180470-517 BOOT, CARBURETORBOOT, CARBURETOR
-
190423-019 CLAMPCLAMP
-
200470-859 CARBURETOR, CVK-36CARBURETOR, CVK-36
-
210510-592 HOSE, DRAINHOSE, DRAIN
