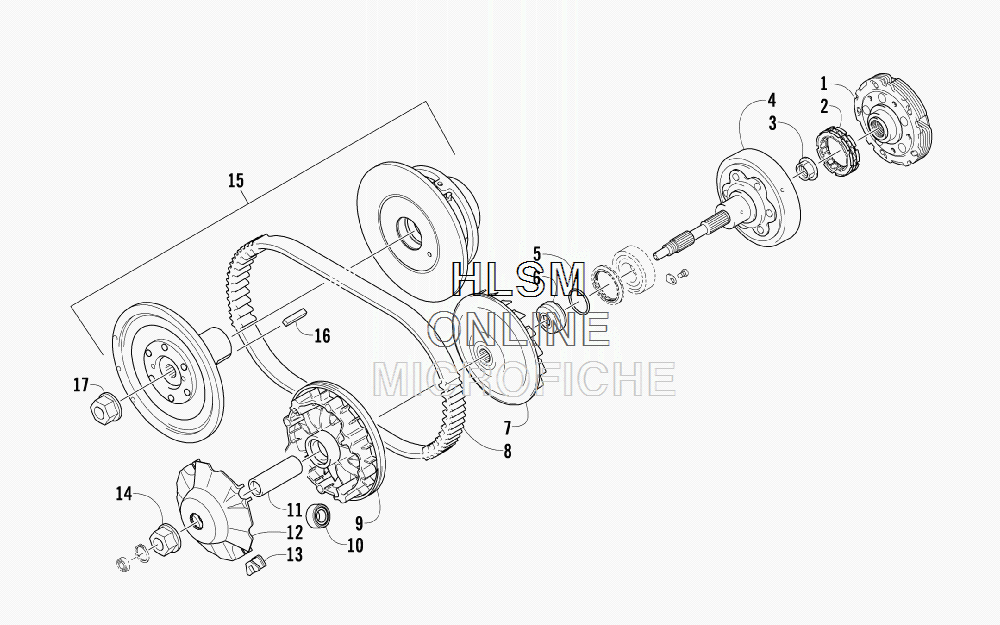

TRANSMISSION ASSEMBLY для Arctic Cat TRV 400 H1 BLACK [A2010TBG4BUSP] - 2010 года выпуска
-
№АртикулНазвание
-
10823-197 SHOE, CLUTCH - ASSEMBLYSHOE, CLUTCH - ASSEMBLY
-
20823-198 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
30827-050 NUTNUT
-
40823-200 HOUSING, CLUTCHHOUSING, CLUTCH
-
50470-531 O-RINGO-RING
-
60823-058 SPACERSPACER
-
70823-203 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
80823-228 BELT, DRIVEBELT, DRIVE
-
90823-207 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
100823-210 ROLLER, MOVABLE DRIVE FACEROLLER, MOVABLE DRIVE FACE
-
110823-206 SPACER, MOVABLE DRIVE FACESPACER, MOVABLE DRIVE FACE
-
120823-213 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
130823-214 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
143323-165 NUTNUT
-
150823-294 CLUTCH, DRIVEN - ASSEMBLY (INC. 16)CLUTCH, DRIVEN - ASSEMBLY (INC. 16)
-
160829-043 ...KEY...KEY
-
170827-058 NUTNUT
