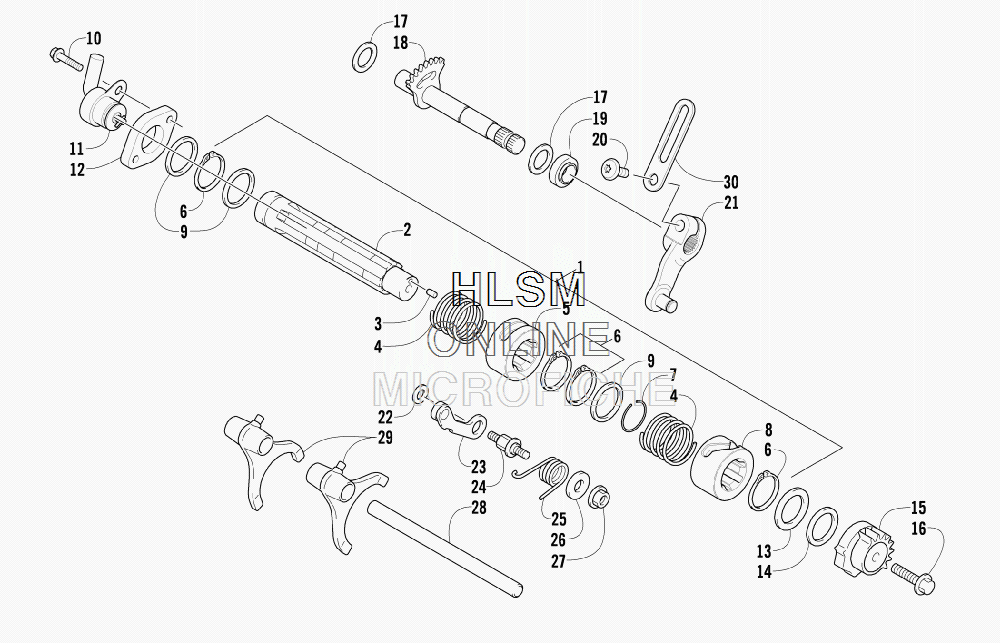

GEAR SHIFTING ASSEMBLY для Arctic Cat TRV 400 H1 BLACK [A2010TBG4BUSP] - 2010 года выпуска
-
№АртикулНазвание
-
10818-024 SHAFT, GEAR SHIFT - ASSEMBLY (INC. 2-8 AND TWO NO. 9)SHAFT, GEAR SHIFT - ASSEMBLY (INC. 2-8 AND TWO NO. 9)
-
20818-044 ...SHAFT, GEAR SHIFT...SHAFT, GEAR SHIFT
-
33304-439 ...PIN, DOWEL...PIN, DOWEL
-
40818-060 ...SPRING...SPRING
-
50818-019 ...CAM, REVERSE...CAM, REVERSE
-
63304-147 ...CIRCLIP...CIRCLIP
-
70831-016 ...C-RING...C-RING
-
80818-023 ...CAM, GEAR SHIFT...CAM, GEAR SHIFT
-
90828-079 ...WASHER...WASHER
-
103303-252 SCREW, CAPSCREW, CAP
-
113313-434 SWITCH, GEAR POSITIONSWITCH, GEAR POSITION
-
120818-073 SPACER, SPEED SENSORSPACER, SPEED SENSOR
-
130828-081 WASHER, THRUSTWASHER, THRUST
-
140828-080 WASHER, THRUSTWASHER, THRUST
-
150818-061 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
163304-569 SCREW, CAPSCREW, CAP
-
170828-084 WASHERWASHER
-
180818-022 SHAFT, SUB-GEAR SHIFTSHAFT, SUB-GEAR SHIFT
-
190830-179 SEALSEAL
-
208468-620 SCREW, MACHINESCREW, MACHINE
-
210818-014 ARM, SELECTARM, SELECT
-
220828-083 WASHERWASHER
-
230818-084 STOPPER, CAMSTOPPER, CAM
-
240818-062 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
250818-020 SPRINGSPRING
-
260828-082 WASHERWASHER
-
273303-331 NUTNUT
-
280818-021 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
290818-088 FORK, SHIFTFORK, SHIFT
-
303002-964 CLAMP, WIRECLAMP, WIRE
