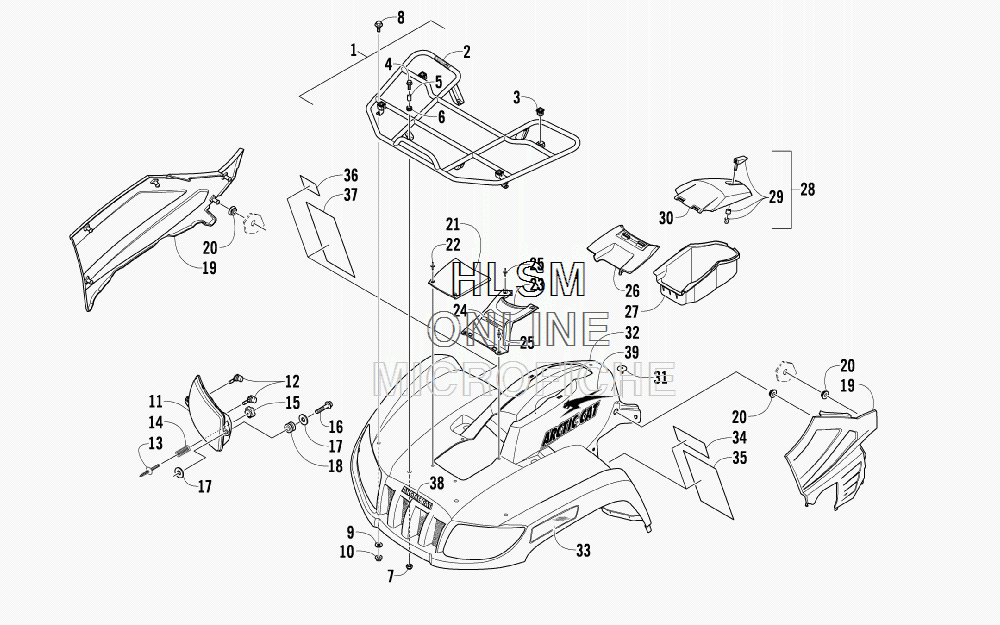

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat TRV 400 H1 BLACK [A2010TBG4BUSP] - 2010 года выпуска
-
№АртикулНазвание
-
12506-106 RACK, FRONT - ASSEMBLY (INC. 2-3)RACK, FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-830 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
100423-540 NUT, LOCKNUT, LOCK
-
110509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
-
110509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 12)HEADLIGHT ASSEMBLY - LEFT (INC. 12)
-
120409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
130423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
140423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
150423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
160623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
178050-217 WASHERWASHER
-
180423-447 GROMMETGROMMET
-
192406-326 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
192406-327 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
200423-678 GROMMETGROMMET
-
211406-358 COVER, ACCESSCOVER, ACCESS
-
220423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
231406-484 COVER, STEERING POSTCOVER, STEERING POST
-
241411-050 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
250623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
260470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
271406-573 BOX, STORAGEBOX, STORAGE
-
282506-234 LID, STORAGE BOX W/LATCH (INC. 29-30)LID, STORAGE BOX W/LATCH (INC. 29-30)
-
291406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
300470-514 ...LID, STORAGE BOX...LID, STORAGE BOX
-
310423-101 SCREW, SHOULDERSCREW, SHOULDER
-
322516-066 PANEL, FENDER - ASSEMBLY - FRONT - BLACK (INC. 33-37)PANEL, FENDER - ASSEMBLY - FRONT - BLACK (INC. 33-37)
-
330411-818 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
330411-819 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
341411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
352411-122 ...DECAL, WARNING - GENERAL/AGE...DECAL, WARNING - GENERAL/AGE
-
360411-894 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
371411-250 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
381411-724 DECAL, FRONTDECAL, FRONT
-
391411-634 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
391411-635 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
