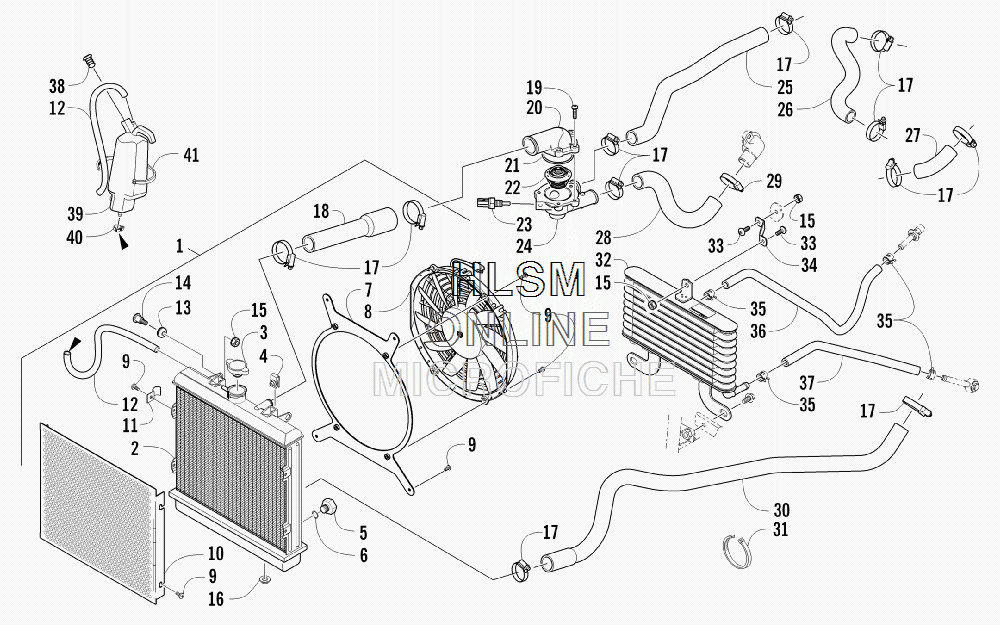

COOLING ASSEMBLY для Arctic Cat 1000 LTD GREEN-BLACK [A2011UIEW1PUSM] - 2011 года выпуска
-
№АртикулНазвание
-
10413-258 RADIATOR ASSEMBLY (INC. 2-13)RADIATOR ASSEMBLY (INC. 2-13)
-
20413-216 ...RADIATOR...RADIATOR
-
30413-255 ...CAP, RADIATOR...CAP, RADIATOR
-
41623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
50413-195 ...PLUG, DRAIN...PLUG, DRAIN
-
61602-213 ...O-RING...O-RING
-
70413-217 ...BRACKET, MOUNTING - FAN...BRACKET, MOUNTING - FAN
-
80413-123 ...FAN, COOLING...FAN, COOLING
-
98470-510 ...SCREW, MACHINE...SCREW, MACHINE
-
100413-214 ...SCREEN, RADIATOR...SCREEN, RADIATOR
-
110423-351 ...CLAMP, WIRE...CLAMP, WIRE
-
120610-011 ...HOSE - 25 FT...HOSE - 25 FT
-
130423-030 ...GROMMET...GROMMET
-
140423-484 SCREW, SHOULDERSCREW, SHOULDER
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160423-028 BUSHING, STEMBUSHING, STEM
-
170423-496 CLAMP, HOSECLAMP, HOSE
-
180410-120 HOSE, COOLANT - RADIATOR/THERMOSTAT - UPPERHOSE, COOLANT - RADIATOR/THERMOSTAT - UPPER
-
198470-520 SCREW, MACHINESCREW, MACHINE
-
200808-092 COVER, THERMOSTATCOVER, THERMOSTAT
-
210830-173 O-RINGO-RING
-
220808-093 THERMOSTATTHERMOSTAT
-
230808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
240808-189 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
250410-195 HOSE, COOLANT - NO. 2HOSE, COOLANT - NO. 2
-
260410-116 HOSE, COOLANTHOSE, COOLANT
-
270410-115 HOSE, COOLANT - CROSSOVERHOSE, COOLANT - CROSSOVER
-
280410-117 HOSE, COOLANT - NO. 1HOSE, COOLANT - NO. 1
-
291623-093 CLAMP, HOSECLAMP, HOSE
-
300410-229 HOSE, COOLANT - LOWERHOSE, COOLANT - LOWER
-
310623-751 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
320413-211 COOLER, OILCOOLER, OIL
-
338476-612 SCREW, MACHINESCREW, MACHINE
-
340513-022 BRACKET, MOUNTING - OIL COOLER - UPPERBRACKET, MOUNTING - OIL COOLER - UPPER
-
350423-632 CLAMP, HOSECLAMP, HOSE
-
360410-149 HOSE, OIL COOLER - INHOSE, OIL COOLER - IN
-
370410-219 HOSE, OIL COOLER - OUTHOSE, OIL COOLER - OUT
-
380413-087 PLUGPLUG
-
390413-086 BOTTLE, OVERFLOWBOTTLE, OVERFLOW
-
400124-045 CLAMP, HOSECLAMP, HOSE
-
410623-316 TIE, CABLE - 14 IN.TIE, CABLE - 14 IN.
