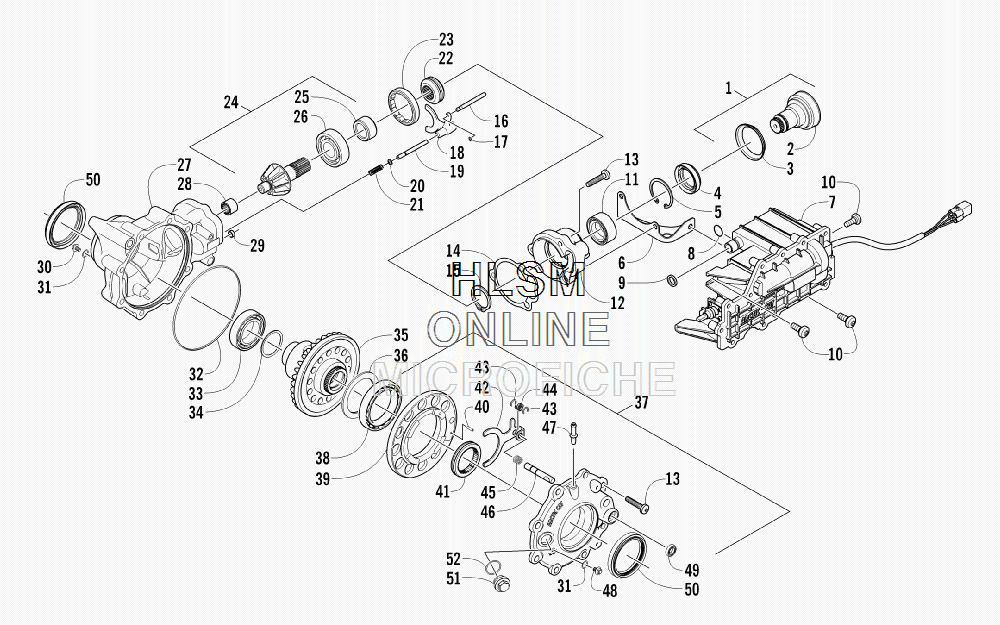

FRONT DRIVE GEARCASE ASSEMBLY для Arctic Cat 1000 LTD GREEN-BLACK [A2011UIEW1PUSM] - 2011 года выпуска
-
№АртикулНазвание
-
-1502-395 COMPLETE FRONT DRIVE GEARCASE ASSEMBLYCOMPLETE FRONT DRIVE GEARCASE ASSEMBLY
-
10502-923 SHAFT, PROPELLER - ASSEMBLY (INC. 2-3)SHAFT, PROPELLER - ASSEMBLY (INC. 2-3)
-
21402-438 ...SHAFT, INPUT...SHAFT, INPUT
-
31402-168 ...DEFLECTOR...DEFLECTOR
-
41402-011 SEALSEAL
-
50423-423 RING, RETAININGRING, RETAINING
-
61502-237 BRACKET, ACTUATORBRACKET, ACTUATOR
-
70502-585 ACTUATOR (INC. 8)ACTUATOR (INC. 8)
-
81402-981 ...O-RING...O-RING
-
90423-892 O-RINGO-RING
-
100423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
111402-043 BEARINGBEARING
-
120502-528 HOUSING, PINIONHOUSING, PINION
-
130423-118 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140402-947 GASKETGASKET
-
150423-417 RING, RETAININGRING, RETAINING
-
160402-997 SHAFT, SELECTORSHAFT, SELECTOR
-
170423-402 RING, RETAININGRING, RETAINING
-
180402-998 FORK, SELECTORFORK, SELECTOR
-
190402-417 SHAFT, SHUTTLESHAFT, SHUTTLE
-
200423-147 O-RINGO-RING
-
210402-999 SPRING, RETURNSPRING, RETURN
-
220402-413 COUPLER, DRIVECOUPLER, DRIVE
-
230402-357 COLLAR, LOCKCOLLAR, LOCK
-
240502-784 GEAR, PINION - ASSEMBLY - 11T(INC. 25-26)GEAR, PINION - ASSEMBLY - 11T(INC. 25-26)
-
250402-336 ...COLLAR, RETAINING...COLLAR, RETAINING
-
260402-327 ...BEARING...BEARING
-
270502-514 HOUSING, GEARCASEHOUSING, GEARCASE
-
280402-328 BEARINGBEARING
-
290402-411 PIN, DOWELPIN, DOWEL
-
301402-210 PLUG, MAGNETIC (INC. ONE NO. 31)PLUG, MAGNETIC (INC. ONE NO. 31)
-
310423-153 ...O-RING...O-RING
-
320423-149 O-RINGO-RING
-
330402-393 BEARINGBEARING
-
340402-405 SHIM, 41 X 49 X 1.3 MMSHIM, 41 X 49 X 1.3 MM
-
340402-406 SHIM, 41 X 49 X 1.4 MMSHIM, 41 X 49 X 1.4 MM
-
340402-407 SHIM, 41 X 49 X 1.5 MMSHIM, 41 X 49 X 1.5 MM
-
340402-408 SHIM, 41 X 49 X 1.6 MMSHIM, 41 X 49 X 1.6 MM
-
340402-409 SHIM, 41 X 49 X 1.7 MMSHIM, 41 X 49 X 1.7 MM
-
351502-554 GEAR, RING - 34TGEAR, RING - 34T
-
361402-074 SHIM, 61 X 69 X 1.3 MMSHIM, 61 X 69 X 1.3 MM
-
361402-075 SHIM, 61 X 69 X 1.4 MMSHIM, 61 X 69 X 1.4 MM
-
361402-076 SHIM, 61 X 69 X 1.5 MMSHIM, 61 X 69 X 1.5 MM
-
361402-077 SHIM, 61 X 69 X 1.6 MMSHIM, 61 X 69 X 1.6 MM
-
361402-078 SHIM, 61 X 69 X 1.7 MMSHIM, 61 X 69 X 1.7 MM
-
371502-389 COVER, GEARCASE (INC. ONE NO. 31, 38-49 AND ONE NO. 50)COVER, GEARCASE (INC. ONE NO. 31, 38-49 AND ONE NO. 50)
-
381402-053 ...BEARING...BEARING
-
390502-413 ...FLANGE, BEARING...FLANGE, BEARING
-
401402-079 ...PIN, ALIGNMENT...PIN, ALIGNMENT
-
411402-042 ...COLLAR, SLIDING...COLLAR, SLIDING
-
421402-054 ...FORK...FORK
-
431402-058 ...RING, RETAINING...RING, RETAINING
-
441402-057 ...SPRING...SPRING
-
451402-063 ...SPRING...SPRING
-
461402-656 ...SHAFT, LOCK...SHAFT, LOCK
-
471402-104 ...FITTING...FITTING
-
481402-211 ...PLUG, OIL LEVEL (INC. ONE NO. 31)...PLUG, OIL LEVEL (INC. ONE NO. 31)
-
491402-056 ...SEAL...SEAL
-
501402-713 ...SEAL...SEAL
-
510402-333 PLUG, FILL (INC. 52)PLUG, FILL (INC. 52)
-
520423-154 ...O-RING...O-RING
