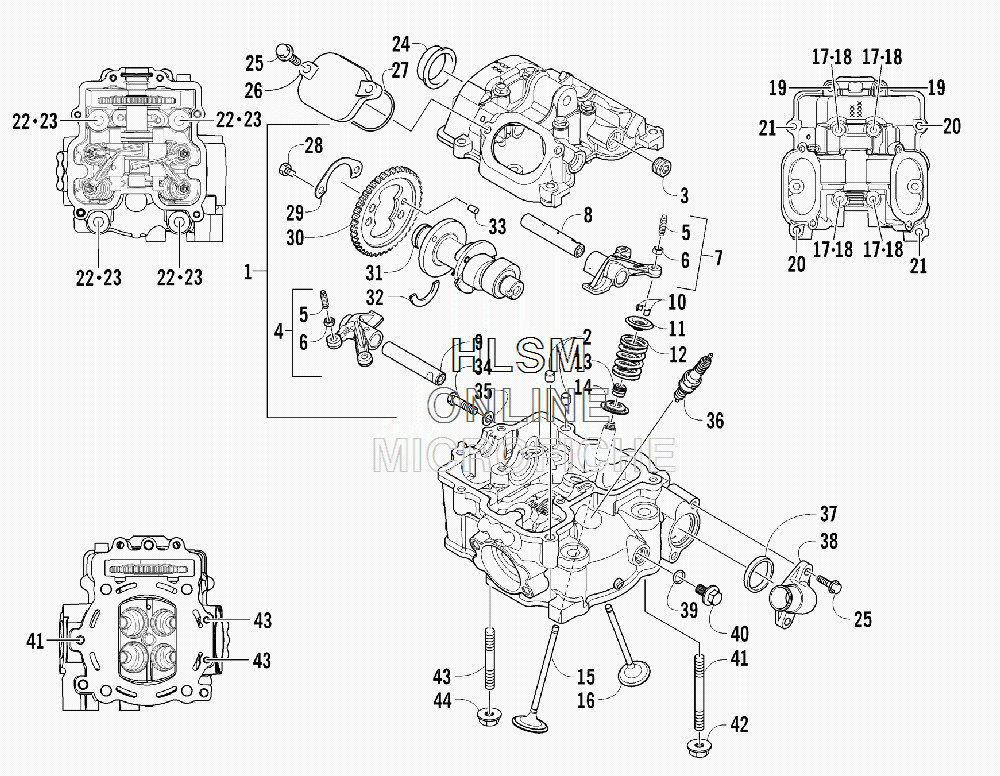

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 1000 LTD GREEN-BLACK [A2011UIEW1PUSM] - 2011 года выпуска
-
№АртикулНазвание
-
10808-175 HEAD, CYLINDER - ASSEMBLY (INC. 2-17)HEAD, CYLINDER - ASSEMBLY (INC. 2-17)
-
20829-048 ...PIN, DOWEL...PIN, DOWEL
-
30831-083 ...PLUG, SHAFT...PLUG, SHAFT
-
40809-237 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
-
50809-240 ......SCREW, ADJUSTER......SCREW, ADJUSTER
-
60827-059 ......NUT......NUT
-
70809-234 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
-
80809-241 ...SHAFT, ROCKER ARM - INTAKE...SHAFT, ROCKER ARM - INTAKE
-
90809-242 ...SHAFT, ROCKER ARM - EXHAUST...SHAFT, ROCKER ARM - EXHAUST
-
100809-233 ...COTTER, VALVE...COTTER, VALVE
-
110809-232 ...RETAINER, SPRING...RETAINER, SPRING
-
120809-231 ...SPRING, VALVE...SPRING, VALVE
-
130830-186 ...SEAL, OIL...SEAL, OIL
-
140809-230 ...SEAT, SPRING - VALVE...SEAT, SPRING - VALVE
-
150809-228 ...VALVE, INTAKE...VALVE, INTAKE
-
160809-229 ...VALVE, EXHAUST...VALVE, EXHAUST
-
170826-149 ...SCREW, CAP...SCREW, CAP
-
180830-155 GASKETGASKET
-
190826-002 SCREW, CAPSCREW, CAP
-
200826-005 SCREW, CAPSCREW, CAP
-
210826-006 SCREW, CAPSCREW, CAP
-
220808-090 SCREW, CAPSCREW, CAP
-
230830-147 WASHERWASHER
-
240808-077 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
250826-007 SCREW, CAPSCREW, CAP
-
260808-003 CAP, INSPECTIONCAP, INSPECTION
-
270830-167 O-RINGO-RING
-
280826-034 SCREW, CAPSCREW, CAP
-
290828-004 PLATE, RETAINERPLATE, RETAINER
-
300809-002 SPROCKETSPROCKET
-
310809-246 CAMSHAFT, FRONT CYLINDERCAMSHAFT, FRONT CYLINDER
-
310809-248 CAMSHAFT, REAR CYLINDERCAMSHAFT, REAR CYLINDER
-
320809-003 C-RINGC-RING
-
330829-049 PIN, DOWELPIN, DOWEL
-
348400-812 SCREW, CAPSCREW, CAP
-
350830-025 WASHER, CRUSHWASHER, CRUSH
-
360217-799 SPARK PLUG - CPR8ESPARK PLUG - CPR8E
-
370830-120 SEALSEAL
-
380808-008 COVER, THERMOSTATCOVER, THERMOSTAT
-
390830-213 O-RINGO-RING
-
400826-157 SCREW, CAPSCREW, CAP
-
410827-062 BOLT, STUDBOLT, STUD
-
428424-804 NUTNUT
-
430827-030 BOLT, STUDBOLT, STUD
-
448424-604 NUTNUT
