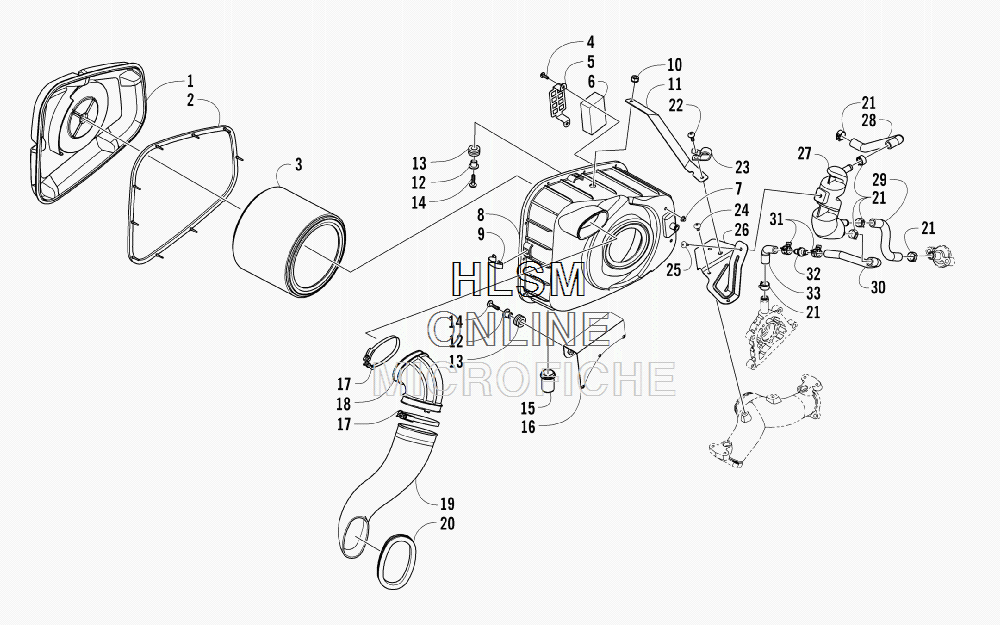

AIR INTAKE ASSEMBLY для Arctic Cat Wildcat 4 1000 - BLACK [U2013W4W1PUSQ] - 2013 года выпуска
-
№АртикулНазвание
-
10470-936 COVER, AIR INTAKECOVER, AIR INTAKE
-
20470-937 GASKETGASKET
-
30470-942 FILTER, AIRFILTER, AIR
-
48477-516 SCREW, MACHINESCREW, MACHINE
-
50470-946 BRACKET, RETAINING - FILTERBRACKET, RETAINING - FILTER
-
60470-891 FILTERFILTER
-
78427-502 NUT, LOCKNUT, LOCK
-
80570-347 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
90423-455 CLIP, SPRINGCLIP, SPRING
-
100623-038 NUT W/WASHERNUT W/WASHER
-
110470-977 BRACKET, SUPPORTBRACKET, SUPPORT
-
120423-669 SPACERSPACER
-
130423-465 GROMMETGROMMET
-
148476-625 SCREW, MACHINESCREW, MACHINE
-
150470-947 VALVE, DRAINVALVE, DRAIN
-
160470-939 BRACKET, MOUNTING - AIR INTAKEBRACKET, MOUNTING - AIR INTAKE
-
170423-730 CLAMPCLAMP
-
180470-940 BOOT, AIR-INBOOT, AIR-IN
-
190470-938 DUCT, INTAKEDUCT, INTAKE
-
200470-945 GROMMETGROMMET
-
210423-045 CLAMP, HOSECLAMP, HOSE
-
228476-616 SCREW, MACHINESCREW, MACHINE
-
231623-675 CLAMP, ROUTINGCLAMP, ROUTING
-
248476-612 SCREW, MACHINESCREW, MACHINE
-
250623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
260470-967 BRACKET, MOUNTING - OIL SEPARATORBRACKET, MOUNTING - OIL SEPARATOR
-
270470-857 SEPARATOR, OILSEPARATOR, OIL
-
280410-243 HOSE, VENTHOSE, VENT
-
290410-258 HOSE, VENTHOSE, VENT
-
300410-245 HOSE, VENTHOSE, VENT
-
311623-281 CLAMP, HOSECLAMP, HOSE
-
320470-943 VALVE, CHECKVALVE, CHECK
-
330410-244 HOSE, VENTHOSE, VENT
