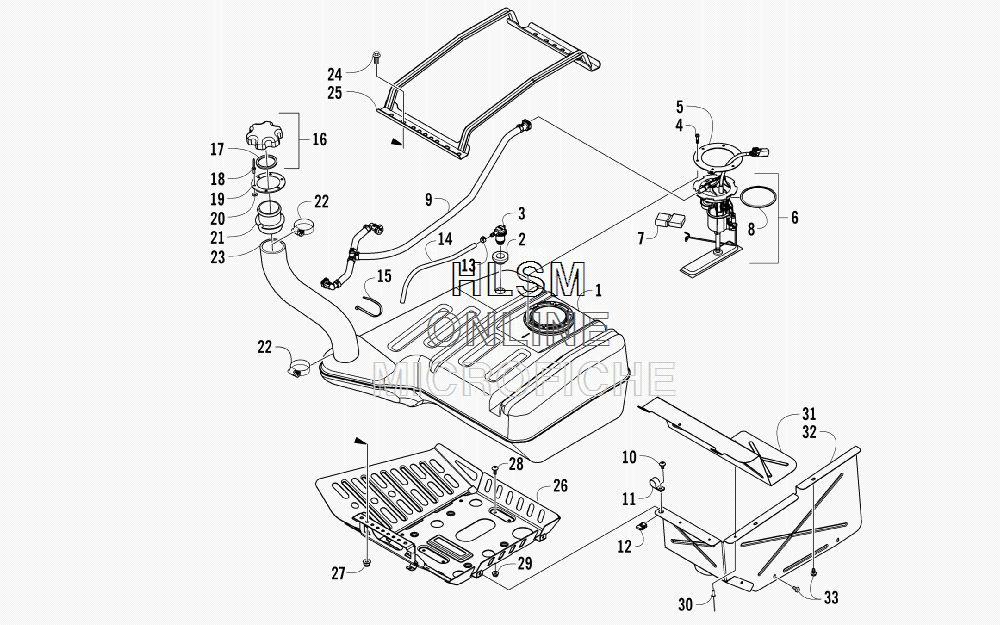

GAS TANK ASSEMBLY для Arctic Cat Wildcat 4 1000 - BLACK [U2013W4W1PUSQ] - 2013 года выпуска
-
№АртикулНазвание
-
10570-359 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
21670-822 ...GROMMET...GROMMET
-
31670-787 ...VALVE, CHECK...VALVE, CHECK
-
40423-898 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
52670-042 ...PLATE, RETAINING...PLATE, RETAINING
-
60570-358 PUMP, FUEL - ASSEMBLY (INC. 7)PUMP, FUEL - ASSEMBLY (INC. 7)
-
72670-235 ...FLOAT...FLOAT
-
80470-838 SEALSEAL
-
90570-343 HOSE, GASLINEHOSE, GASLINE
-
108476-616 SCREW, MACHINESCREW, MACHINE
-
111623-675 CLAMP, ROUTINGCLAMP, ROUTING
-
120423-577 CLIP, U-NUTCLIP, U-NUT
-
130423-688 CLAMP, HOSECLAMP, HOSE
-
140410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
150123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
150123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
160470-438 CAP, GAS TANK (INC. 17)CAP, GAS TANK (INC. 17)
-
170109-733 ...GASKET, GAS TANK CAP...GASKET, GAS TANK CAP
-
188060-628 RIVETRIVET
-
190670-304 PLATE, RETAININGPLATE, RETAINING
-
200123-802 WASHERWASHER
-
210470-970 NECK, FILLNECK, FILL
-
220624-390 CLAMP, HOSECLAMP, HOSE
-
230410-231 HOSE, GASLINEHOSE, GASLINE
-
248408-825 SCREW, CAPSCREW, CAP
-
250570-352 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
260570-371 BRACKET, GAS TANKBRACKET, GAS TANK
-
278427-805 NUT, LOCKNUT, LOCK
-
288477-616 SCREW, MACHINESCREW, MACHINE
-
298427-602 NUT, LOCKNUT, LOCK
-
308060-602 RIVETRIVET
-
310412-632 SHIELD, HEAT - UPPERSHIELD, HEAT - UPPER
-
320412-633 SHIELD, HEAT - LOWERSHIELD, HEAT - LOWER
-
330623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
