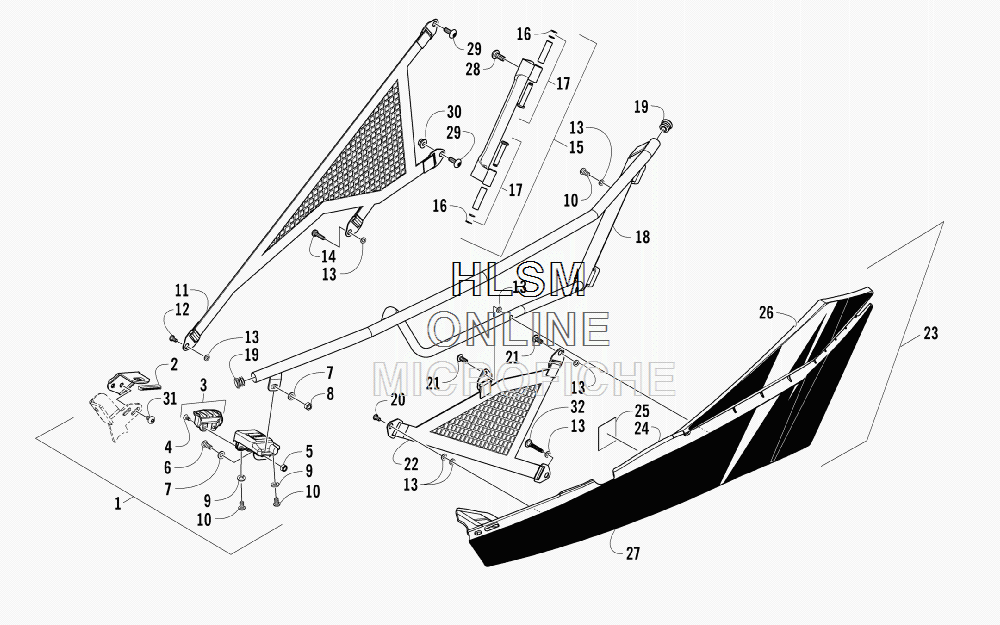

FRONT DOOR ASSEMBLY для Arctic Cat Wildcat 4 1000 - BLACK [U2013W4W1PUSQ] - 2013 года выпуска
-
№АртикулНазвание
-
11436-800 LATCH, DOOR - RIGHT ASSEMBLY (INC. 2-10)LATCH, DOOR - RIGHT ASSEMBLY (INC. 2-10)
-
11436-801 LATCH, DOOR - LEFT ASSEMBLY (INC. 2-10)LATCH, DOOR - LEFT ASSEMBLY (INC. 2-10)
-
24406-262 ...GROMMET...GROMMET
-
31436-475 ...GUIDE, DOOR LATCH - ASSEMBLY (INC. 4-5)...GUIDE, DOOR LATCH - ASSEMBLY (INC. 4-5)
-
41423-155 ......SCREW, MACHINE......SCREW, MACHINE
-
51423-154 ......NUT, LOCK......NUT, LOCK
-
68468-616 ...SCREW, MACHINE...SCREW, MACHINE
-
71423-119 ...WASHER...WASHER
-
81423-153 ...NUT, LOCK...NUT, LOCK
-
98051-213 ...WASHER, LOCK...WASHER, LOCK
-
101423-113 ...SCREW, MACHINE...SCREW, MACHINE
-
114406-304 NET, RESTRAINT - UPPERNET, RESTRAINT - UPPER
-
121423-206 SCREW, SHOULDERSCREW, SHOULDER
-
138050-223 WASHERWASHER
-
141423-186 SCREW, SHOULDERSCREW, SHOULDER
-
151436-476 HINGE, DOOR - RIGHT ASSEMBLY (INC. 16-17)HINGE, DOOR - RIGHT ASSEMBLY (INC. 16-17)
-
151436-454 HINGE, DOOR - LEFT ASSEMBLY (INC. 16-17)HINGE, DOOR - LEFT ASSEMBLY (INC. 16-17)
-
161423-118 ...CIRCLIP...CIRCLIP
-
170518-096 ...KIT, HINGE PIN...KIT, HINGE PIN
-
185506-174 FRAME, DOOR - RIGHTFRAME, DOOR - RIGHT
-
185506-175 FRAME, DOOR - LEFTFRAME, DOOR - LEFT
-
194406-013 PLUG, HOLEPLUG, HOLE
-
201423-196 SCREW, SHOULDERSCREW, SHOULDER
-
211423-197 SCREW, SHOULDERSCREW, SHOULDER
-
224406-305 NET, RESTRAINT - LOWERNET, RESTRAINT - LOWER
-
230518-060 DOOR W/DECALS - RIGHT- BLACK (INC. 24 AND 26-27)DOOR W/DECALS - RIGHT- BLACK (INC. 24 AND 26-27)
-
230518-083 DOOR W/DECALS - LEFT - BLACK (INC. 24-27)DOOR W/DECALS - LEFT - BLACK (INC. 24-27)
-
244406-246 ...DOOR W/O DECALS - RIGHT - BLACK...DOOR W/O DECALS - RIGHT - BLACK
-
240518-061 ...DOOR W/O DECALS - LEFT - BLACK (INC. 25)...DOOR W/O DECALS - LEFT - BLACK (INC. 25)
-
253411-249 ......DECAL, WARNING - TIRE PRESSURE......DECAL, WARNING - TIRE PRESSURE
-
263411-304 ...DECAL, DOOR - UPPER RIGHT - BLACK...DECAL, DOOR - UPPER RIGHT - BLACK
-
263411-305 ...DECAL, DOOR - UPPER LEFT - BLACK...DECAL, DOOR - UPPER LEFT - BLACK
-
273411-306 ...DECAL, DOOR - LOWER RIGHT - BLACK...DECAL, DOOR - LOWER RIGHT - BLACK
-
273411-307 ...DECAL, DOOR - LOWER LEFT - BLACK...DECAL, DOOR - LOWER LEFT - BLACK
-
280423-817 SCREW, MACHINESCREW, MACHINE
-
290423-355 SCREW, SHOULDERSCREW, SHOULDER
-
308427-602 NUT, LOCKNUT, LOCK
-
310826-029 SCREW, MACHINESCREW, MACHINE
-
321423-205 SCREW, SHOULDERSCREW, SHOULDER
