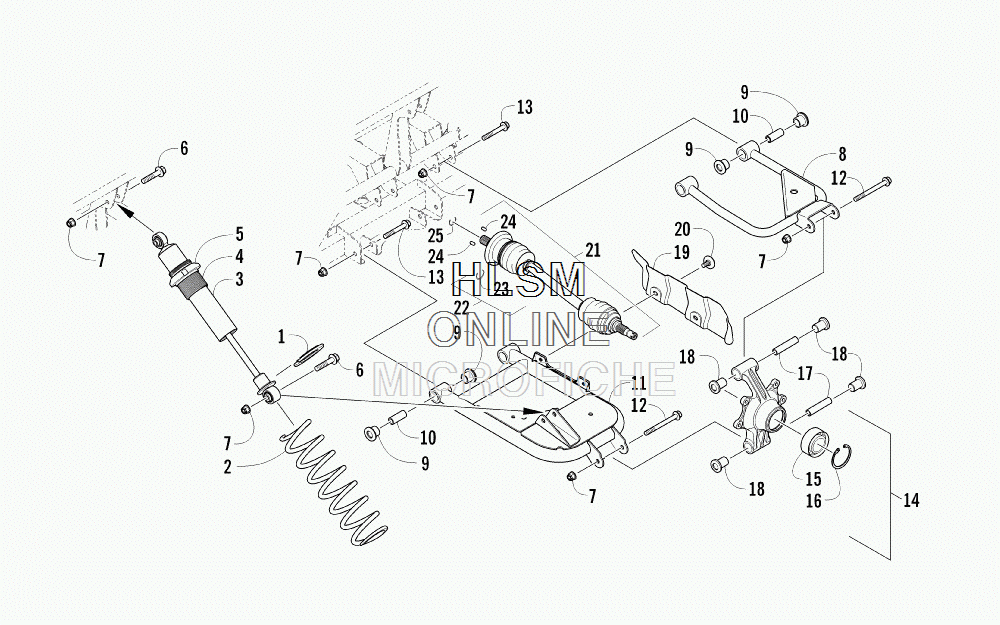

REAR SUSPENSION ASSEMBLY для Arctic Cat PROWLER 1000 XTZ 4X4 [U2014P4W1POSE] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
10423-920 RETAINER, SPRINGRETAINER, SPRING
-
20504-629 SPRING, SUSPENSION - WHITESPRING, SUSPENSION - WHITE
-
30404-182 SHOCK ABSORBER (INC. 4)SHOCK ABSORBER (INC. 4)
-
40423-917 ...SLEEVE, SHOCK - THREADED...SLEEVE, SHOCK - THREADED
-
50423-919 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
68409-060 SCREW, CAPSCREW, CAP
-
78428-002 NUT, LOCKNUT, LOCK
-
80504-730 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 9-10)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 9-10)
-
80504-731 A-ARM, REAR - UPPER LEFT - BLACK (INC. 9-10)A-ARM, REAR - UPPER LEFT - BLACK (INC. 9-10)
-
90403-208 ...BUSHING...BUSHING
-
100403-214 ...AXLE...AXLE
-
110504-592 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 9-10)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 9-10)
-
110504-593 A-ARM, REAR - LOWER LEFT - BLACK (INC. 9-10)A-ARM, REAR - LOWER LEFT - BLACK (INC. 9-10)
-
128409-000 SCREW, CAPSCREW, CAP
-
138409-075 SCREW, CAPSCREW, CAP
-
140504-613 KNUCKLE, REAR - ASSEMBLY (INC. 15-18)KNUCKLE, REAR - ASSEMBLY (INC. 15-18)
-
151402-809 ...BEARING...BEARING
-
160423-423 ...RING, RETAINING...RING, RETAINING
-
170403-213 ...AXLE...AXLE
-
180403-206 ...BUSHING...BUSHING
-
191406-068 GUARD, BOOT - RIGHT - BLACKGUARD, BOOT - RIGHT - BLACK
-
191406-069 GUARD, BOOT - LEFT - BLACKGUARD, BOOT - LEFT - BLACK
-
200423-545 SCREW, SHOULDERSCREW, SHOULDER
-
211502-801 AXLE, DRIVE (INC. 22-25)AXLE, DRIVE (INC. 22-25)
-
221436-419 ...REPAIR KIT, BOOT (INC. 23)...REPAIR KIT, BOOT (INC. 23)
-
231441-988 ......CLIP, RETAINING......CLIP, RETAINING
-
241402-884 ...PIN, DETENT...PIN, DETENT
-
251402-890 ...CLIP, RETAINING...CLIP, RETAINING
