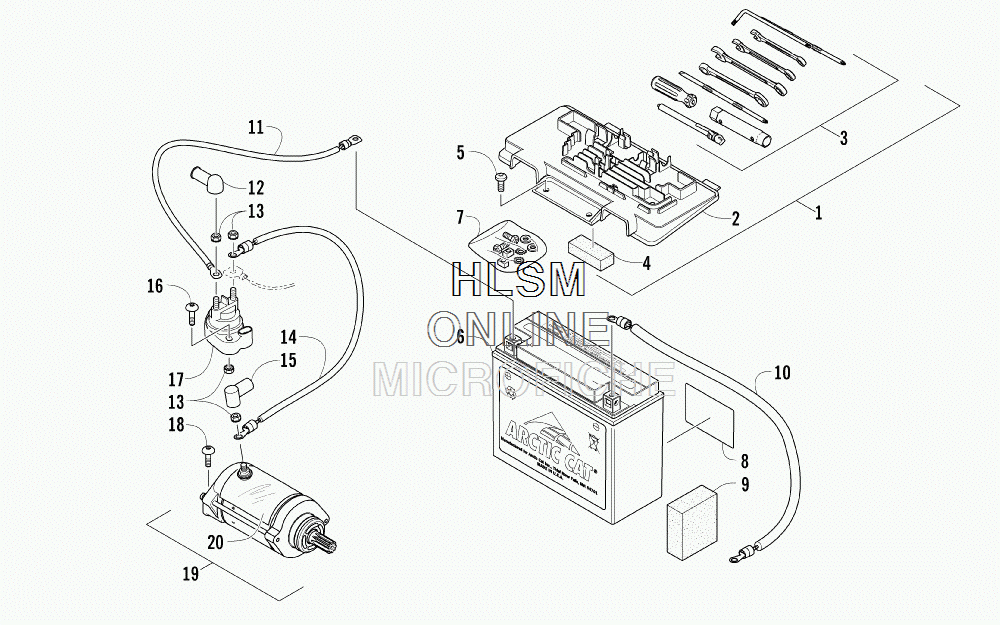

BATTERY AND STARTER ASSEMBLY для Arctic Cat TRV 1000 EFT 4X4 BLUE [A2014TGW1PETL] - 2014 года выпуска
-
№АртикулНазвание
-
15993-040 BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)
-
24406-136 ...COVER, BATTERY...COVER, BATTERY
-
30444-122 ...KIT, TOOL...KIT, TOOL
-
40417-016 ...PAD, BATTERY...PAD, BATTERY
-
58476-620 SCREW, MACHINESCREW, MACHINE
-
60645-480 BATTERY ASSEMBLY (INC. 7-8)BATTERY ASSEMBLY (INC. 7-8)
-
70445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
80645-430 ...DECAL, WARNING...DECAL, WARNING
-
90417-017 FOAM, BATTERYFOAM, BATTERY
-
100445-063 CABLE, BATTERY/GROUND (BLACK)CABLE, BATTERY/GROUND (BLACK)
-
110445-062 CABLE, BATTERY/SOLENIOD (RED)CABLE, BATTERY/SOLENIOD (RED)
-
120645-327 BOOT, TERMINALBOOT, TERMINAL
-
130623-038 NUT W/WASHERNUT W/WASHER
-
140445-066 CABLE, SOLENOID/STARTER (INC. 15)CABLE, SOLENOID/STARTER (INC. 15)
-
150645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
168476-630 SCREW, MACHINESCREW, MACHINE
-
170445-058 SOLENOIDSOLENOID
-
188476-625 SCREW, MACHINESCREW, MACHINE
-
190825-027 MOTOR, STARTER - ASSEMBLY (INC. 20)MOTOR, STARTER - ASSEMBLY (INC. 20)
-
200412-677 ...SHIELD, HEAT - STARTER...SHIELD, HEAT - STARTER
