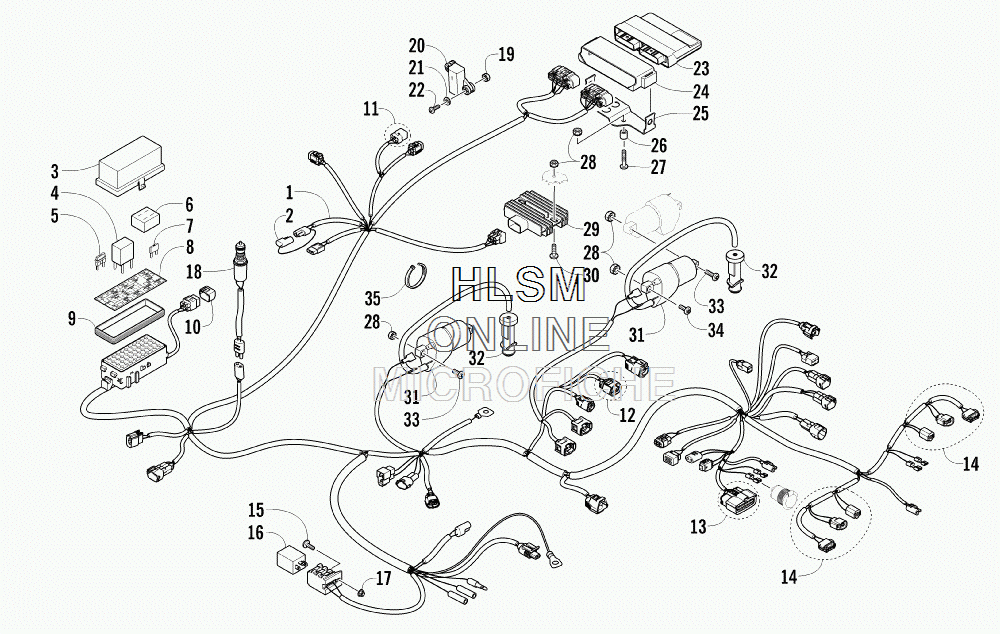

WIRING HARNESS ASSEMBLY для Arctic Cat TRV 1000 EFT 4X4 BLUE [A2014TGW1PETL] - 2014 года выпуска
-
№АртикулНазвание
-
10486-404 HARNESS, MAIN (INC. 2-10)HARNESS, MAIN (INC. 2-10)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
50430-034 ...DIODE...DIODE
-
60430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
70430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
70430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
70430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
82411-213 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
90430-086 ...SEAL...SEAL
-
100430-097 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
111436-416 REPAIR KIT, CONNECTOR - TILT SENSORREPAIR KIT, CONNECTOR - TILT SENSOR
-
121436-417 REPAIR KIT, CONNECTOR - IDLE SPEED CONTROLREPAIR KIT, CONNECTOR - IDLE SPEED CONTROL
-
131436-415 REPAIR KIT, CONNECTOR - LCD GAUGEREPAIR KIT, CONNECTOR - LCD GAUGE
-
141436-424 REPAIR KIT, CONNECTOR - HEADLIGHT/TURN SIGNAL/POSITIONREPAIR KIT, CONNECTOR - HEADLIGHT/TURN SIGNAL/POSITION
-
158476-516 SCREW, MACHINESCREW, MACHINE
-
160430-049 CONTROL, TURN SIGNALCONTROL, TURN SIGNAL
-
178427-502 NUT, LOCKNUT, LOCK
-
180409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
190423-493 NUT W/WASHERNUT W/WASHER
-
200409-064 SENSOR, TILTSENSOR, TILT
-
210123-802 WASHERWASHER
-
228468-425 SCREW, MACHINESCREW, MACHINE
-
230530-034 ECMECM
-
240430-059 CUSHION, ECMCUSHION, ECM
-
252406-728 BRACKET, MOUNTING - ECMBRACKET, MOUNTING - ECM
-
260423-036 SPACERSPACER
-
278477-635 SCREW, MACHINESCREW, MACHINE
-
280623-038 NUT W/WASHERNUT W/WASHER
-
290824-037 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
308476-625 SCREW, MACHINESCREW, MACHINE
-
310824-043 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
320824-049 CAP, SPARK PLUGCAP, SPARK PLUG
-
338476-620 SCREW, MACHINESCREW, MACHINE
-
348476-630 SCREW, MACHINESCREW, MACHINE
-
350123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
350123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
